A single camera gear’ enough to put the audience into the heart of the action!
A shoulder rig becomes invaluable equipment when you want to put the audience into the heart of the action. It lets you move with the subject matter while keeping the camera stable, thus increasing the efficiency of the production.
To achieve this, you need a shoulder rig that
- Is compatible with your camera - Have both modes – offset & straight - Has rail system for mounting accessories - Is lightweight & counter-balanced - Doesn’t take too much of your budget
Years of experience in this field led to the creation of an FC-02 shoulder rig, which successfully meets the above criteria, & is being used by thousands of camera operators worldwide for the past many years.
Various components that come together to fulfill all the criteria of a good shoulder rig!
"WHAT YOU SEE IS WHAT YOU GET" (Revised on 23-Dec-2019)

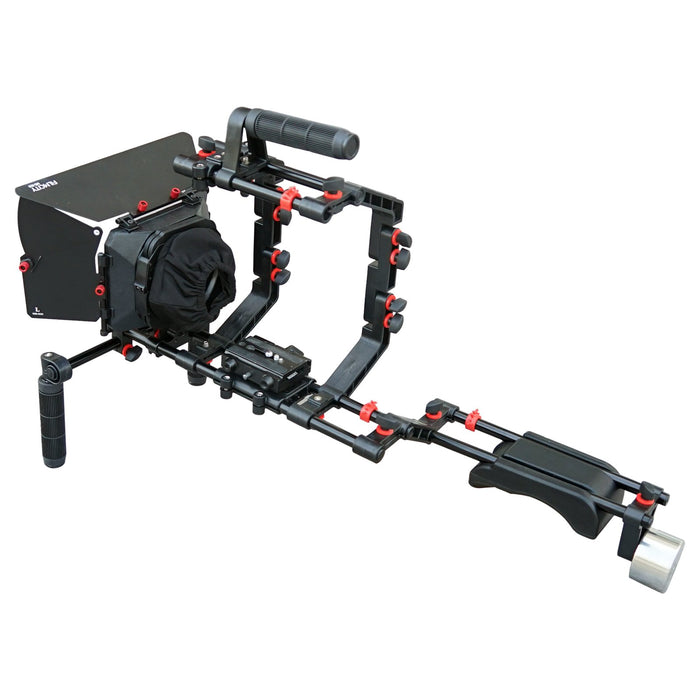

Shoulder Rig
An Offset Shoulder Rig that Guarantees Stability, Comfort, Perfect Balance & Refined Quality.
Handles Adjustable rubber grip handles for a stable hold on the rig.
Quick Release (Revised on 23-Dec-2019) Enables quick mounting & dismounting of the camera.
Shoulder Support Pad Snug fit soft shoulder pad reduces strain on shoulders.
2lb Counter Weight Balances the rig & takes the strain off your arms.
Straight Bracket Straight bracket compatible with 15mm rails allows you to center align the camera for better eye line contact with your camera’s LCD.
Matte Box
MB-600 matte box is designed for all cameras with normal and wide-angle lenses up to 95mm diameter. It functions as a lens hood which eliminates unwanted lens glares.
French & Side Flags Provide extra protection from direct light.
4x4” Rotating Filter Holders For polarized & combination of square filters.
Knicker Wraps around the barrel of your lense to block out any light completely.
Metal Front Adjuster For adjusting the height up to 1.5 inches.
4:3 & 16:9 aspect ratios Enable to use with both normal & wide angle lenses.
9” to 6” Convertible Cage Brackets
The cage is constructed from high-grade polyamide resin which is robust yet lightweight. It provides a solid base & support to your camera.
Top Handle Soft grip top handle for taking low mode shots.
Accessory Mounting threads To accessorize your kit.
Convertible Cage Bracket 9” to 6” conversion accommodates all cameras sizes.
Swing Away Mechanism You can switch camera without dismantling the kit.
The Supportive accessories are for demonstration purpose only.
Specifications
- Material - Polyamide resin - Center to Center span of 60mm - 15mm Rod diameter - Shoulder Support constructed from industrial grade High- impact, High-strength Polyamide resin - Adjustable comfort shoulder support pad of energy absorbing, pliable rubber - Soft grip rubber handles for reduced stress - Quick Release Plate - Standard camera mount thread setting of ¼" - 20 - ¼" - 20 for Tripod Mounting
Included
- Shoulder Rig for DSLR - 2 x 300mm Female threaded Rods - 1 x 300mm Learning Threaded Rod - 2 x 300mm Male threaded Rods - 2 x 200mm Female threaded Rods - 2 x 150mm Male threaded Rods - 2 x 100mm Male threaded Rods - 2 x Accessory Mounting Adapter - MB-600 Matte Box (P-MB-600) - 2 x 9" Cage Brackets - Junction Rod Adapter - FREE Z-Bracket - FREE 3x Wire organizer Clamp - Tripod Mounting Plate( Added on 31-Jan-2017)
Question asked: Does this fit black magic Ursa mini pro 4.6k G1 ?
Does this fit black magic Ursa mini pro 4.6k G1 ?
Answers
19-12-2022
Filmcity FC-02 Shoulder Rig Kit with Matte Box has Universal camera mounting compatibility with a Matte box with a compatible camera lens up to 95mm.
Admin A. Admin 09-10-2021
Question asked: Can this rig be attached to a tripod?
Can this rig be attached to a tripod?
Answers
09-10-2021
Yes, this rig can be attached to a tripod. Using the provided Tripod Mounting Plate.
Admin A. Admin 09-10-2021
Question asked: will this rig fit nikon d5100?
will this rig fit nikon d5100?
Answers
09-10-2021
Yes, this rig will fit to Nikon d5100 camera.
Admin A. Admin 09-10-2021
Question asked: Does this actually come with the follow focus? In the main picture it doesn't show it, yet in other pictures it does.
Does this actually come with the follow focus? In the main picture it doesn't show it, yet in other pictures it does.
Answers
09-10-2021
No, the follow focus is not included with this kit. We have the other model of this rig i.e. Filmcity FC-03 shoulder rig kit which includes a Follow Focus. Here is the link for your reference : Filmcity DSLR Camera Cage Shoulder Rig Kit
Admin A. Admin 09-10-2021
Question asked: Does the matte box move higher to lower or from left to right?
Does the matte box move higher to lower or from left to right?
Answers
09-10-2021
The matte box can only move higher to lower but not from left to right.
Admin A. Admin 09-10-2021
Question asked: Can you add a monitor with the camera on the rig?
Can you add a monitor with the camera on the rig?
Answers
09-10-2021
Yes, you can attach the LCD monitor with the cage bracket or to the 15mm rods though lcd mounting arm.
Admin A. Admin 09-10-2021
Question asked: Does this have a detachable shoulder mount?
Does this have a detachable shoulder mount?
Answers
09-10-2021
Yes, the shoulder mount as well as the other parts of this kit are detachable and you can assemble and use it as per your requirement.
Admin A. Admin 09-10-2021
Question asked: Can I somehow lower the matte box to accommodate my Sony a7? Or do I need a riser?
Can I somehow lower the matte box to accommodate my Sony a7? Or do I need a riser?
Answers
09-10-2021
Yes, the height of the mattebox can be adjusted up and down.
Admin A. Admin 09-10-2021
Question asked: Will this work with a Canon T4i?
Will this work with a Canon T4i?
Answers
09-10-2021
Yes, it will work with Canon T4i camera
Admin A. Admin 09-10-2021
Question asked: Hi, what is the maximum size lens diameter that can be used with this matte box?
Hi, what is the maximum size lens diameter that can be used with this matte box?
Answers
09-10-2021
The outer diameter of this matte box is 95 mm, so you can use the lens according to the outer diameter of the matte box.
Admin A. Admin 09-10-2021
Question asked: What is the maximum lens dia, the knickers will fit to?
What is the maximum lens dia, the knickers will fit to?
Answers
09-10-2021
The knickers will fit to the lenses upto 95mm diameter.
Admin A. Admin 09-10-2021
Question asked: Will matte box work with 5d/7d with battery grip?
Will matte box work with 5d/7d with battery grip?
Answers
09-10-2021
This mattebox cannot be used with Canon 5d/7d with battery grip as such but we have the option of height riser in case required.
Admin A. Admin 09-10-2021
Question asked: What is the frame size of matte box?
What is the frame size of matte box?
Answers
09-10-2021
We provide two aspect ratio masks with the mattebox i.e. 4:3 and 16:9.
Admin A. Admin 09-10-2021
Question asked: What is the material of matte box?
What is the material of matte box?
Answers
09-10-2021
The mattebox hood is made up of strong plastic. Flags & height adjuster are aluminum made and knicker is fabric.
Admin A. Admin 09-10-2021
Question asked: Which filters I can use with it?
Which filters I can use with it?
Answers
09-10-2021
You can use 4x4†filters with this mattebox.
Admin A. Admin 09-10-2021
Question asked: Are the filter trays rotating?
Are the filter trays rotating?
Answers
09-10-2021
Yes both filter trays are rotatable at 360 degree.
Admin A. Admin 09-10-2021
Question asked: What is the warranty?
What is the warranty?
Answers
09-10-2021
We provide 1 year warranty from the date of purchase. Items which are covered by the warranty period will be replaced at no cost to the customer. Replacement parts of the product will be provided at nominal cost (covering the cost price of the replacement parts only) to the customers after the Warranty Period has expired.
