01.
PROAIM UNIVERSAL BASE PLATE

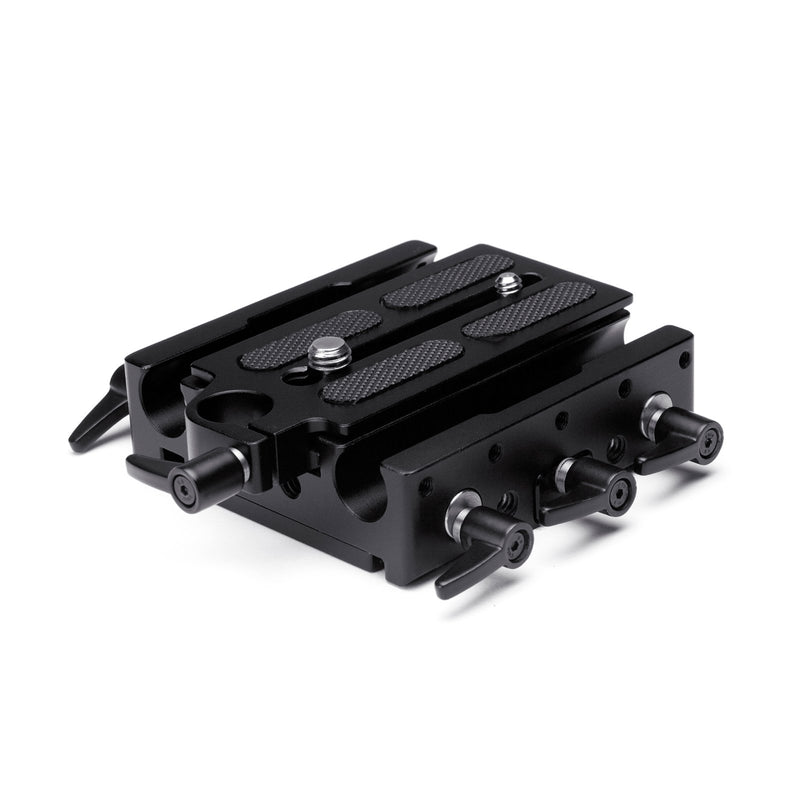

Proaim Universal Baseplate is a quick release baseplate that provides lightweight 15mm rod support at the correct lens height. It includes the Core Unit, a Lower Quick Dovetail tripod plate on the bottom, and a Universal Dovetail Camera Plate.
Proaim 15mm Universal Quick Release Camera Baseplate with Dovetail
02.
CONVENIENCE
The baseplate quick releases in two ways giving the user the option to take off the entire setup along with the 15mm lightweight rods, or to just take the Camera leaving the rods behind.

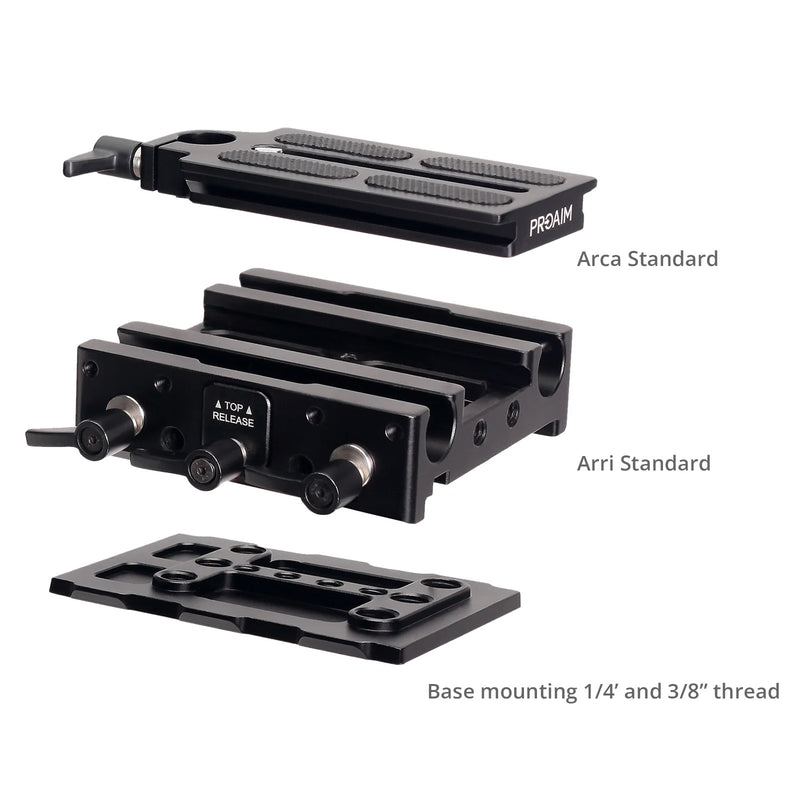

You can remove the Dovetail Camera Plate only and leave the Core Unit with your rod pair behind, or you can remove the Core Unit from the Lower Quick Dovetail, in which case you'll have a dovetail on the bottom of the Core Unit that's compatible with any Arri Standard Dovetail, or Shoulder Rig.
03.
ARCA SWISS STANDARD
The Camera Plate has an ARCA Swiss standard dovetail - compatible with many third-party products. It has 1/4"-20 threaded holes on the bottom for attaching to gimbals or other compatible tripod plates.
04.
DOVETAIL TRIPOD PLATE
The Lower Quick Release Dovetail has 1/4"-20 and 3/8"-16 threaded holes for attaching to tripod plates or ARRI standard bridge plates, such as the Proaim 15mm Baseplate or Proaim 19mm Baseplate
It allows quick and easy switching between different camera setups.
SPECIFICATIONS
Construction
High-grade CNC Aluminum
Rods Compatibility
15mm
Weight (without packing)
430gram
Dimensions
IN THE BOX
Universal Baseplate with Dovetail
1 x ¼”-20 low profile screws
1 x 3/8”-16 low profile screws
USER MANUAL
Guaranteed Fast Delivery |
Quick and Efficient |
Easy Returns |
1-Year Warranty |
Q&A
Ask a Question-
What\'s the distance between the center of the rails?
These are 15mm diameter rods symmetrical to the optical center of the lens spaced 60mm apart (when measured from center to center)
