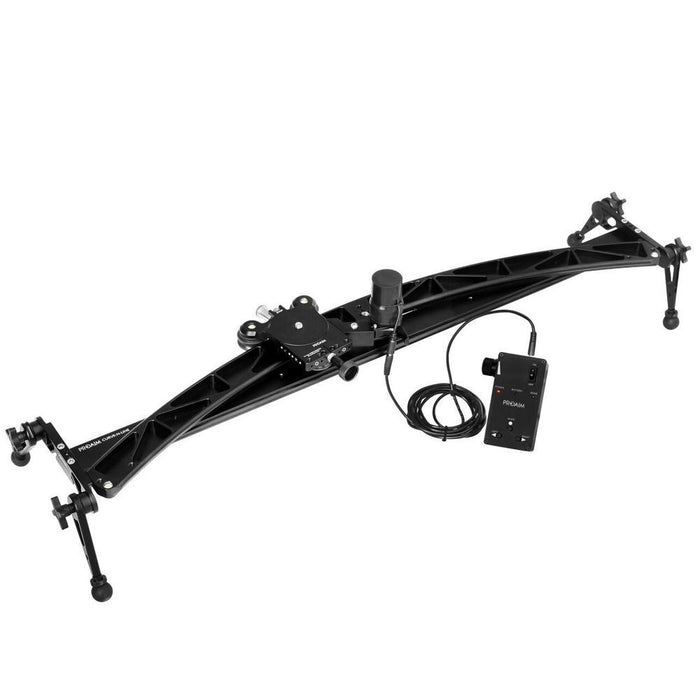

Proaim 3ft Curve-N-Line Video Camera Slider with Motion Control System

Proaim launches its new ready-to-run travel & adventure package, curve-N Line Slider with motion control system. This dual action slider is a combination of both straight and curved tracks into a single slider body. This dual-action design lets you take traditional camera slider moves along with dynamic parabolic moves simply by flipping the slider This versatile & compact system lets you create dynamic video. The Motion control system centers around the powerful motor, which proves smooth or incremental movements, and works with most DLSR, mirrorless, and digital cinema cameras. With the controller, you can program precise camera movements for interviews, establishing shots, and other camera movements.

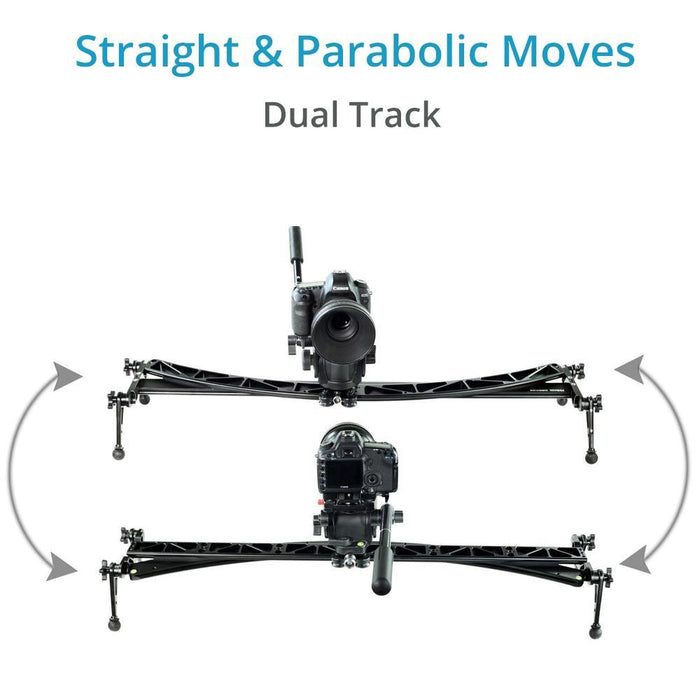

NO HASSLE OF BRINGING TWO SLIDERS ON-SET
STRAIGHT AND CURVED TRACK IN 1 SLIDER

"WHAT YOU SEE IS WHAT YOU GET"

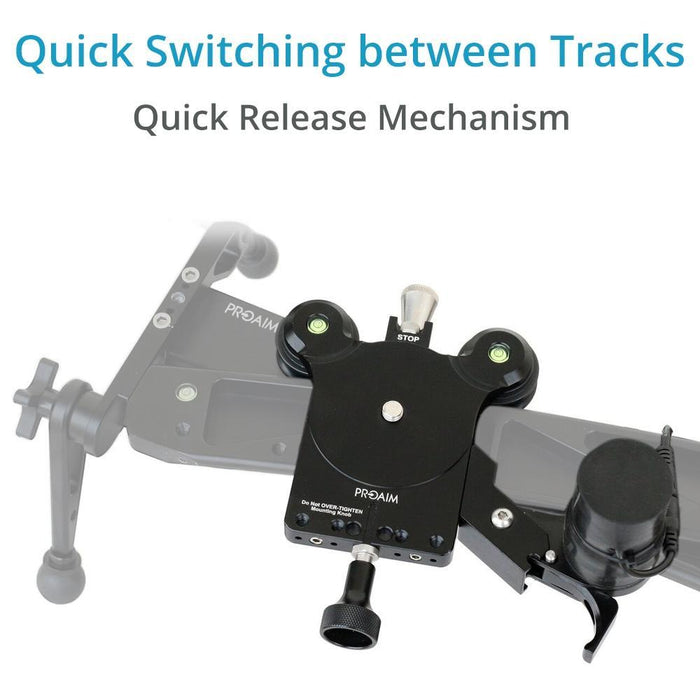

FAST QUICK RELEASE CONNECTIVITY
Robust quick release plate gets connected to straight and curved tracks of slider quickly without removing the end feet.

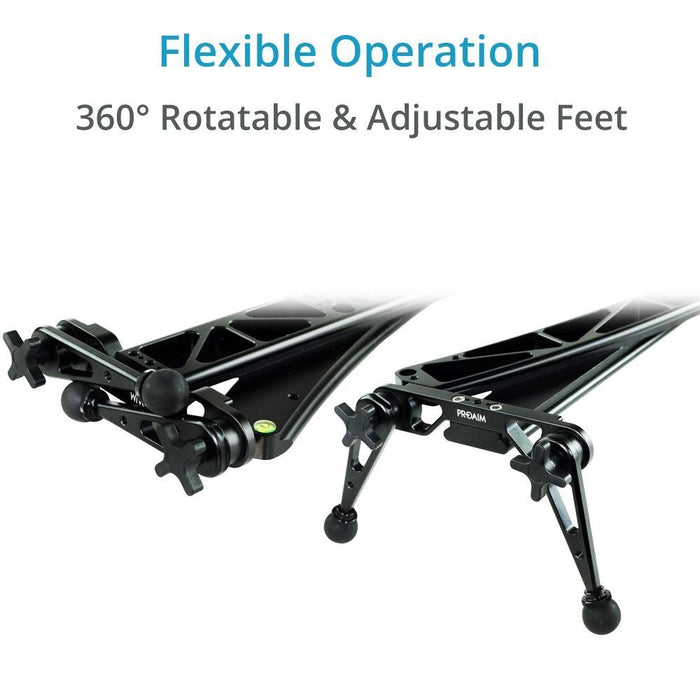

FOLDABLE AND REMOVABLE LEGS
360 degree rotation of feet with fine adjustability ensures quick flipping of slider and makes it a breeze to travel with

MOTION CONTROL SYSTEM
Motion control system specially designed for Curve & line slider. This versatile & compact system when added to the slider lets you create dynamic video and photography sequences with fluid motorized slides.

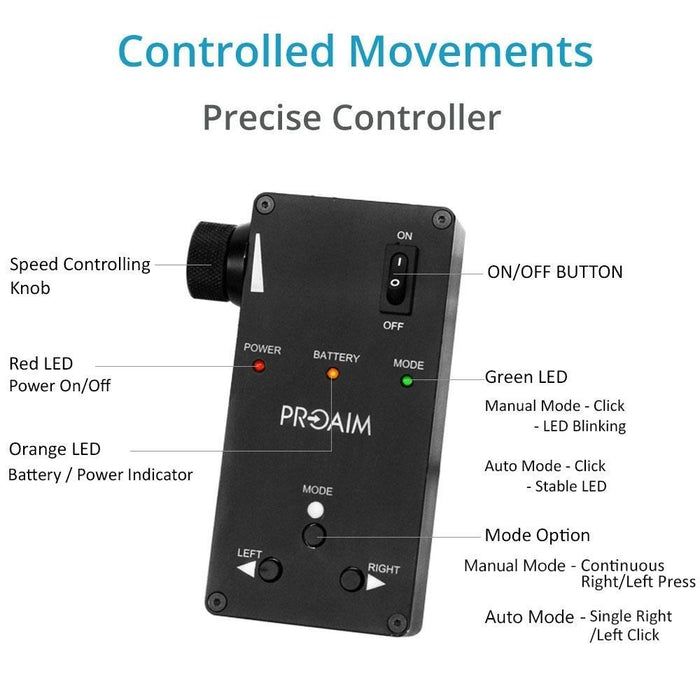

PRECISE CONTROLLER
Complete control over movement
With the controller, you can program precise camera movements for interviews, establishing shots, and other camera movements.

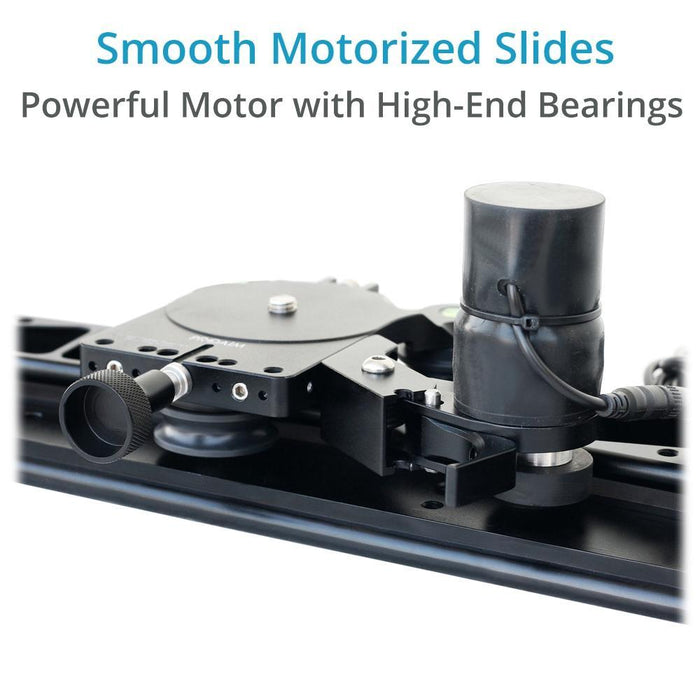

POWERFUL MOTOR & HIGH END BEARINGS
Using high end sealed bearings, carriage glides effortlessly for extra smooth shots & Powerful motor proves smooth or incremental movements, and works with most DLSR, mirrorless, and digital cinema cameras.

(Added on 7-Nov-17)

IMAGE GALLERY

The Supportive accessories are for demonstration purpose only.

3ft CURVE-N-LINE SLIDER

- Weighing Capacity on Ground: 25kg/55 lb
- Length: 3ft
- Product Weight: 2.350kg/5.17lb
- Outer radius of curve slider: 38.32 inches
- Inner radius of curve slider: 36.33 inches
- Travel angle: 58 degree
- Folded Height: 1.5 inches
- Construction: High-Grade Aluminum
- Tripod Mounting Threads: 1/4"-20 & 3/8"-16
- Camera Mounting Screws: 1/4"-20 & 3/8"-16

MOTION CONTROL SYSTEM

- Load Capacity : 11 lb/ 5kg
- Product Weight : 3.5lb/1.60g
- Max Speed Travel: 18 sec
- Min Speed Travel: 3.75 Min
- Noise level of Motor is: <40dB
- Construction : Aluminum
- Geared Motor (Made in Taiwan) 30RPM 12V
- Battery Input Power: 7.2-12V DC

- Proaim 3ft Curve-N-Line Camera Video Slider
- Proaim Motion Control System (P-MC-CNL)
- 12v Adapter (Added on 7-Nov-17)
- Storage Case

Q: Which camera will it work with?
Ans:It will work with all cameras as per weighing capacity according to the specific length of the slider.

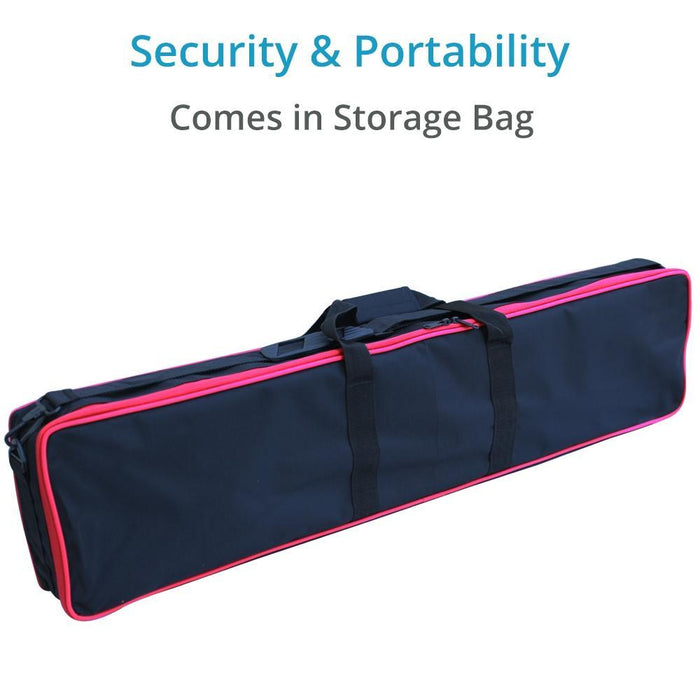

Q: Does it come in carry case?
Ans: Yes, the complete components of this slider are packed in a foam packing bag for safe storage.

Q: What are the bearings made of? Does it create sound during sliding?
Ans: This slider has 4 high-end sealed bearings that allow smooth movement without any sound.

Q: Does it come with lock for sliding?
Ans: Yes, this slider comes with strong carriage brake to lock the carriage in any place on the rails for static shots.

Q: Will a fluid head fit on it?
Ans: Yes, the fluid head can be attached to the slider if the fluid head has ¼” or 3/8” mounting thread size. It will not fit on bowl heads.

Q: Are the legs adjustable?
Ans. Yes, the legs are adjustable and you can easily use it on uneven surface.

Q: What is the voltage of the motor?
Ans: The voltage is 12V.

Q : Which motor is used in this slider?
Ans: The motor used is 12V geared motor.

Q: How long is the cable comes with motion control system?
Ans: We provide 3 meter long cable with this motion control system.

Q : Does it include battery for motion control system?
Ans : No it doesn’t include battery. You can purchase 12V battery for using it in motion system.

Q: What is the weighing capacity on Tripod?
Ans : The weighing capacity of this slider is same on Floor and on Tripod i.e.

Note: The weight capacity depends upon the tripod you are using with this slider as it may vary according to the carrying capacity of the tripod itself.

Q: What is travel distance?
Ans : The travel distance is as follows :

Proaim 2ft Curve-N-Line Camera Slider : 19.5inches
Proaim 3ft Curve-N-Line Camera Slider : 31.5inches
Proaim 4ft Curve-N-Line Camera Slider : 43inches

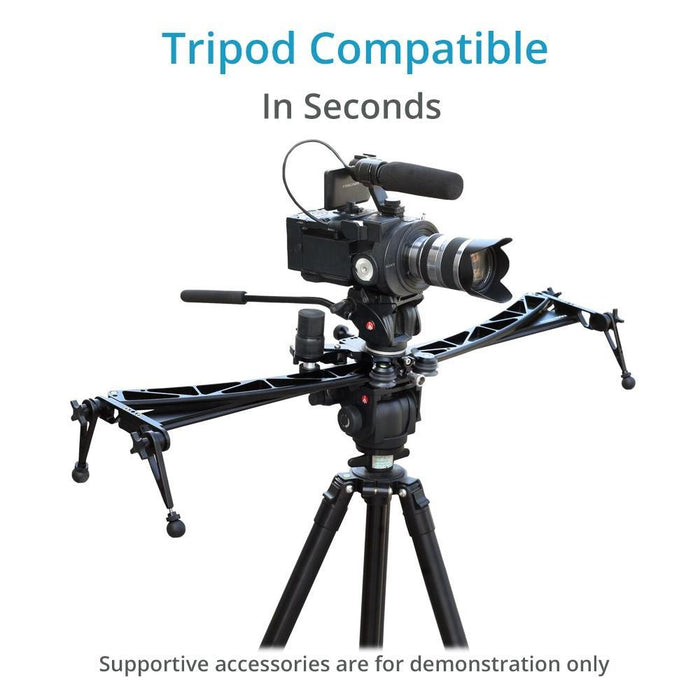

Q: Will it mount on two tripods?
Ans: Yes, you can mount this slider on two tripods if using heavier cameras.

Q : Does it come fully assembled?
Ans: Yes, it comes fully assembled. You just have to mount a camera on it and it is ready to use.

Q: Is it easy and light weight to carry?
Ans: Yes, it is lightweight and easy to carry around.

Q : Is it returnable for a full refund if it doesn’t meet my expectations upon delivery?
Ans : Yes, absolutely. We always backup our sales. In case, you don't like the product, we take it back within 14 days and you get a 100% refund.

Q : What is the warranty?
Ans : We provide 1 year warranty from the date of purchase. Items which are covered by the warranty period will be replaced at no cost to the customer. Replacement parts of the product will be provided at nominal cost (covering the cost price of the replacement parts only) to the customers after the Warranty Period has expired.
