Filmcity MB-7 Professional Swing Away Wide Angle Matte Box

Sold out
Rs. 25,942.00

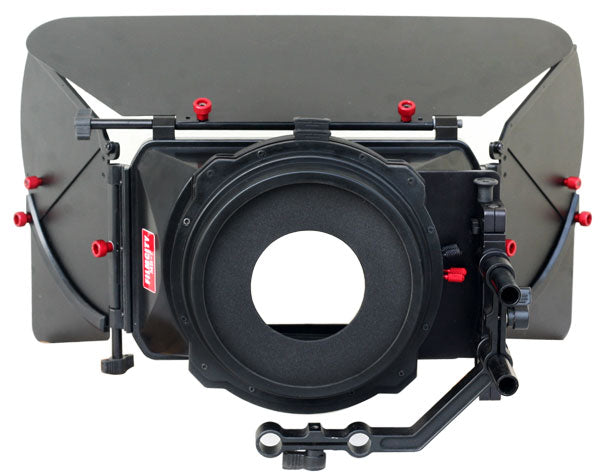

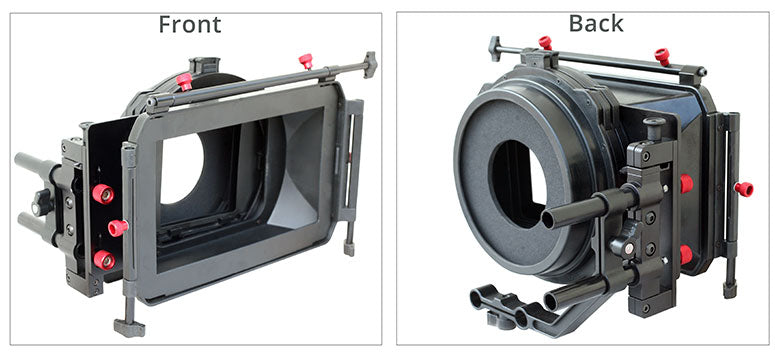

Masterfully engineered Matte Box MB-7 with full swing-away feature and french flag enables the user to get cinematic effects. It is completely adjustable and can be altered according to the requirement. Compatible enough to go with any other accessory. A masterpiece with quality worked upon is a perfect companion for your kit.

Professional Matte Box


camtree logo
camcorder matte box

Camera Sunhood

Sunshade mattebox


For Cage Shoulder Mount Kit

The Supportive accessories are for demonstration purpose only.




 Sunshade : polyamide Resin
Flags, Swing away bracket : aluminum

 Matte box Outer Diameter


 Matte box Dimensions

 265x165x125mm (l x w x h)



 Aspect Ratio


 Height Adjustment


 Filter Holders Mask

 4x4" with Mask.
4"x5.65" without Mask

 Filter Holder Rotation

 Both 360degree rotation

 Top Flag Dimensions

142mm (width)

 Side Flag Dimensions

235mm (Open)

 Weight of Product (without packing)

 1kg (2.2 lbs)

MB-7 Swing away Matte Box
-1 x French flag
-2 x Side flags
-2 x Filter Holders
-2 x Converter Plate
-1 x Swing away bracket
-5 x Donut Rings


Q. What is the outer diameter of matte box ?
Ans : The outer diameter of the matte box is 138mm.

Q. Which lenses it will work with ?
Ans : It will work with all photo & cinema standard and wide angle lenses.

Q. Will it work with gh4 camera ?
Ans : Yes, this matte box will work with GH4 camera with any photo & cinema standard and wide angle lenses.

Q. Will it work with Sigma 18-50mm f/2.8 and Canon EF-S 18-200mm lens ?
Ans : Yes, this matte box will work with Sigma 18-50mm f/2.8 lens.

Q. Will it work with Canon EF 70-200mm f/2.8L IS II USM Lens and Canon EF 11-24mm f/4L USM Lens ?
Ans : Yes, this matte box will work with Canon EF 70-200mm f/2.8L IS II USM Lens and Canon EF 11-24mm f/4L USM Lens.

Q. What is the maximum lens dia, the mattebox will fit to ?
Ans : The matte box will fit to the lenses with upto 138mm outer diameter.

Q. Will it work with 5d/7d with battery grip ?
Ans : This mattebox cannot be used with Canon 5d/7d with battery grip as such but we have the option of height riser incase required.

Q. What is the material of matte box ?
Ans : The mattebox hood is made up of Polyamide Resin. Flags & height adjuster are aluminum made and donuts are of foam.

Q. What are the dimensions of filter trays used in this matte box ?
Ans : This matte box includes two filter trays of 4” x 5.65”. We provide two masks of 4” x 4” to use these with filter trays in order to use the 4 x 4 filters with this matte box.

Q. Which filters I can use with it ?
Ans : You can use 4x5.65 as well as 4x4 filters with this mattebox.

Q. Are the filter trays rotating ?
Ans : Yes, both the filter trays are 360 degree rotatable.

Q. What is the dia of donut rings ?
We provide 5 donut rings with this Filmcity MB-7 matte box in dia 50mm, 65mm, 75mm, 100mm and one plain (without dia cutting) to cut and use according to your lens diameter.

Q. Is it returnable for a full refund if it doesn’t meet my expectations upon delivery ?
Ans : Yes, absolutely. We always backup our sales. In case, you don't like the product, we take it back within 14 days and you get a 100% refund.

Q. What is the warranty ?
Ans : We provide 1year warranty from the date of purchase. Items which are covered by the warranty period will be replaced at no cost to the customer. Replacement parts of the product will be provided at nominal cost (covering the cost price of the replacement parts only) to the customers after the Warranty Period has expired.
