Proaim 12" Dovetail Plate (ARRI Standard)

For Proaim 19-15mm Quick Release

Original price ₹ 7,475.00 - Original price ₹ 7,475.00
Original price
₹ 7,475.00
₹ 7,475.00 - ₹ 7,475.00
Current price ₹ 7,475.00
SKU : DP-12

Easy & Secure Solution To Rig Your Camera Set-Up!

01.

SOLID & SECURE

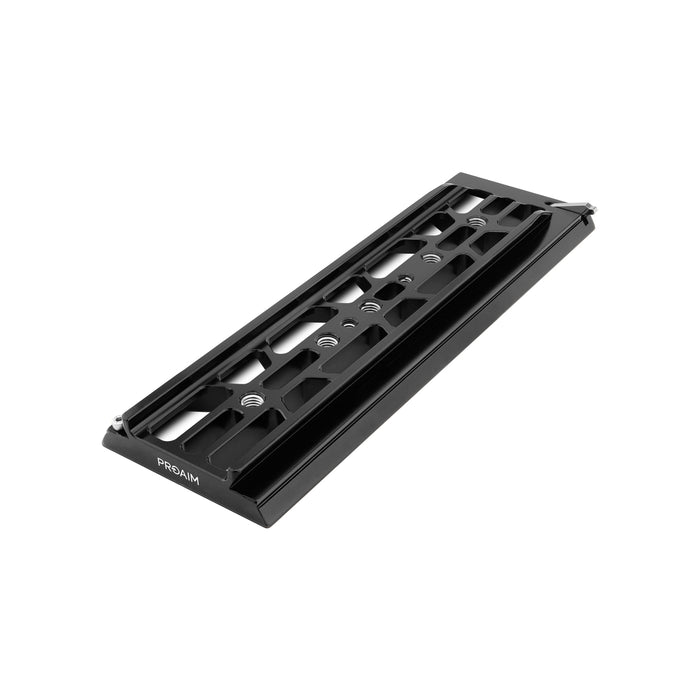

Proaim 12" Dovetail Plate (ARRI Standard) balances camera rigs and support accessories on your camera when used in conjunction with an ARRI standard quick release camera base plate.
It comes with a stopper screw on one end and safety catch on the other to keep your gear from slipping off the plate.
Machined with High-grade CNC Aluminum, it is solid yet lightweight.

Proaim 12
Proaim 12

02.

ADAPTABLE DESIGN
It has 3/8"-16 and 1/4"-20 threads for attaching to tripod plates & ARRI standard 19-15mm Baseplate.
The ARRI standard dovetail mounts directly onto the tripod and works best with heavy-duty tripod heads like O'Connor 2060, O'Connor2575, O'Connor120ex, Sachtler cine 30.

SPECIFICATIONS

Construction

  High-Grade CNC Aluminum

Plate type

  Arri Standard

Mounting

  1/4"‐20 and 3/8"‐16 Threads

Dimensions

Proaim 12

Product Weight (Without Packing)

  0.48kg / 1.05lb

Product Weight (With Packing)

  1.44kg / 3.17lb

Compatibility

  CAMTREE 19-15mm Camera Base Plate with Dovetail Tripod Plate (ARRI Standard)
  Proaim 19-15mm Camera Base Plate, ARRI Standard Dovetail Tripod Plate with New Quick   Lock
  Proaim 19mm Quick Release Camera Base Plate with Dovetail (ARRI Standard)
  Proaim 15mm Quick Release Camera Base Plate (ARRI Standard)
  Proaim 15mm Quick Release Camera Base Plate with Dovetail (ARRI Standard)

IN THE BOX

Proaim ARRI Standard 12" Dovetail Plate


delivery

Guaranteed Fast Delivery
For all orders

customer service

Quick and Efficient
Customer service

easy returns

Easy Returns
Up to 7 days

warranty

1-Year Warranty
On All Products





  • Does DP-12 fits the Zest post?

    Yes, the Proaim 12" Dovetail Plate (DP-12) can be attached with the Flycam Zest's Steadycam post with the help of camera bolt (3/8") on the camera plate. (ref: https://prnt.sc/zbd0ibjy1GoV )
