01.
PROFESSIONAL. STRONG. LIGHT. SMOOTH.
Proaim 18ft Camera Jib Arm is designed for videographers and filmmakers who need a lightweight and ultra-portable Crane system.
The Jib has many great features such as a two-arm design, camera mount tilt control, ribbed jib sections & monitor mounting - making it one of the most value for money jib.
It allows capturing smooth, dynamic sweeping pans and camera rise.
High strength Aluminum construction with unbeatable stability holds camera setups up to 8kg / 17.6lb.
Description
USER-FRIENDLY & AFFORDABLE JIB FOR INDOOR/OUTDOOR USE
High Build Quality. Simple yet Powerful.
02.
EASY & EXPERTLY CRAFTED JIB

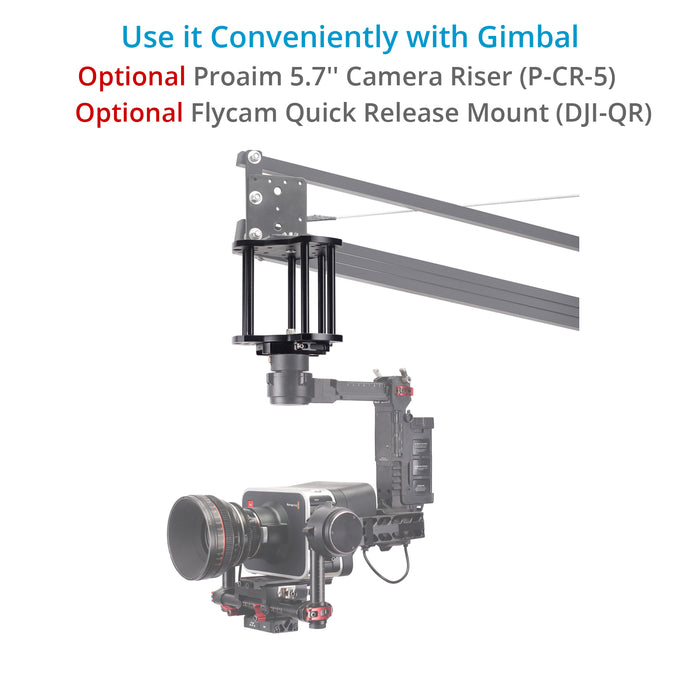

The Jib has Universal front mounting to adapt Pan Tilt Heads and 3-Axis Gimbal Stabilizers.
Two Arm Design offers enhanced strength & stability to the entire jib setup.
The Jib comes with a 1/4"-20 hole allowing for Quick LCD monitor attachment.
Camera Mount Tilt Control offers both Auto tilt mode and a Manual tilt mode with a control handle.
Central Fork with thrust roller bearings absorbs shock loads for smooth jerk free jib movements.
Hi-tensile weight closers keep the weight discs intact for perfect balance.
03.
ADAPTABLE LENGTHS
You can adjust the arm length from 12ft to 18ft feet by quickly adding or removing the jib sections.
The ability to change the length allows you to use the Crane in various scenarios.
04.
MOST AFFORDABLE JIB SOLUTION
For rigs under 8kg / 17.6lb, there isn't a better crane for the money. Filmmakers often have to sacrifice quality for quantity when building their gear; the Proaim 18ft Jib eliminates that concern by providing an excellent jib solution at an economical price.
05.
SOLID FOUNDATION FOR THE JIB
This excellent Jib Stand is sturdy enough to support the Crane when it's fully loaded and weighed.
It combines high-quality materials, technological expertise and superior design to provide the ideal support needed to take the perfect shots.
The Jib Stand supports an incredible payload of up to 90kg / 200lb and is highly stable in use.
06.
SIMPLIFIED TRANSPORT
The Complete Crane System fits in bags for easy storage. These compact bags are easy to carry with you to different sets and locations.
IN-ACTION VIDEOS
SPECIFICATIONS
18' JIB
Construction
Jib Arm: High-grade CNC Aluminum
Cable System: Stainless Steel
Weight Holder Rod: Mild Steel
Weight Closures: Mild Steel
Load Capacity
up to 8kg / 17.6lb
Balancing
Self-Balance: 25kg / 55lb
Camera weight: 1kg (x 4kg Counter weight) + 25kg
2.2lb (x 8.8lb Counter weight) + 55lb
Variable Lengths
18ft, 14ft, 12ft
Jib Length
Height Range from ground level: 19ft when stand height adjusted at 5ft
Length from tripod to Camera Mount: 13.6ft
Total jib arm length: 17ft
Jib Arm
Shape: Rectangle
No. of Sections: 5
Length: 3.5' each
Jib Section Jointers: Silver Aluminum
Tilt Lock
No
Pan Lock
No
Camera Platform
Camera Mount Plate: Square
Levelling: By Stress Cable (with Adjustable Steel Hook)
Camera Platform Tilt: up to 270 degree
Weight Holder Rod
Length: 355mm
Diameter: 25mm
Weight Closures: 2 pieces
LCD Mounting
Yes
Weight
15kg / 33lb
JIB STAND
Construction
High-grade Mild Steel, Powder-coated
Load Capacity
up to 90kg / 198lb
Length
Maximum: 80"
Minimum: 44"
Collapsible Height
46"
Diameter of Stand Tubes
33mm
Base spread
Shape: Rectangle
No. of Sections: 5
Length: 3.5' each
Jib Section Jointers: Silver Aluminum
Safety Pin
Yes
Weight
4.5kg / 10lb
IN THE BOX
18ft Professional Camera Crane (P-18)
Jib Stand (P-JS)
Storage Bag
USER MANUAL
Guaranteed Fast Delivery |
Quick and Efficient |
Easy Returns |
1-Year Warranty |
Q&A
Ask a Question-
would this product work without having to purchase the pan tilt and 3 axis gimbal?
Yes, the Proaim 18ft Jib can also work perfectly without the Pan Tilt Head and 3-axis Head. You can accommodate small DSLR/DSLM cameras directly on the camera mount top plate of the Proaim18ft Jib.
