Proaim 19-15mm Camera Base Plate, ARRI Standard Dovetail Tripod Plate with New Quick Lock

Sold out
Original price ₹ 10,500.00 - Original price ₹ 10,500.00
Original price
₹ 10,500.00
₹ 10,500.00 - ₹ 10,500.00
Current price ₹ 10,500.00
SKU : CH-DTPQ-01

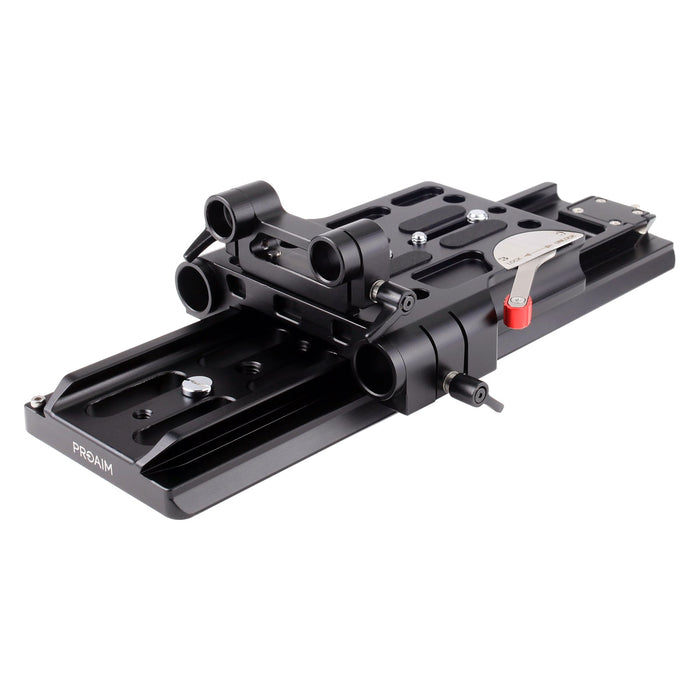

Proaim 19-15mm Camera Base Plate

01.

MODERN CAMERA PLATFORM
Proaim 19-15mm Base Plate is lightweight yet heavy-duty platform and comprises of ARRI Standard Dovetail Tripod Plate.

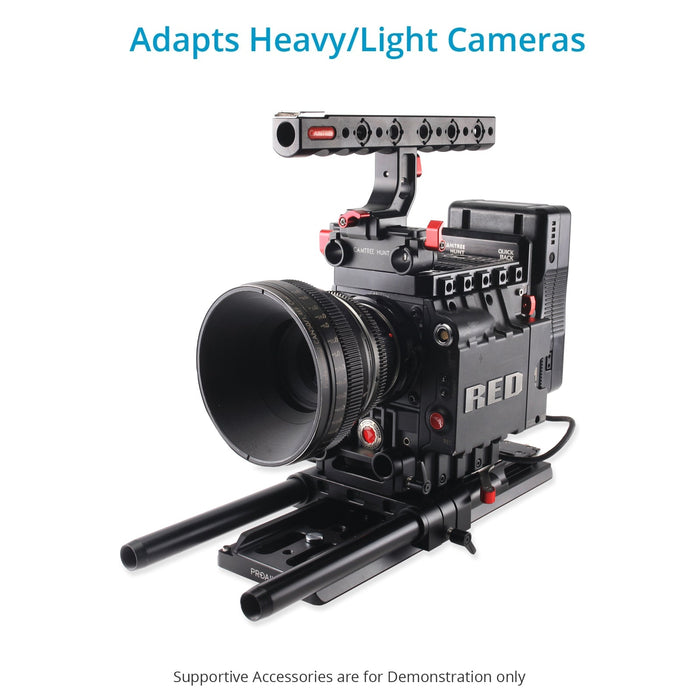

You can easily attach any camera to this versatile base plate such as heavy-duty cameras like the ALEXA or lightweight cameras like the Sony F5.
High Grade Aluminum Construction ensures durable long life service.
Quick Release System allows for quick mounting & dismounting of camera setup.

Proaim 19-15mm Camera Base Plate, ARRI Standard Dovetail Tripod Plate with New Quick Lock
Proaim 19-15mm Camera Base Plate, ARRI Standard Dovetail Tripod Plate with New Quick Lock

02.

MOUNTING
The base plate comes with a 19-15mm rod adapter and utilizes 15mm and 19mm rods to mount on accessories such as a matte box or follow focus.
The ARRI standard dovetail mounts directly onto the tripod and works best with heavy-duty tripod heads like O'Connor 2060 , O'Connor2575, O'Connor120ex , Sachtler cine 30.

SPECIFICATIONS

Construction

  High-grade CNC Aluminum

Camera Compatibility

  Universal

Rod Ports

  15mm and 19mm

Camera Mounting

  1/4"-20 & 3/8”-16 screws

Tripod Mounting

  1/4"-20 & 3/8”-16 threads

Weight

  1.36kg (2.99 lb)

Dovetail Tripod Plate Dimension

Proaim 19-15mm Camera Base Plate

IN THE BOX

19mm/15mm Camera Base Plate
Dovetail Tripod Plate (ARRI Standard)

USER MANUAL


Guaranteed Fast Delivery
For all orders

Quick and Efficient
Customer service

Easy Returns
Up to 7 days

1-Year Warranty
On All Products





  • Can this work with an Alexa mini? I have the dovetail already. Just need a really sturdy baseplate.

    Yes, The Alexa Mini is compatible with the Proaim 19-15mm Camera Base Plate (CH-DTPQ-01) by removing the 15mm rod support adapter.

  • The 15mm rod mount at the top is removable ?

    Yes, the 15mm rod mount is removeable.
