Proaim unveils its Wave-5P 24ft Breeze Package, driven with technicalities for modern video shooting. The crane jib uses triangular aluminum tubing for lightweight design and yet maintains the strength and rigidity. The arm connecting bars securely fits into another one with top screw that guarantees its strength and reliability.
Included with the Heavy duty long lasting tripod stand and D-37 camera dolly to add dynamic moving shots in your videos. Moreover our Sr. Pan Tilt head, Lanc zoom controller makes it a right choice for all filmmakers. Whether you are a seasoned pro or just a passionate beginner, you’ll get breath- taking footage every time with your vision.
"WHAT YOU SEE IS WHAT YOU GET"
Exclusive of weights
Video is for demonstration only
Actual Product may vary due to Product Improvements
View More Videos Here

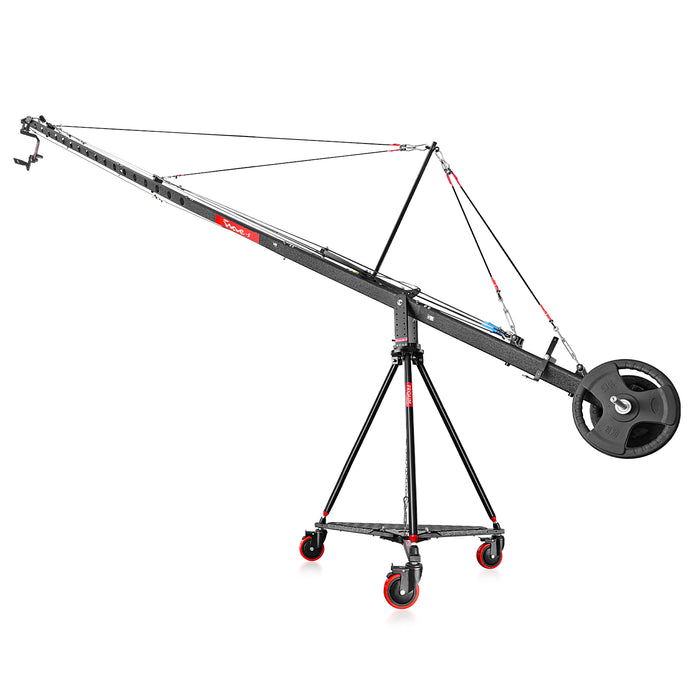

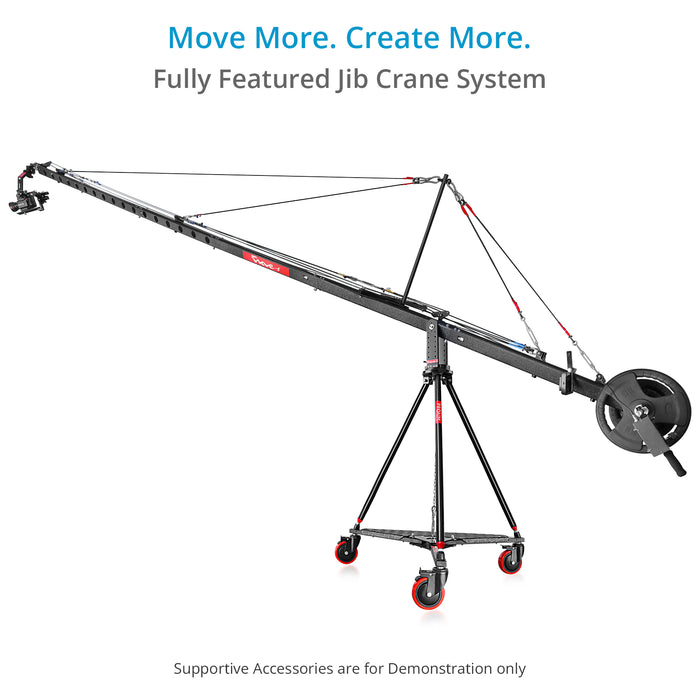

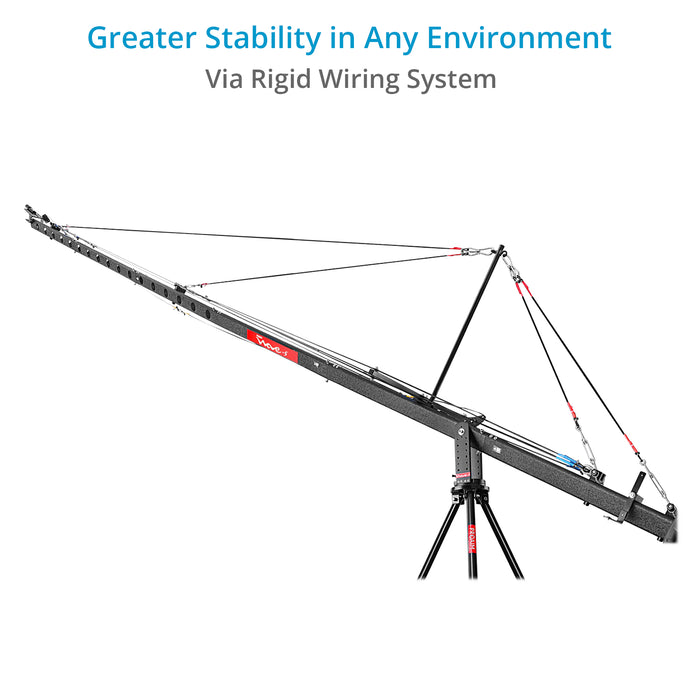

PROAIM 24FT WAVE 5 JIB CRANE:

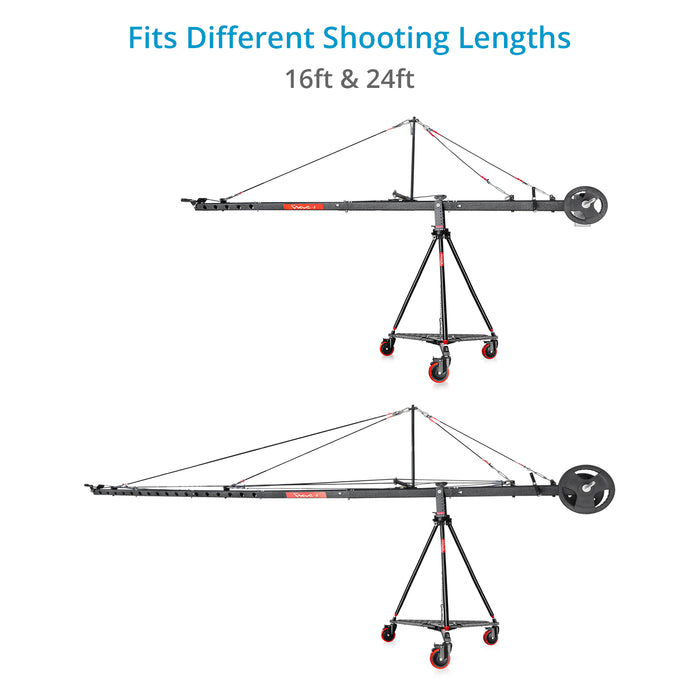

This High Grade Aluminum constructed camera crane jib arm is expandable from 4ft (one section) to 24ft (six sections) in 4ft increments. As a quality constructed reinforced movie camera crane, it should last a lifetime.
- The Rear Control Center has provisions for mounting the Joystick Control box & Zoom Controller.
- Jib Arm connecting bars securely fits into another one with top screw that guarantees its double security, strength and reliability.

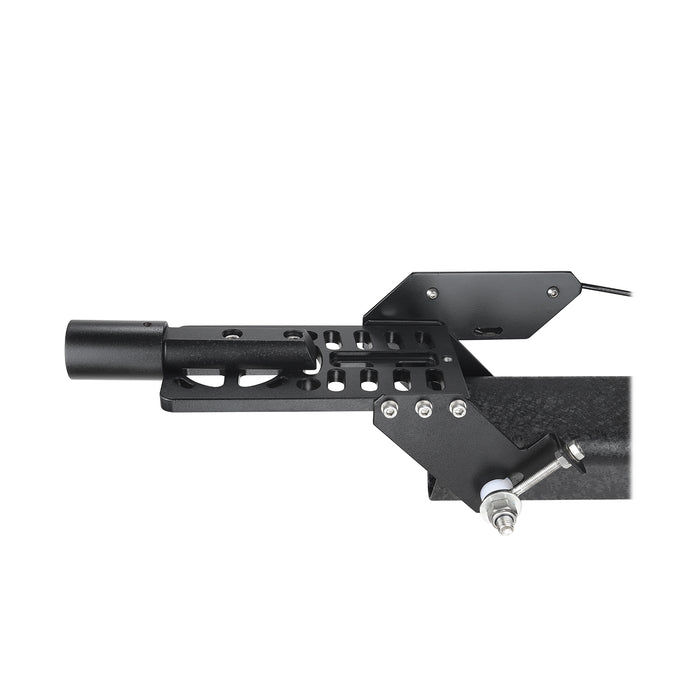

FLEXIBLE HEAD MOUNTING
The Sr. pan tilt head provided in the package, gets easily attached to the head mounting in no time that saves your production time. This high strength Head mounting is designed in such a way that it is also compatible with most of the motorized heads.

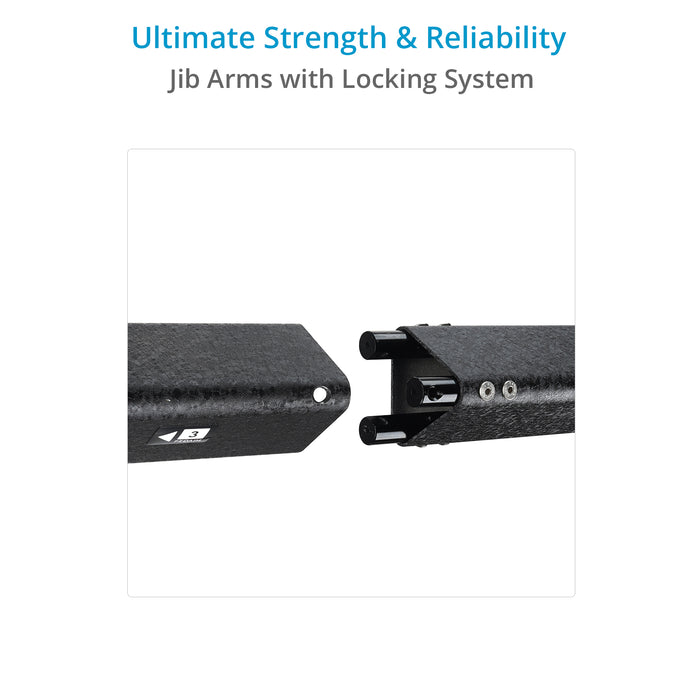

ARM CONNECTING BARS
Each section fits smoothly and securely into another one. For better protection, it is fastened by a screw at the top which ensures better safety of your movie camera crane. Double security features guarantees its strength and reliability.
Custom extruded sections connects smoothly & securely with one another

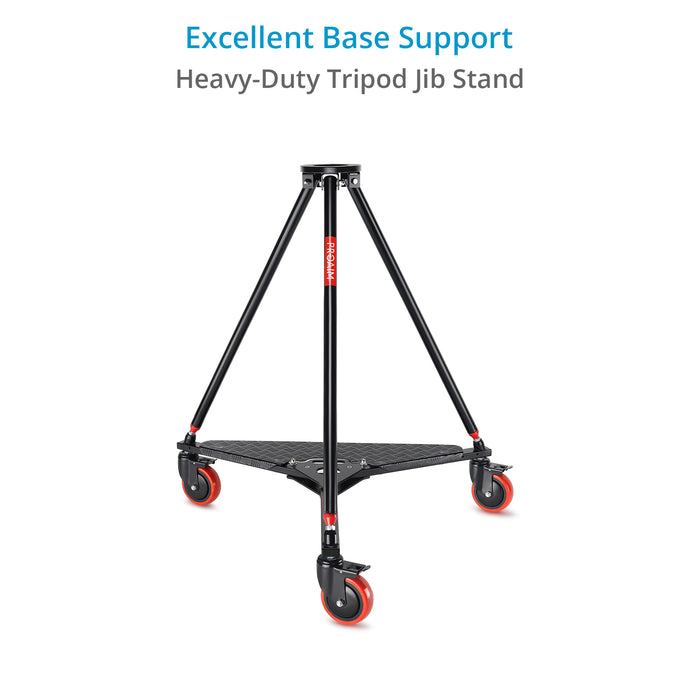

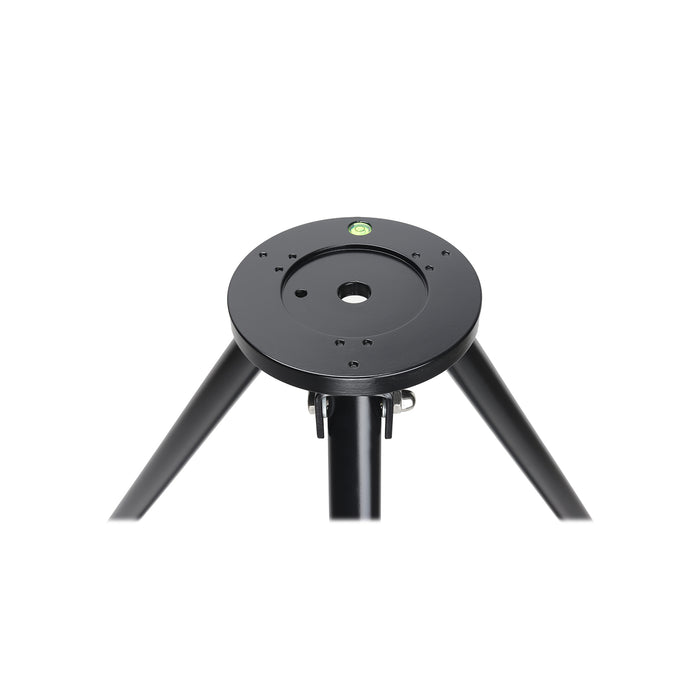

TRIPOD STAND (W5-STD)
The Heavy Duty Tripod Stand (W5-STD) is a rock solid, robust and long lasting camera crane stand made of mild steel, with an incredible height range of 42". It has a strong hub assembly. The feet are solid with double locking knobs.
Heavy duty stand ensures steady shots

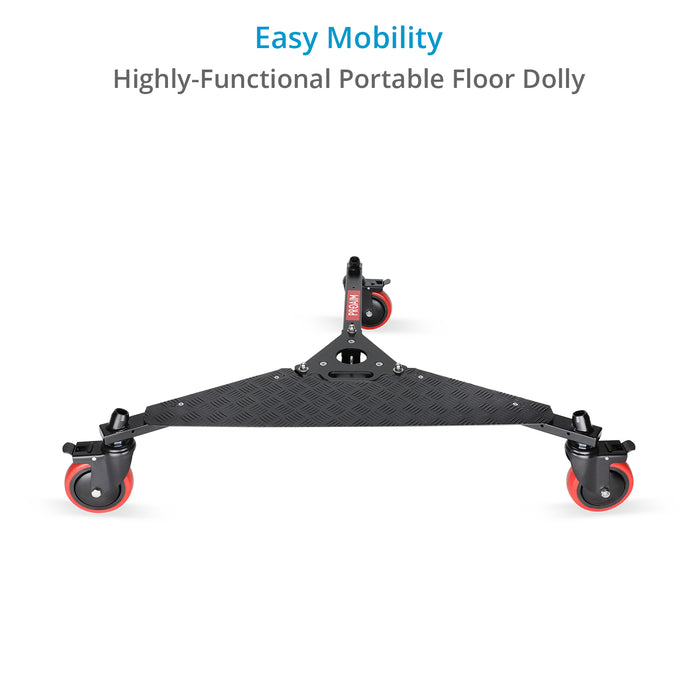

D-37 FLOOR DOLLY
D-37 Pro Dolly is the most portable camera dolly in the market. It's a compact, lightweight and versatile pro dolly best suited for supporting all heavy duty stands.
Industrial grade aluminum dolly can bear heaviest of equipment
- Rubber wheels with bearings allow for smooth movement
- It folds to a compact size for easy transport
- Build-in wheel lock provides stability to the system even in rougher terrains
- Pro Dolly setup supports heavy weight
- Quality designed and engineered

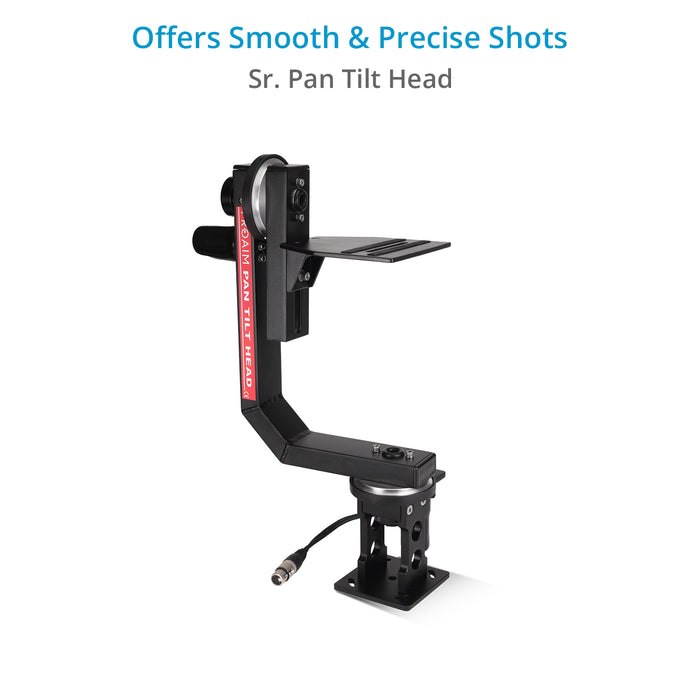

PROAIM Sr. PAN TILT HEAD
Designed for DV, HDV and broadcast cameras weighing up to 7.5kgs/16.5 pounds or less, our Proaim Senior Pan Tilt Head offers 360 degree endless panning and tilting with reversal points.
- Runs on 12v DC power produced by the included A/C adapter or also accepts external 12V DC battery power through the included 3mtr long 4 pin XLR cable for outdoor shooting.
- You receive the Pan-Tilt Head with assembled wiring for Top and Bottom Motor.
- To install Power out to head (4 pin connector) and 12 volt DC power (4 pin XLR) in rear of joystick box.
Achieve unfettered, floating camera moves
- The Dead spot control determines the center band of the joystick where no motion will occur when not wanted.
- Out of the box, the Pan Tilt System with assembled wiring for Top and Bottom Motors.
- Consistent operation at its slowest speed without stopping.
- Camera platform height can be adjusted at any point .

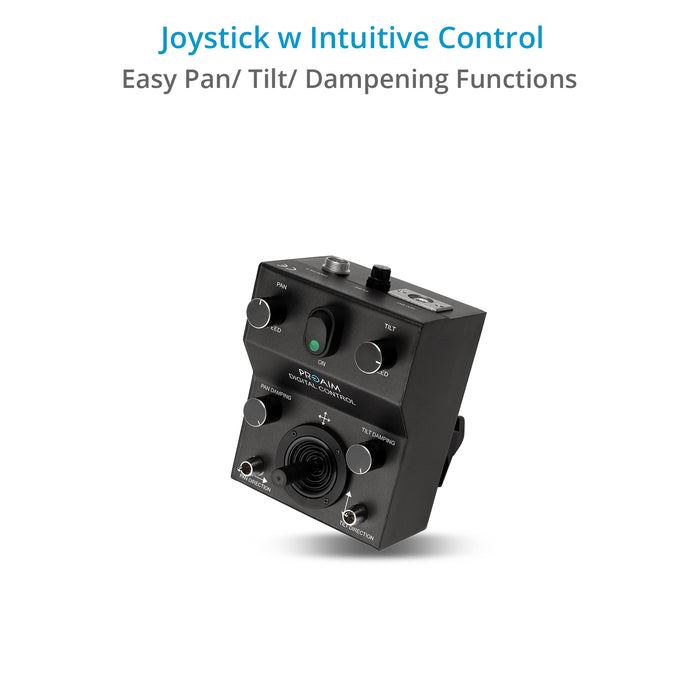

- The Joystick control system includes a 9mt long operating cable and AC adapter.
- Operational from a flat surface in handheld mode or when attached to the bottom of the jib arm.
An exquisite body with intuitive control
SUPERB PROPORTIONAL CONTROL
- Joystick has proportional linear movement i.e. farther you move the joystick, the faster the head moves.
- Joystick is touch sensitive.
- Small movement – less speed.
- More movement – more speed.
FREE PROAIM PRO LCD -003 7'' MONITOR KIT
The Proaim 7" Widescreen Color TFT LCD Monitor displays 4:3 and 16:9 widescreen and works perfectly with most Digital SLR and HD DV Cameras including Sony, Nikon, Canon, Panasonic, JVC etc. It is fully compatible with NTSC & PAL. It has On-board AV input output ports, its non HDMI. You can use this LCD Monitor with your any other package like shoulder mount, stabilization system etc. with the help of any 1/4" screw adapter.
- Male RCA jacks for a direct connection to your camera without adapters
- 16:9 or 4:3 Adjustable Display widescreen
- Compatible with most Digital SLR and HD DV Cameras including Sony, Nikon, Canon, Panasonic, JVC.
- Headphone jack
- High output stereo speakers
- Full functional Remote control
- NTSC & PAL Compatible
- Battery attachment on back of LCD itself
- LCD stand for tabletop mounting
- Antenna Mounting
- Attaches to camera's accessory shoe
- On-board AV input
PROAIM LANC ZOOM CONTROLLER (P-ZC-3DV)
The Proaim Zoom Control for DV Cameras is a universal controller for LANC and Panasonic Mini DV or HDV cameras. It works only with most Sony & Canon cameras with a 2.5mm mini-jack LANC input and Panasonic models with a 2.5mm mini-jack Cam Remote input.
An exquisite body with intuitive control
COMPLIMENTARY TOOLS AND TOOL POUCH/WRAP
This tool / accessory roll pouch provides Rapid Access to Various Tools such as Allen Keys or wrenches. This premium quality tool roll has 10 Various Pockets to neatly organize a variety of hand tools so you can work quickly and efficiently
Soft pouch to handle all your tools safely

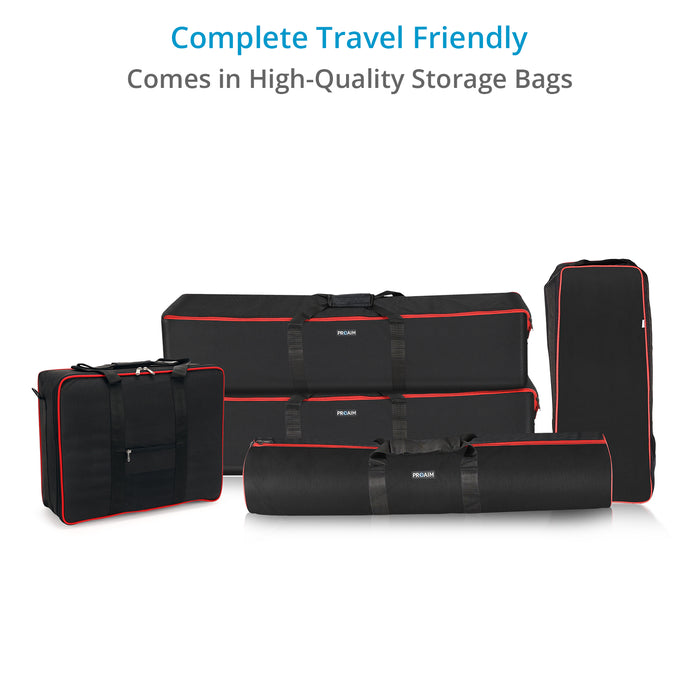

Protective carry case for easy transportation

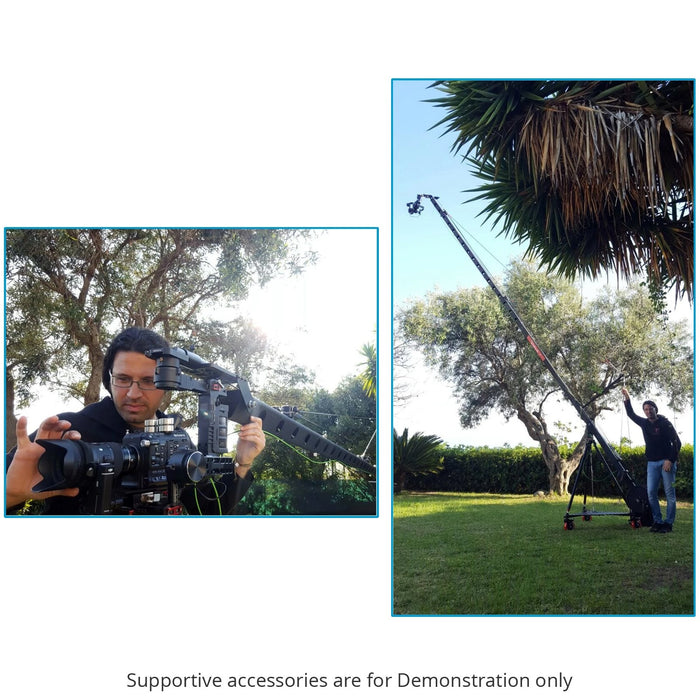

The Supportive accessories are for demonstration purpose only.

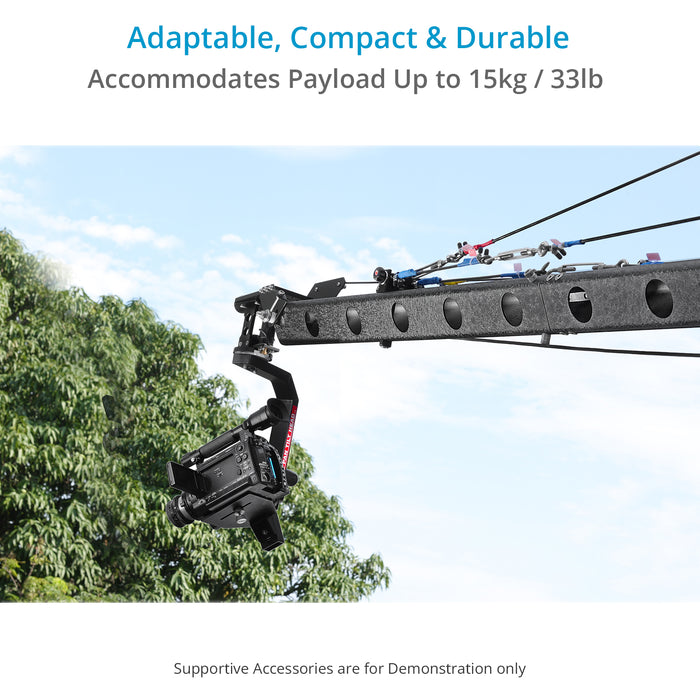

|Weighing Capacity of Jib||15kg|
|Jib Arm Material||High Grade Aluminum HE30|
|Jib Arm wall Thickness||3mm|
|Camera Crane Length||24ft|
|Crane Pan Lock||No|
|Crane Tilt Lock||No|
|Jib each Arm length||4ft|
|Finish||Black Powder Coated|
|Jib Arm Break downs to||6 Sections of 4ft each|
|Weight of tripod stand||11.5 Kg|
|Length of Tripod||42''|
|Made from||Mild Steel|
|Dia of tripod leg||40mm|
|PAN TILT HEAD SPECIFICATIONS|
|Pan-Tilt Material||High Grade Aluminum|
|Max Camera Package Load Capacity||7.5kg (16.5 lbs)|
|Pan movement||360 degrees|
|Tilt movement||360 degrees|
|Speed||Variable-controlled speed from 6 degrees/sec (low speed) to 51 degrees/sec (high speed)
Slowest Speed : 2 minutes
Highest Speed : 7 seconds.
|Motors||Two high torque, coreless DC motors that rotates (pans) and tilts the head 360 degrees|
|Gears||2- Silver Big Gears (Dia- 89mm)
2- Brass Small Gears (Dia- 14mm)
|Minimum height of head||18.5 inches|
|Maximum height of head||26 inches|
|AC Adapter input||AC 100 - 240V ; output - DC 12V -2A|
|Cable Length||9 meter|
|Cable Connector||4-Pin XLR|
|Battery Cable||3 Meter long|
|Weight||7.2kg (15.8 lbs)|
|Carrying Bag Dimensions||50 X 35 X 19 cm|
- 24ft Wave 5 Movie camera crane
- Sr. Pan Tilt head (PT-SR)
- Tripod Stand (W5-STD)
- D-37 Floor Dolly
- Proaim Lanc Zoom Controller (P-ZC-3DV)
- Proaim Pro Lcd -003 7'' Monitor Kit
- FREE Tools and Tool Pouch/Wrap
Q&AAsk a Question
Could it be controlled by a computer
The Proaim Pan Tilt Head PT-SR is only controlled by a joystick controller included in it. It will not be controlled by a computer.
Can the Sr. Pan Tilt Head be moved by hand if i don\'t want to use the motor?
Yes, the Proaim Senior Pan tilt head can be moved with hands but before this you have to disengage the motor gear to avoid any damage to the gears.
Does the Breeze have a larger truss than the Fraser ?
The truss of both the Proaim Fraser Jib Crane and the Proaim Breeze jib crane are the same.
Hello, is screen includes in the crane packages ?
The Proaim Camera Crane Packages does not include the monitors or screens.
