A new crane with 7 uniquely designed features
focused on reducing setup time by 40%
and ensuring ease of carrying!

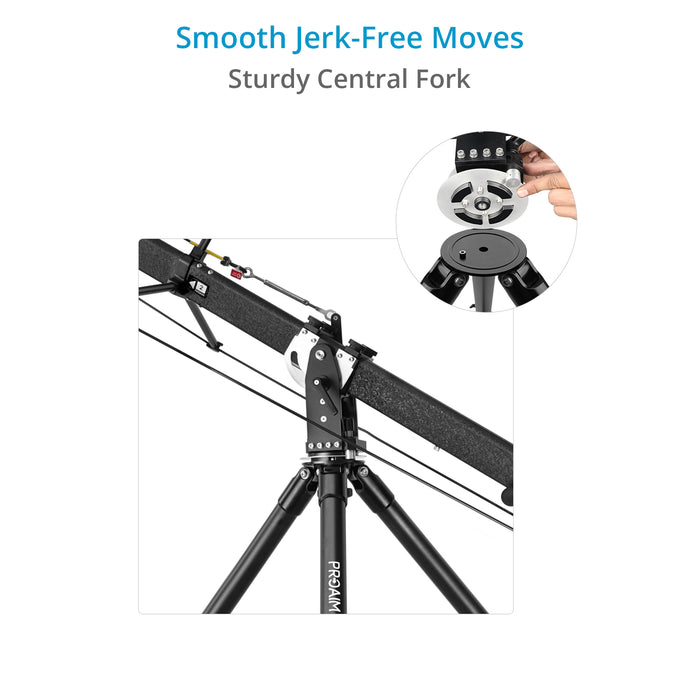

The philosophy behind the new and unique design of the Fraser crane is to save your set up time so that you can channelize that energy & time into delivering perfect shots. The seamless fit between the dolly and the tripod, the perfect disc brakes on the fork, a convenient push-fit mechanism for the sections, a newly designed mounting of the pan tilt on the crane and a compact packing; everything has been designed keeping in mind the ease of carrying the crane and reducing the setup time.

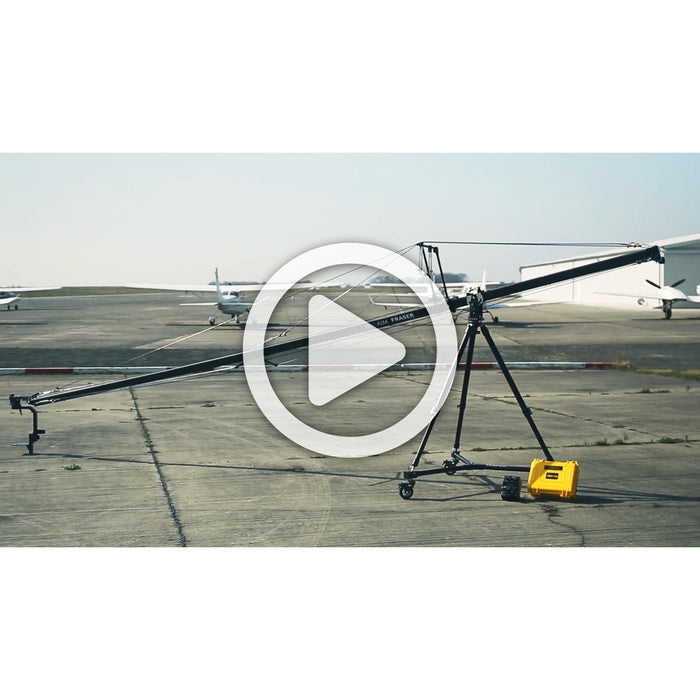

Video is for demonstration only
Actual Product may vary due to Product Improvements
View More Videos Here
Stronger. Lighter. Faster.

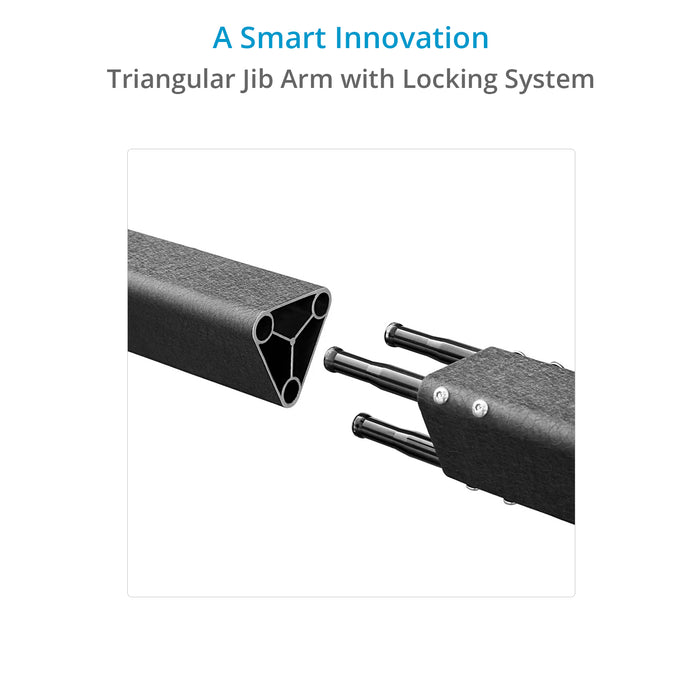

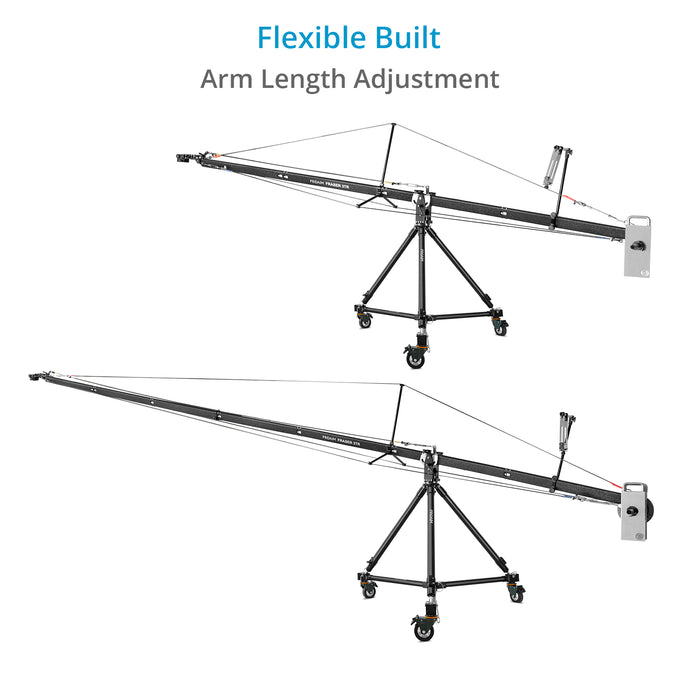

The Aircraft Aluminum Crane Sections are ribbed, giving the structure 4x strength yet keeping the crane lightweight. Sections connect with each other quickly and easily by a tool-less push fit mechanism saving your valuable production time. Sections are powder coated which keeps it scratch free and making it elegant at the same time.

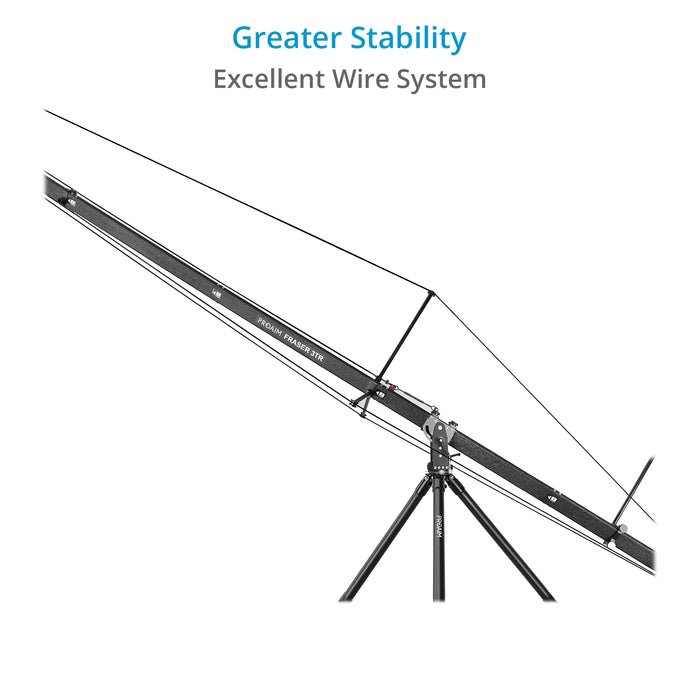

High Strength Stress Cables
The high strength stainless steel stress cables keep the crane setup completely rigid & straight. Cables get quickly connected to the crane with the easiest locking system which saves a lot of time. The stress cable also keeps the head plate parallel to the ground. To divide the load equally on all the stress cables, the rods of the stress cables have been kept at an angle of 120degrees from each other keeping the setup stable from every direction.
Freedom to Concentrate with New Features

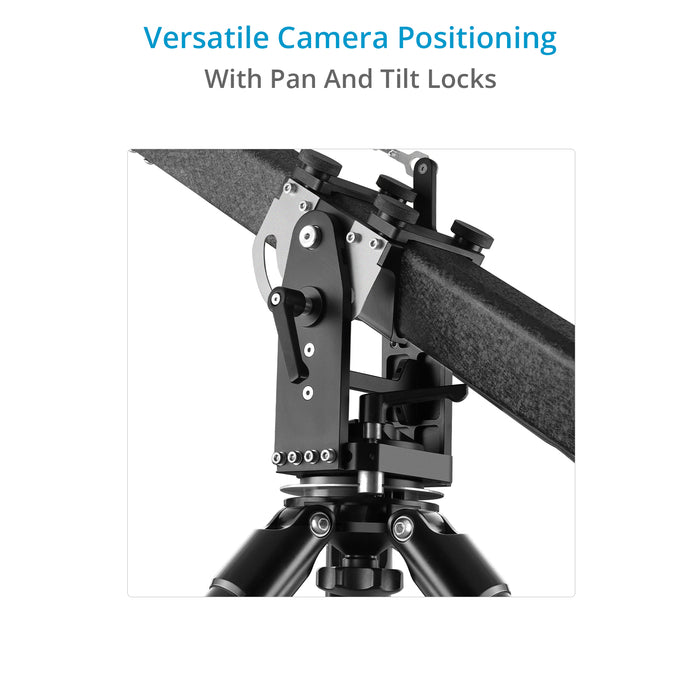

Pan and Tilt Disc Lock
The disc lock enables the operator to move the crane on one axis when required or take completely static shots allowing you to concentrate on the shot and not worrying about unnecessary movements. The locks also provide protection for your equipment by securely locking the crane in place.

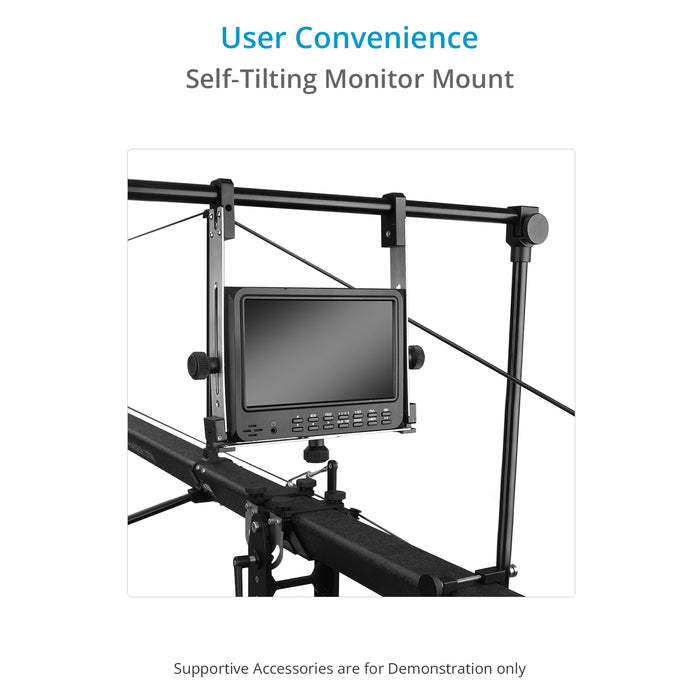

Self-Tilting LCD Mount
The LCD Mount comes with a self-tilting mechanism that keeps the monitor at eye level and hence enables the operator to view the monitor even when the crane is lifted totally upwards.
LCD not included

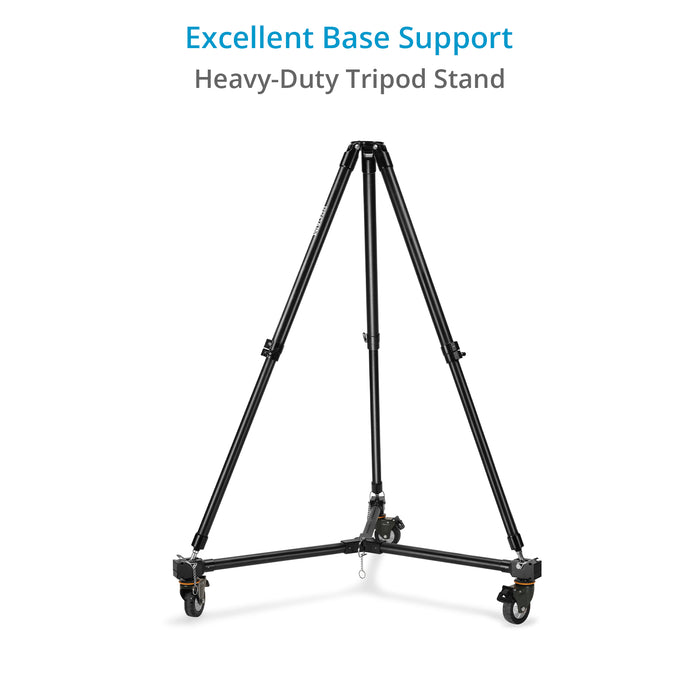

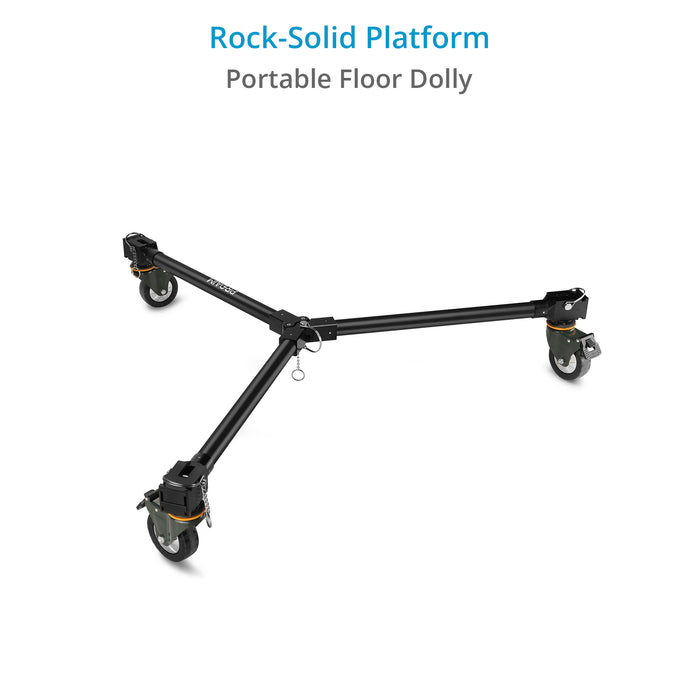

Dolly & Jib Stand
The jib-stand locks easily, safely & tightly into the dolly. Constructed from solid aluminum, the dolly & the jib-stand have an ample spread that pushes the center of gravity lower towards the ground providing a stable foundation for stable shots. The dolly gives you the flexibility to move the crane as & when required. Being telescopic, the stand’s height can be adjusted according to shooting requirements.
The unique mounting also features a leveling feature so that you can level the head quickly after it has been mounted.
Technology That Lasts you a Lifetime!
- Weighing Capacity of Jib: 10kg
- Jib Arm Material: Aircraft Aluminium Construction
- Camera Crane Length: 6m
- Jib each Arm length: 2.7 ft
- Finish: Textured powder coating
- Jib Arm Break downs to: 7 Sections of jib arm
- Crane Pan Lock: Yes
- Crane Tilt Lock: Yes
- Maximum Height: 4' 11.5"
- Minimum Height: 2' 8"
- Tripod Mount: Flat Base
- Load Capacity: 150kg / 330lb
- Proaim Fraser PF-3TR Camera Crane (PF-3TR)
- Tripod of Fraser Jib (TP-FR)
- Dolly of Fraser (DL-FR)
- Storage Case
Q&AAsk a Question
I need a compatible Pan-tilt head that will work with PF-3TR-JTD
The Proaim Jr. Pan Tilt Head PT-JR is compatible with PF-3TR-JTD with the help of Proaim 3TR Mount. Here are the links for your reference:
Can you tell me the wall thickness of the aluminum arm profile of this crane.
The wall thickness of the aluminum arm profile of Proaim 20ft Fraser Crane is 3mm. Below is an image of the dimension for your reference:
Can I Attach Spin-3 (3-Axis) Motorized Pan Tilt Head with Fraser Traveller Camera Jib Crane ?
Proaim Spin-3 (3-Axis) Motorized Pan Tilt Head (PT-SPIN-3) is not compatible with Fraser Traveller Camera Jib Crane (PF-3TR-JTD).
Hello, is screen includes in the crane packages ?
The Proaim Camera Crane Packages does not include the monitors or screens.
