Proaim 7' Wave-2 Camera Jib Crane, Pan Tilt, Dolly Stand | Gimbal Compatible

For DSLR Video Camera Setups up to 25kg / 55lb

Save 11%
Original price Rs. 130,466.00
Current price Rs. 116,093.00
SKU : P-WV-2PP

POWERFUL, SIMPLE & AFFORDABLE

Best Travel Crane for Outdoor Extremes & Indoor Studio Shots!!

01.

PROFESSIONAL. STRONG. LIGHT. SMOOTH.
Proaim 7' Wave-2 Plus Video Jib Crane, specifically designed for indoor & outdoor video productions, is a portable filming solution for videographers and cinematographers who need a lightweight and ultra-portable Crane system.
The Jib has many great features such as telescopic design, versatile camera mount, sturdy assembly hub, panning knobs, making it one of the most value for money jib.
It allows capturing smooth, dynamic sweeping pans and camera rise.
High strength Aluminum construction with unbeatable stability holds camera setups up to 25kg / 55lb payload.

ProaimaProaim 7' Wave-2 Camera Jib Crane, Pan Tilt, Dolly Stand | Gimbal Compatible 7' Wave-2 Jib with CST-100 Stand, Portable Dolly & Jr. Pan Tilt Head
Proaim 7' Wave-2 Camera Jib Crane, Pan Tilt, Dolly Stand | Gimbal Compatible

02.

EXPERTLY CRAFTED JIB

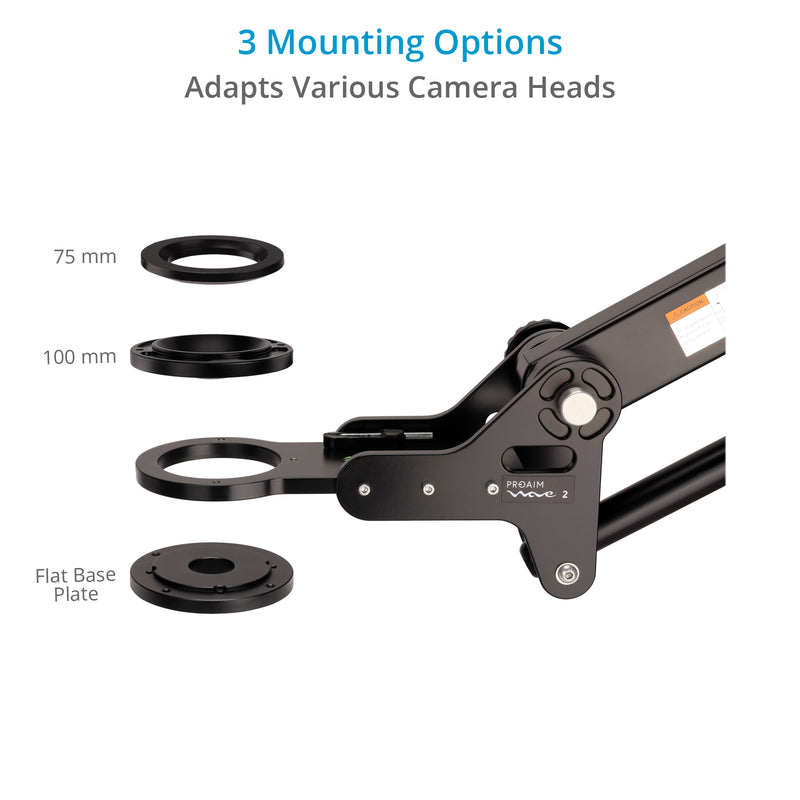

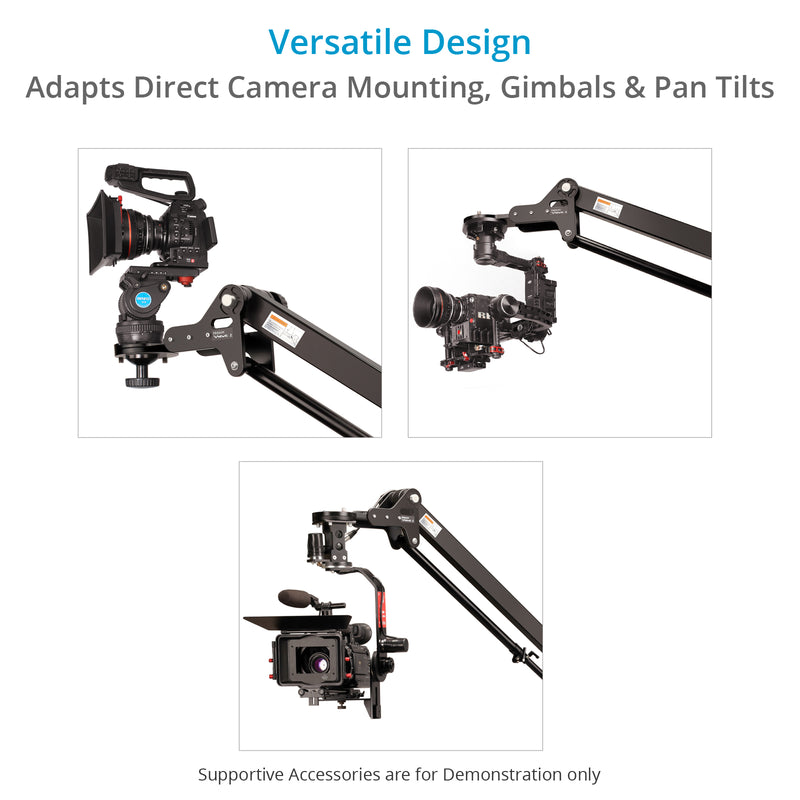

The Jib has a camera head mount that accepts 75mm/100mm fluid heads.

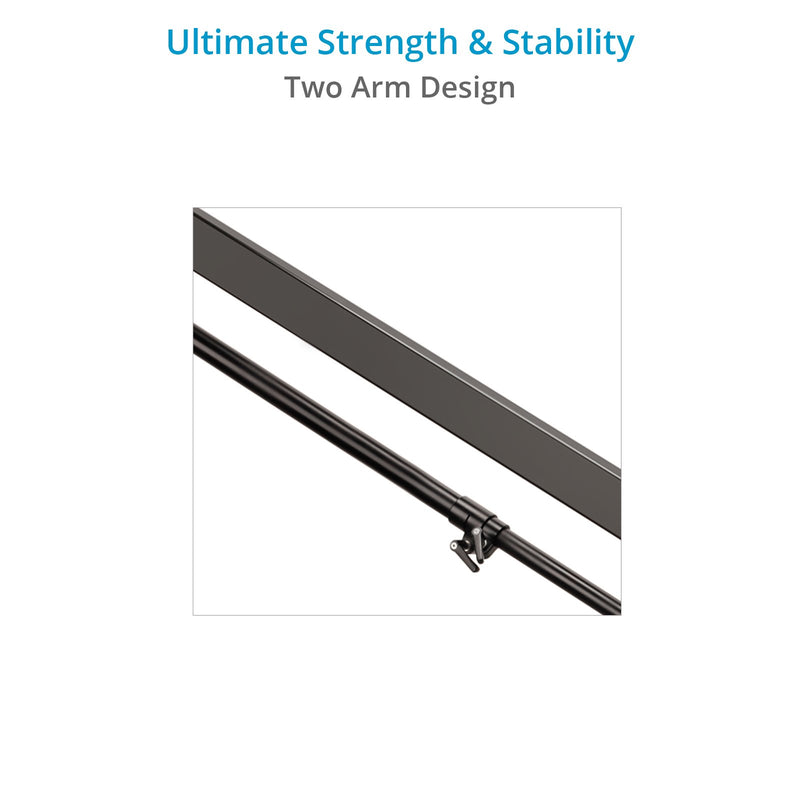

Two Arm Design offers enhanced strength & stability to entire jib setup.

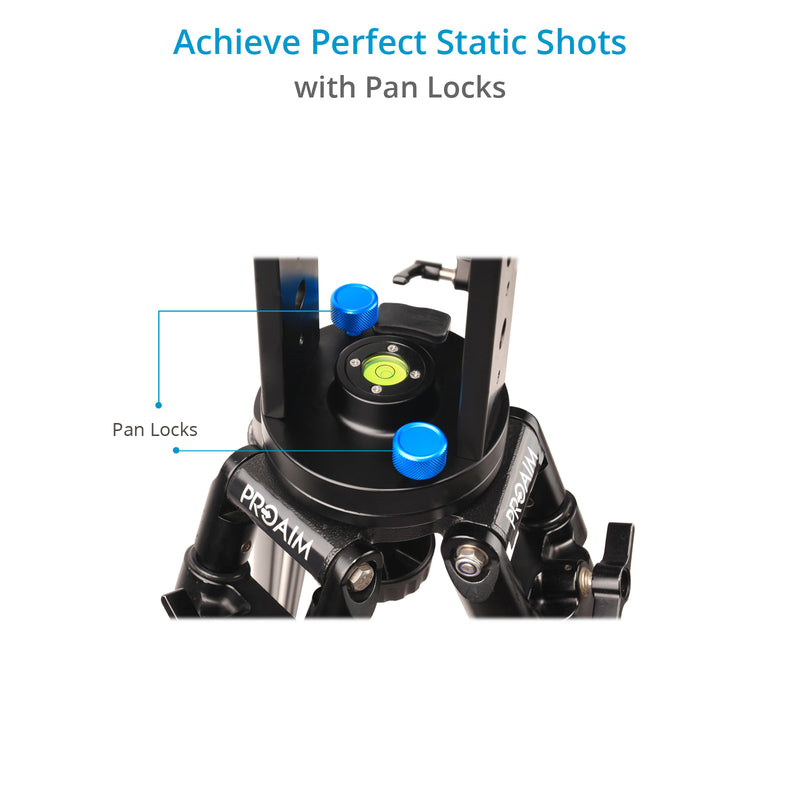

The Jib comes with pan knobs to control the panning of Jib.
Built-in bubble leveler offers fast, accurate set up on uneven surfaces.

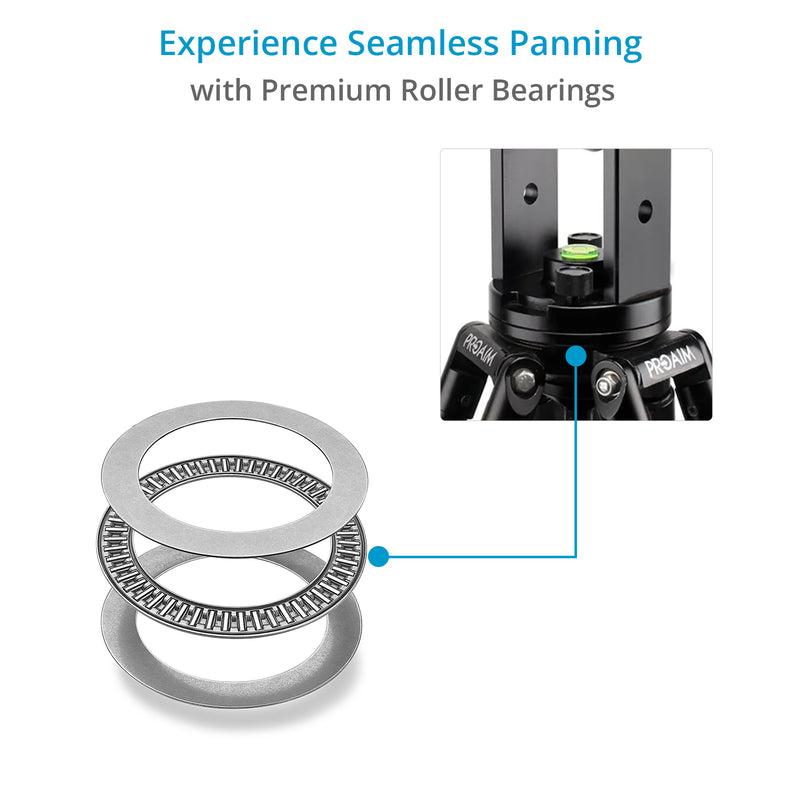

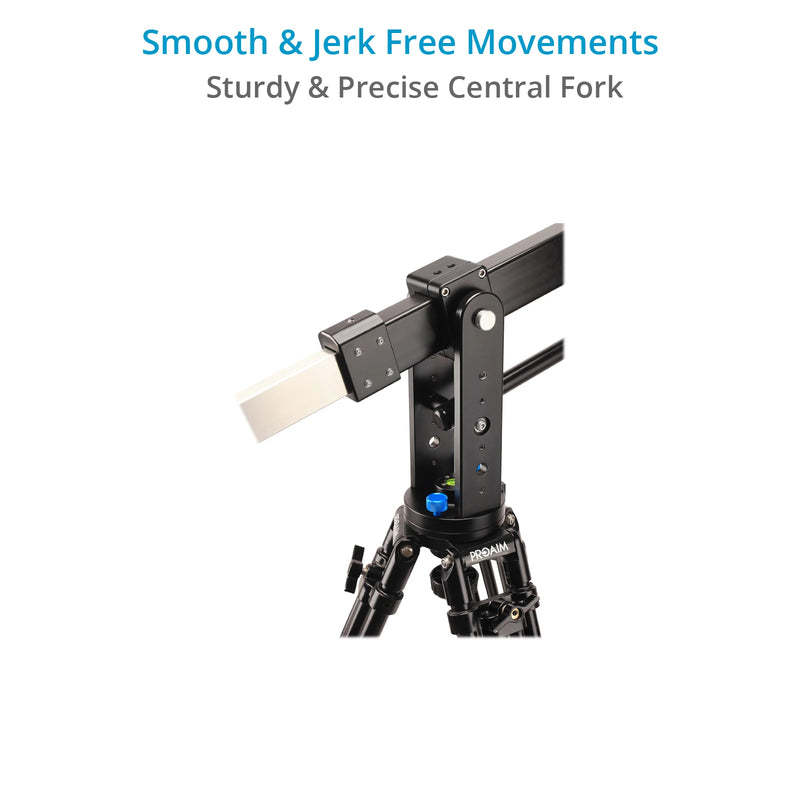

Assembly hub provides the perfect drag for smooth panning of the jib arm and absorbs unwanted vibration or movement from the operator.

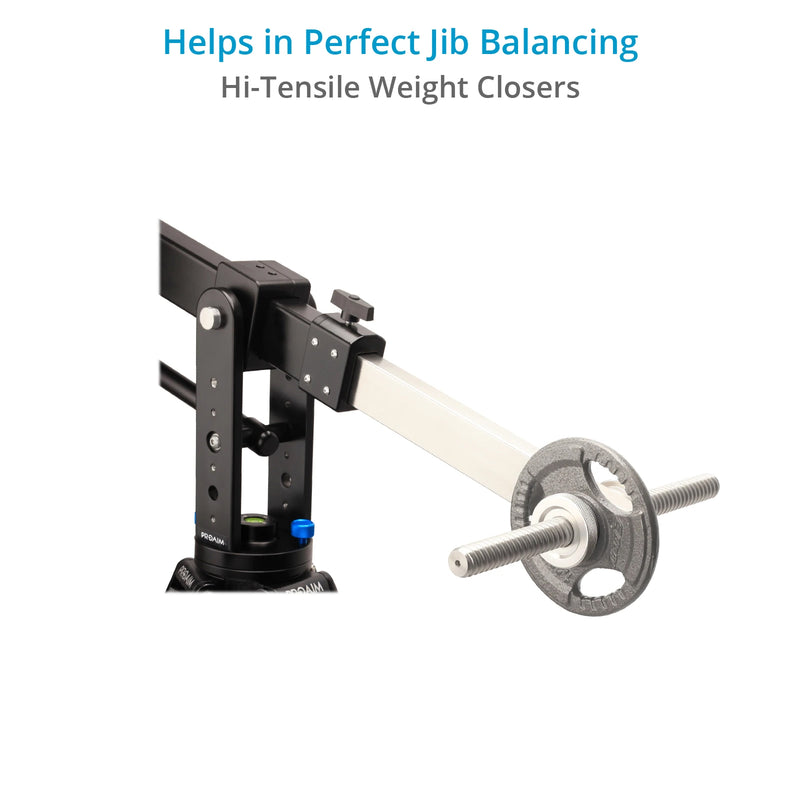

Hi-tensile weight closers keep the weight discs intact for perfect balance.

03.

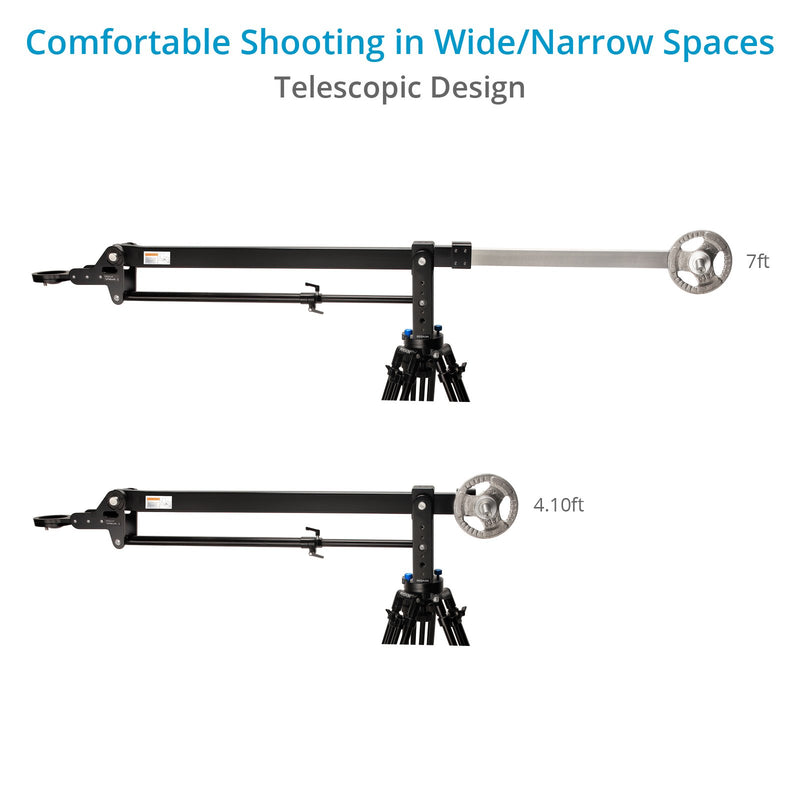

ADAPTABLE LENGTHS
This travel-friendly Jib telescopes from backside, which helps in the balancing of jib. You can adjust the arm length from 4.10 feet to 7 feet.
The ability to change the length allows you to use the Crane in various scenarios.

Proaim 7' Wave-2 Camera Jib Crane, Pan Tilt, Dolly Stand | Gimbal Compatible
Proaim 7' Wave-2 Camera Jib Crane, Pan Tilt, Dolly Stand | Gimbal Compatible

04.

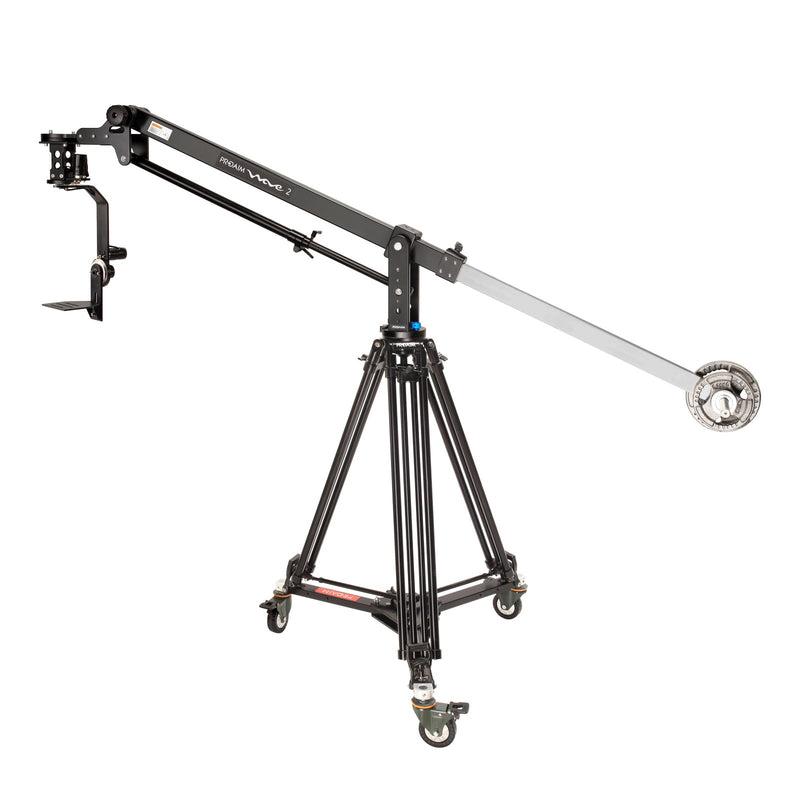

SOLID FOUNDATION FOR WAVE 7' CRANE

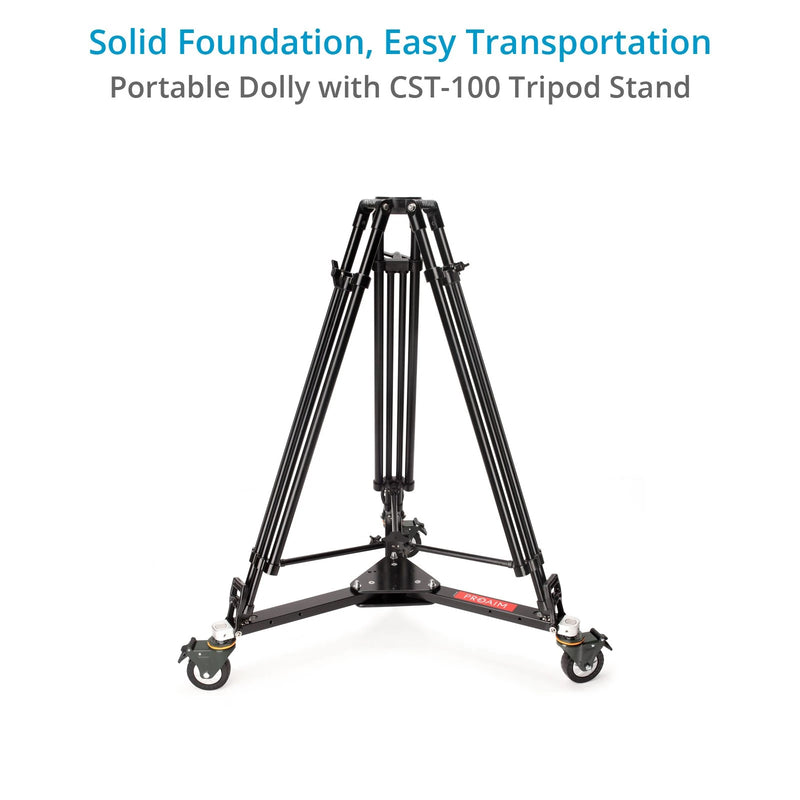

This excellent combination of CST 100mm Tripod Stand and Portable Camera Dolly is sturdy enough to support the Crane when it's fully loaded and weighed.
The Tripod with spreader gives immense support with an incredible payload of up to 80kg / 176lb and is highly stable in use.
Heavy-duty Dolly gives movement to the Crane mounted on the Tripod and quickly takes payloads up to 500kg / 1100lb.
The main features of Dolly are – Secure Tripod feet holders, locking brakes, high-quality wheels and foldable design.

05.

ENHANCE YOUR CREATIVE VISION

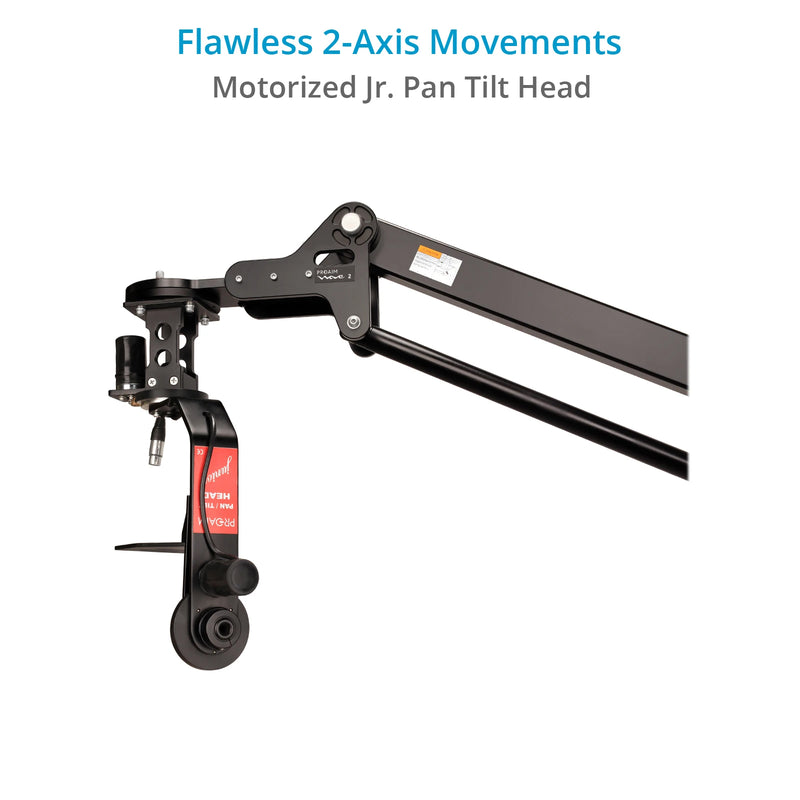

Proaim Jr. Pan Tilt Head

Proaim 2-Axis Jr. Pan Tilt offers a complete 360-degree pan & tilt inaudible movements while keeping your camera safe and secure. It is engineered to support cameras up to 5kg/11lb with ease. Creative flexibility is a built-in feature. The Pan Tilt head can be used with jib crane arms, tripods, and other remote operating situations that dictate increased production value. Incredibly accurate and easily controllable, Proaim Jr. Pan tilt is a user-friendly Controller System.

Proaim 7' Wave-2 Camera Jib Crane, Pan Tilt, Dolly Stand | Gimbal Compatible
Proaim 7' Wave-2 Camera Jib Crane, Pan Tilt, Dolly Stand | Gimbal Compatible

06.

PAN TILT FEATURES

Two Coreless Motors
Two coreless high torque motors provide inaudible movements along with a payload capacity of 5kg / 11lb, which is substantially higher than its counterparts.

Brass Gears
The high strength brass gears are engineered to withstand long hours of functions and minimal wear and tear.

07.

EASY OPERATION

Speed Controller
The Speed Controller adjusts the speed of pan & tilt based on the requirement of the shot.

Damping Control
Damping control prevents the Head from stopping with a jerk enabling you to achieve smooth endings.

Pan-Tilt Direction
You can reverse the panning & tilting direction as & when required.

Proaim 7' Wave-2 Camera Jib Crane, Pan Tilt, Dolly Stand | Gimbal Compatible
Proaim 7' Wave-2 Camera Jib Crane, Pan Tilt, Dolly Stand | Gimbal Compatible

08.

MOST AFFORDABLE JIB SOLUTION
For camera rigs under 25kg / 55lb, there isn't a better crane system for the money. Filmmakers often have to sacrifice quality for quantity when building their gear; the Proaim 7' Wave-2 Plus Jib package eliminates that concern by providing an excellent jib solution at an economical price.

09.

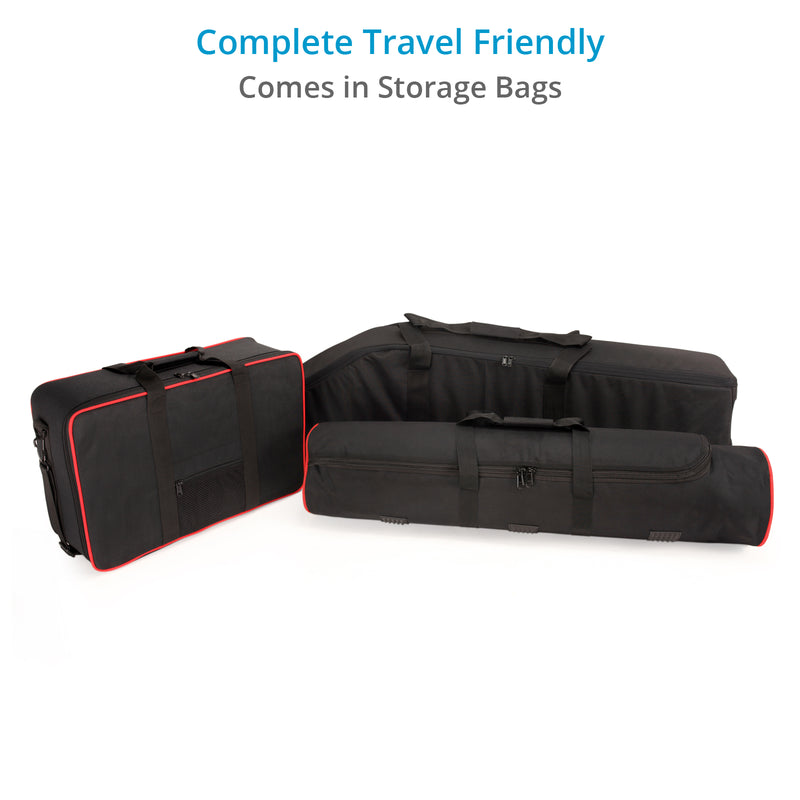

SIMPLIFIED TRANSPORT
The Crane System comes in high-quality bags for easy storage. These compact bags are easy to carry with you to different sets and locations.

Proaim 7' Wave-2 Camera Jib Crane, Pan Tilt, Dolly Stand | Gimbal Compatible

IN-ACTION VIDEOS

SPECIFICATIONS

7' WAVE-2 JIB

Construction

  Aluminum black anodized Camera stabilizer

Load capacity

  up to 25kg / 55lb

Tripod mount

  100mm diameter

Camera Mount

  Flat base plate for Pan tilts heads
  100mm and 75mm Bowl head (with ring)

Telescopic Range

  4.10 feet to 7 feet

Pan Radius

  360°

Jib Pan Lock

  Yes (via pan friction knobs on U-Hub)

Jib Tilt Lock

  No

Camera Plate Tilt Lock

  Yes (via adjusting the camera head plate knob and ratchet knobs on jib arm)

JUNIOR PAN TILT HEAD

Construction

  High-grade CNC Aluminum

Load Capacity

  5kg / 11lb

Pan Tilt Movement

  360°

Motors

  Two high torque, coreless DC motors that rotate the Head 360° (Pan/Tilt)

Speed

  Minimum: 6°/sec Maximum: 51°/sec
  It Covers 360° at Slowest Speed in 2 minutes
  It Covers 360° at Highest Speed in 7 seconds

Gears

  2 Small: 13.5mm (Brass)
  2 Large: 88mm (Aluminum)

Height Adjustment

  Minimum Height: 18.5" / 46.99cm
  Maximum Height: 22" / 56cm

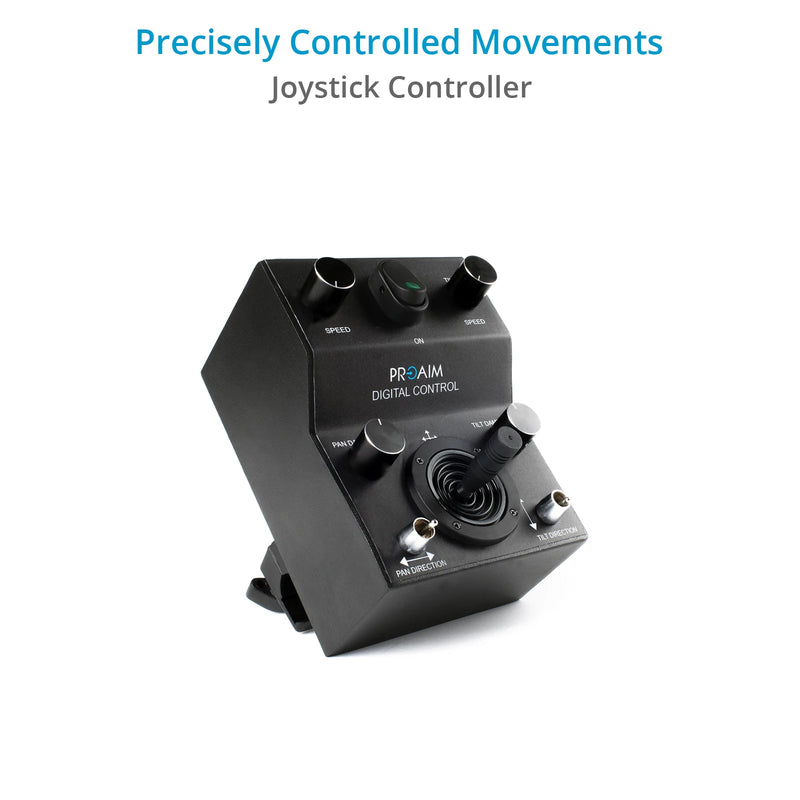

Joystick Controller

  Axis: 2
  Connectors: 2x 4-Pin XLR Male Connectors
  Pan/Tilt Direction: Yes
  Upgraded with: Damping Knob

AC Adapter Input

  AC 100-240V ; Output 12V DC-2A

Cables

  Cable Length: 15 meters (Can be extended up to 50 meters)
  Cable Connector: 4-Pin XLR
  Battery Cable: 3 meters Long

Weight

  2.7kg / 5.9lb

CST-100 TRIPOD STAND

Construction

  High-grade CNC Aluminum

Load capacity

  up to 80kg / 176lb

Diameter of Tripod Tubes

  20mm and 14mm

Length

  Maximum - 60 inches
  Minimum - 34 inches

Collapsible Height

  36 inches

Weight

  6.50kg / 14.33lb

Package Weight

  11.4kg / 25lb

Box Dimensions (LxWxH)

  39.7 x 10.2 x 9.5"

ALUMINUM SPREADER

Construction

  High-grade CNC Aluminum

Compatibility

  5kg / 11lb

Load Capacity

  360°

Spreader Height

  Two high torque, coreless DC motors that rotate the Head 360° (Pan/Tilt)

Build-up Radius

  Minimum: 6°/sec Maximum: 51°/sec
  It Covers 360° at Slowest Speed in 2 minutes
  It Covers 360° at Highest Speed in 7 seconds

Weight

  2 Small: 13.5mm (Brass)
  2 Large: 88mm (Aluminum)

Package Weight

  Cable Length: 15 meters (Can be extended up to 50 meters)
  Cable Connector: 4-Pin XLR
  Battery Cable: 3 meters Long

Box Dimensions (LxWxH)

  2.7kg / 5.9lb

PORTABLE DOLLY

Construction

  High-grade Mild Steel

Weighing Capacity

  up to 500kg / 1100lb

Tripod Foot Compatibility

  Spiked Feet

Locking Wheels

  Yes

Weight of Product

  10.7kg / 23.5lb

Package Weight

  11.65kg / 25.68lb

Box Dimensions (LxWxH)

  23.4 x 10.7 x 9.4"

IN THE BOX

Proaim 7’ Wave-2 Video Camera Crane Jib
Proaim Jr. Pan-Tilt Head (PT-JR)
12V Joystick Controller
Proaim CST-100mm Tripod Stand w/ Aluminum Spreader (CST-100-01)
Proaim Portable Dolly (P-PRT-D)
Proaim Lanc Zoom Controller (P-ZC-3DV)
75mm Conversion Ring
100mm Bowl Adapter
Flat base plate
Storage Bags
