Proaim 7' Wave-2 Jib Crane for Camera / Gimbals / Pan Tilt Heads

Proaim 7' Wave-2 Jib Crane, Dolly Stand for Camera / Gimbals / Pan Tilt Heads

Proaim 7' Wave-2 Jib Crane for Camera / Gimbals / Pan Tilt Heads

For DSLR Video Camera Setups up to 25kg / 55lb

Save 32%

₹ 50,238.00

₹ 50,238.00 - ₹ 50,238.00

₹ 50,238.00

₹ 34,379.00

₹ 34,379.00 - ₹ 34,379.00

₹ 34,379.00

SKU : P-WV-2

POWERFUL, SIMPLE & AFFORDABLE

Name: Proaim 7' Wave-2 Jib Crane for Camera / Gimbals / Pan Tilt Heads
Brand: flyfilms.in
SKU: P-WV-2
Price: 34379.0 INR
Availability: InStock

Best Travel Crane for Outdoor Extremes & Indoor Studio Shots!!

01.

PROFESSIONAL & WELL-DESIGNED JIB CRANE

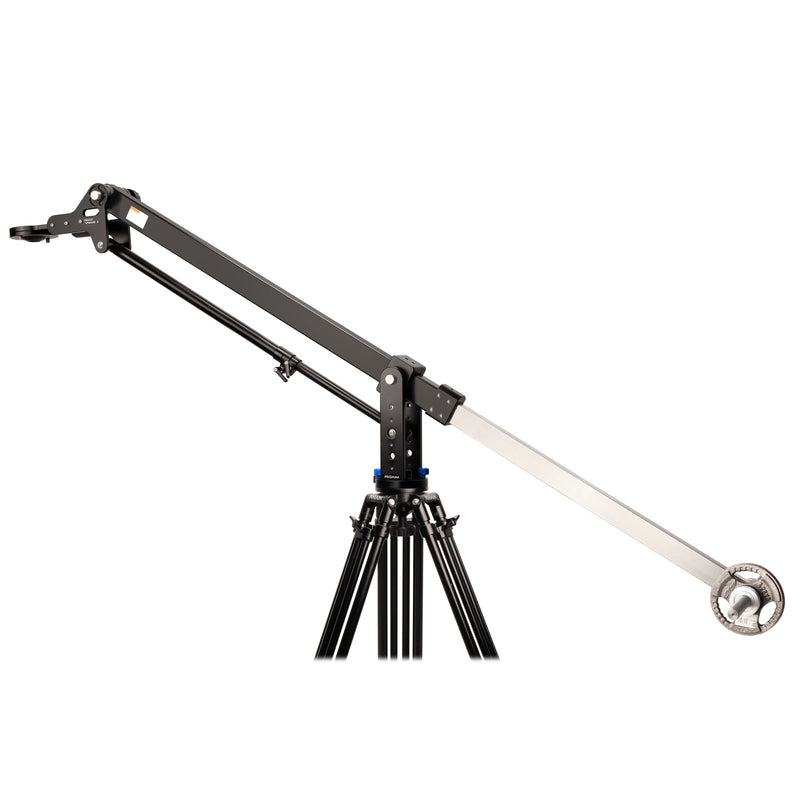

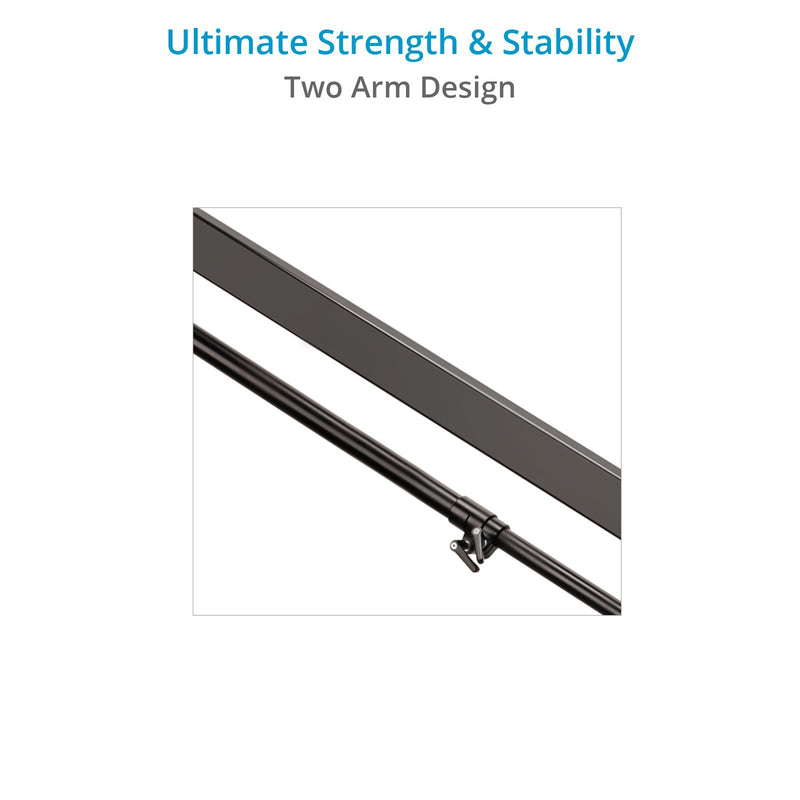

Proaim 7' Wave-2 with dual-rail design offers enhanced strength & stability for creating sweeping cinematic movements, expanding your creative flexibility.
Ease of packing and a quick no-tool setup system maximizes its versatility.
This travel-friendly Jib extends backward as per operator convenience for better control.

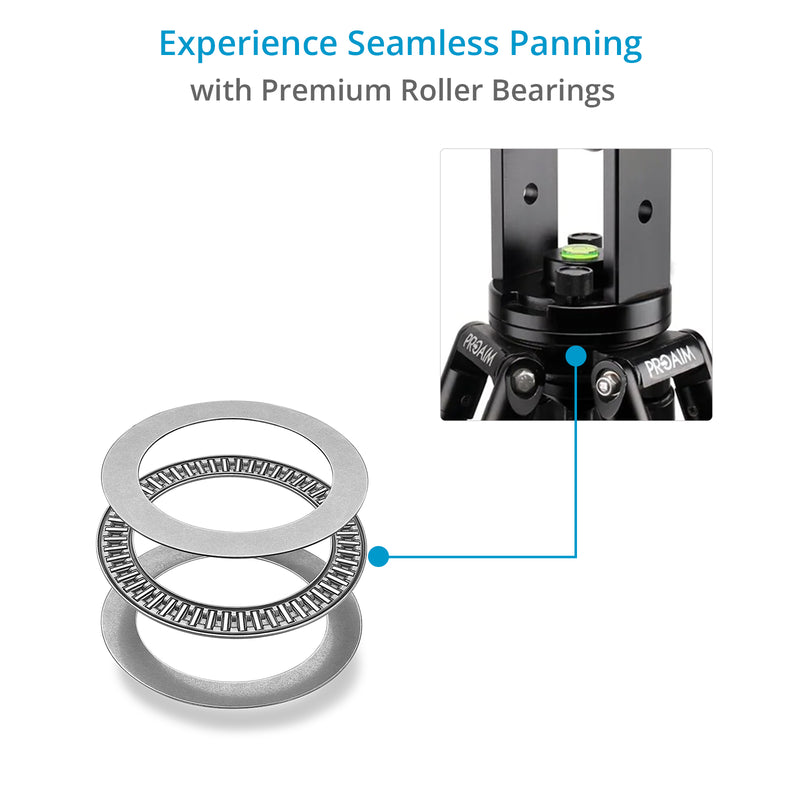

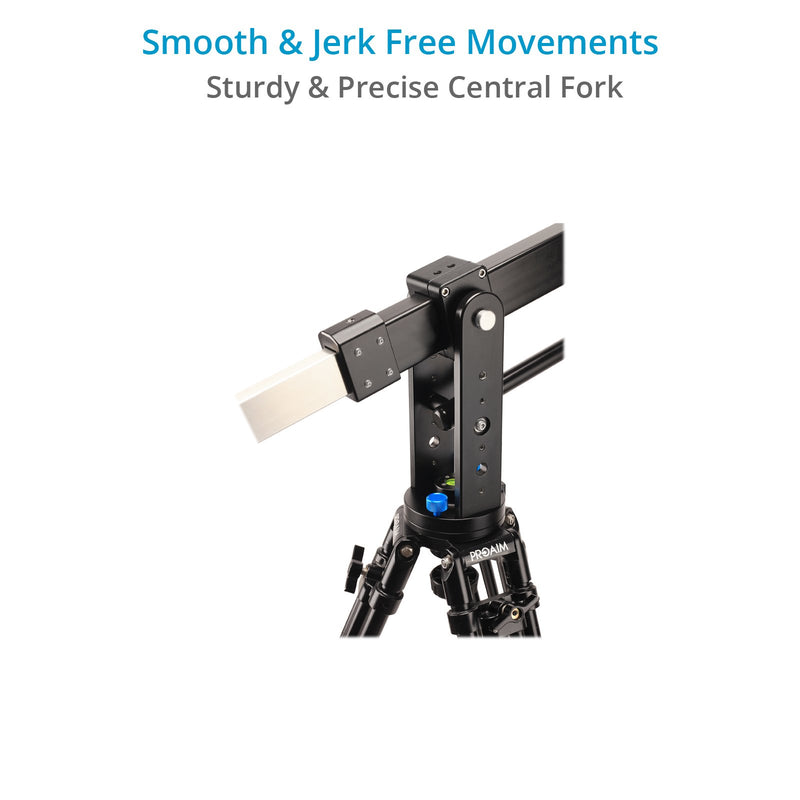

Assembly Hub Provides the perfect drag for smooth panning of the arm.

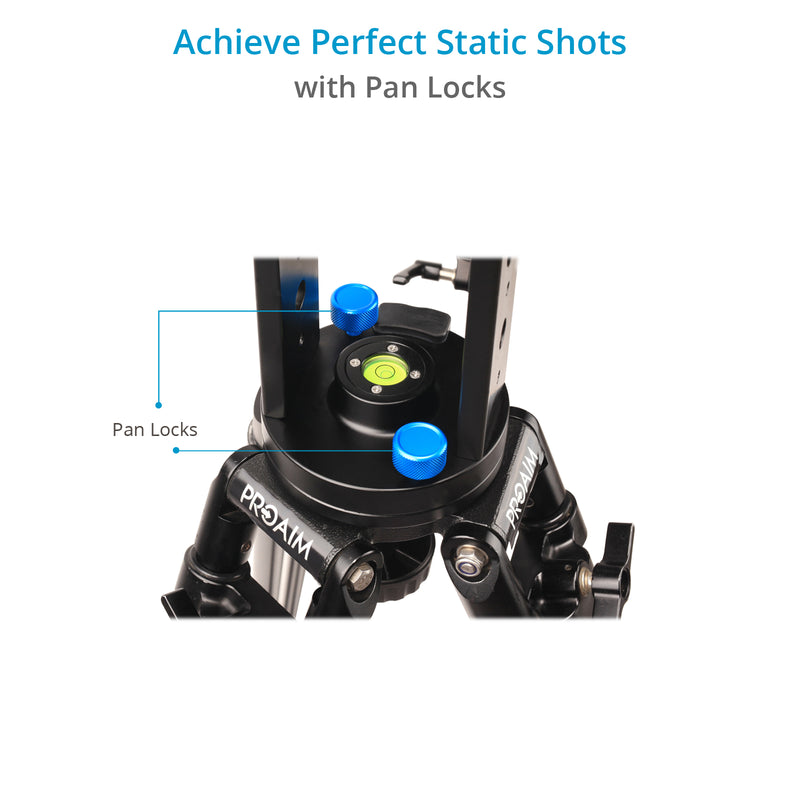

The well-built pan knobs control the panning of the Jib. Built-in bubble leveler allows for fast, accurate set up on uneven surfaces.

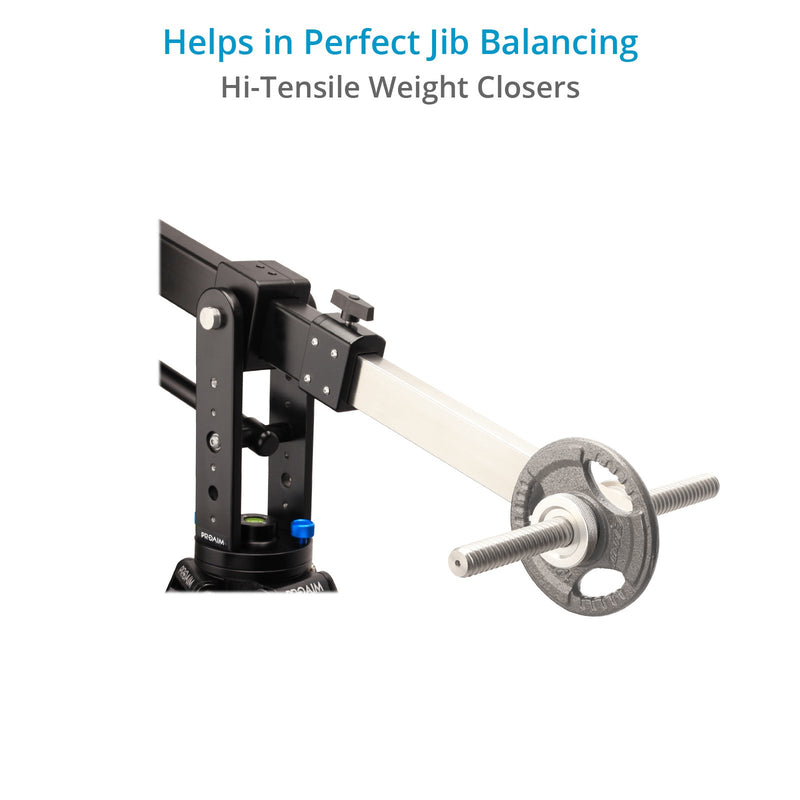

Stronger weight closers keep the weight discs intact for perfect balance.

02.

COMPATIBILITY

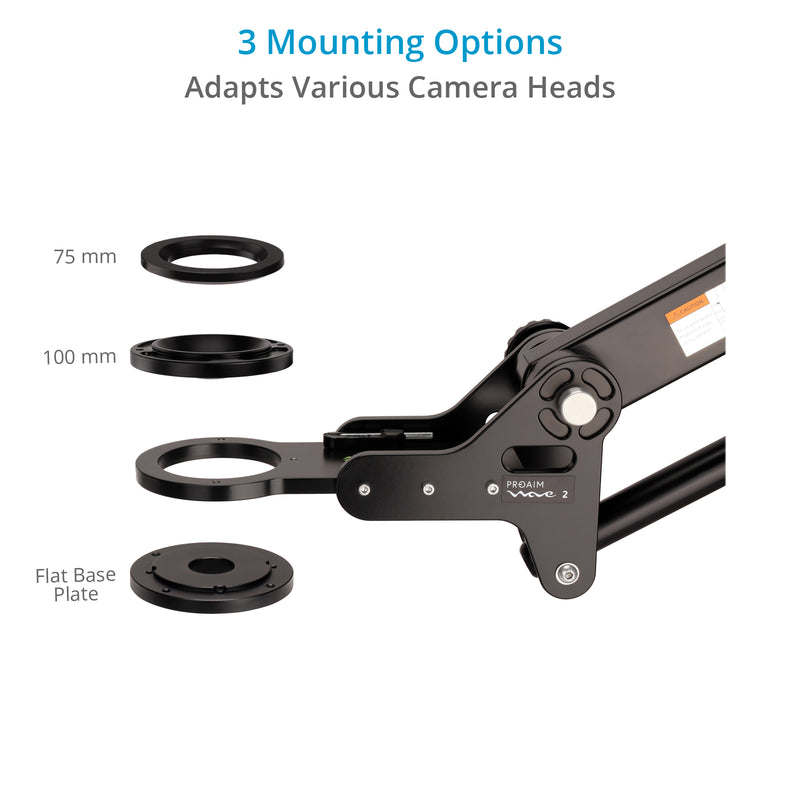

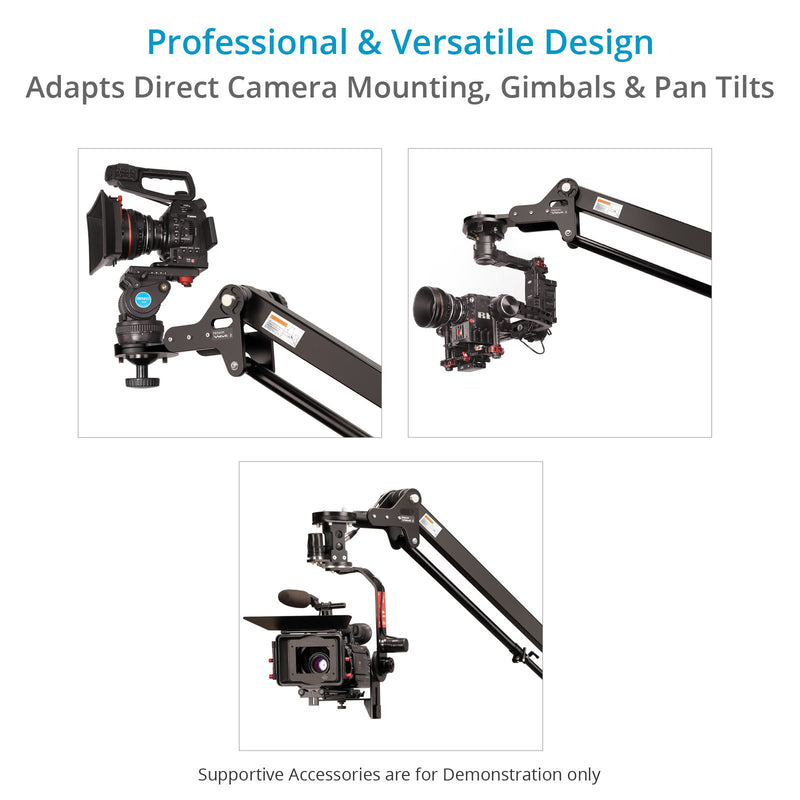

The robust camera mount confidently accepts 75mm/100mm fluid heads.
The Jib is designed to mount a camera of practically any size, weighing up to 25kg / 55lb.

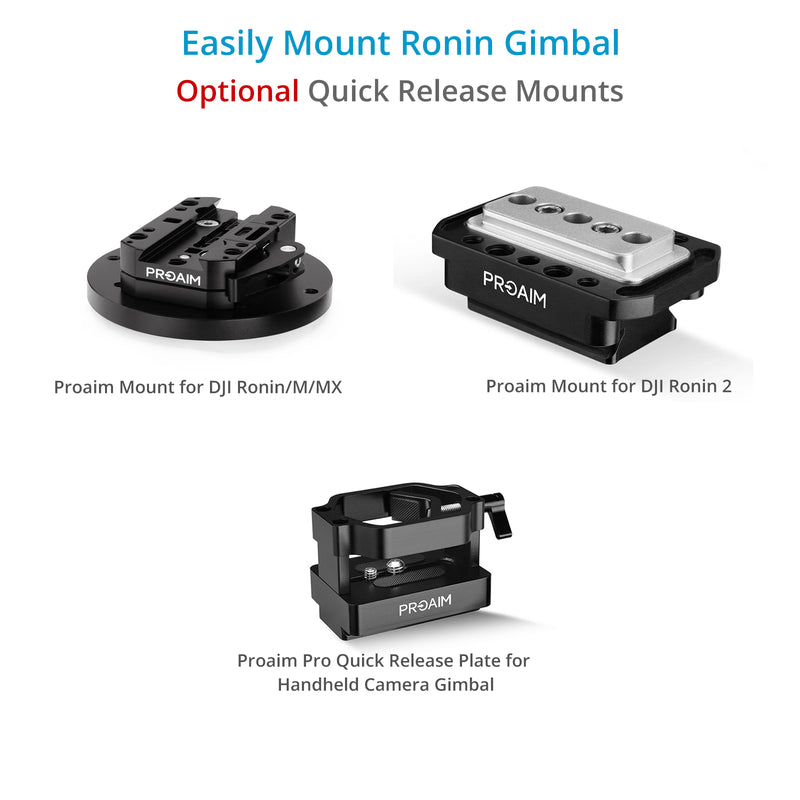

The Jib adapts Pan Tilt Remote Heads & 3-Axis Ronin/Movi Gimbals using separately available compatible adapters.

03.

AFFORDABLE JIB SOLUTION
For rigs under 55lb, there isn't a better crane for the money. Filmmakers often have to sacrifice quality for quantity when building their gear; the 7' Wave-2 eliminates that concern by providing an excellent jib solution at an economical price.

04.

SIMPLIFIED TRANSPORT

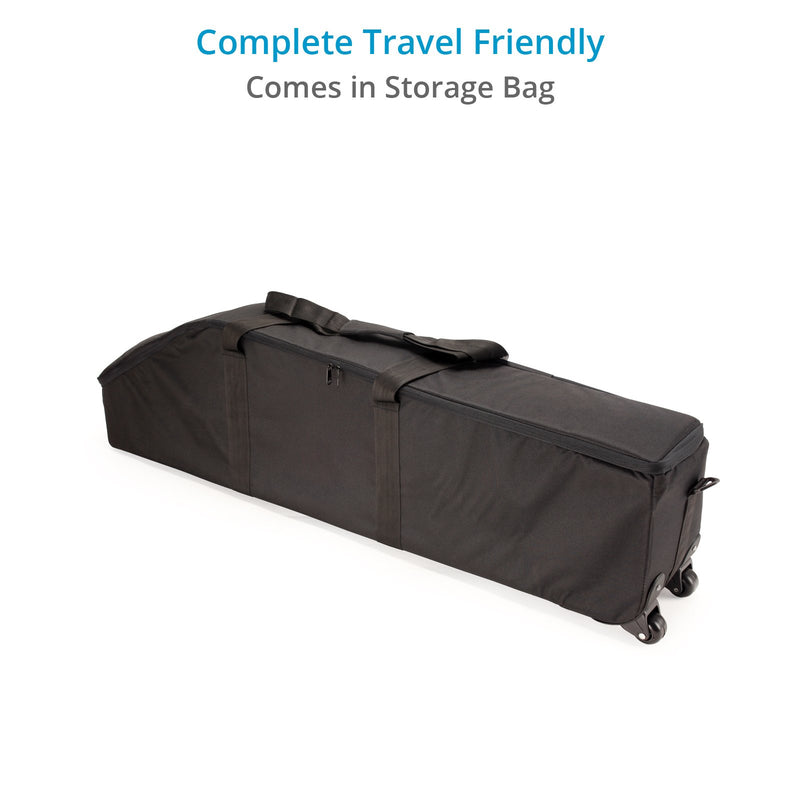

The 7' Wave- 2 comes in a foam padded storage bag to ensure full protection. This travel-friendly compact bag is easy to carry with you to different sets and locations.

IN-ACTION VIDEOS

SPECIFICATIONS

Construction

High-grade Aluminum & Stainless Steel

Load Capacity

up to 25 kg / 55 lb

Tripod mount

100mm diameter

Camera Mount

Flat base plate for Pan tilts heads
100mm and 75mm Bowl head (with ring)

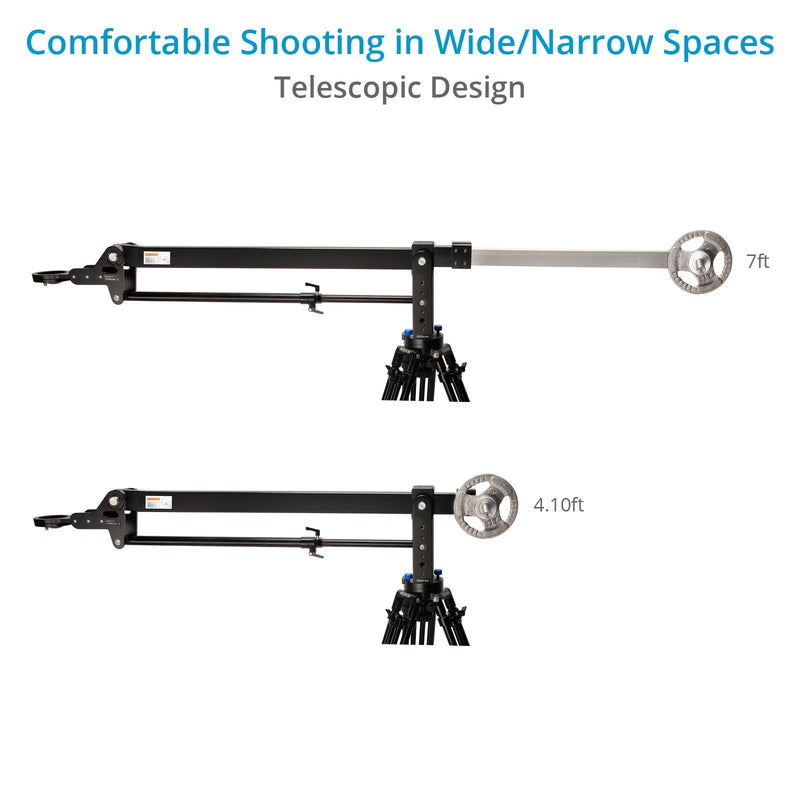

Telescopic Range

4.10 feet to 7 feet

Pan Radius

360 Degrees

Jib Pan Lock

Yes (via pan friction knobs on U-Hub)

Jib Tilt Lock

Camera Plate Tilt Lock

Yes (via adjusting the camera head plate knob and ratchet knobs on jib arm)

IN THE BOX

Proaim 7' Wave-2 Video Crane Jib
75mm Conversion Ring
100mm Bowl Adapter
Flat base plate
Storage Bag

USER MANUAL

Proaim 7' Wave-2 Jib Crane for Camera

7'WAVE AROUND THE WORLD

Guaranteed Fast Delivery
For all orders

Quick and Efficient
Customer service

Easy Returns
Up to 7 days

1-Year Warranty
On All Products

Q&A

Ask a Question

Can I achieve overhead and sweeping shots with this jib?

Yes. It is ideal for crane-style cinematic movements.
Can I adjust the balance easily during setup?

Yes. The counterweight system allows precise balancing.
Is the jib easy to assemble on set?

Yes. It features a quick, tool-free setup system.
Can I use this jib with gimbals or remote heads?

Yes. It supports gimbals and pan-tilt heads with compatible adapters.
What is the maximum payload capacity of this jib?

It supports up to 25 kg / 55 lb camera setups.
Is a tripod included in this set?

No, a tripod is not included. You can use P-WV-2SD, which comes with both the tripod and dolly.
Can this mount to a mitchell tripod?

Yes, the Jib can work with Mitchell tripods. We recommend the following adapter kit to attach the Jib to tripods with Mitchell mounting.
Proaim Multi-Adapter Kit for Camera Rigging (Mitchell, Euro/Elemac, Bowl) P-MLAK-01.
Can the telescopic arm be extend whilst filming, in a similar fashion to a sliding rail?

No, telescopic arm cannot be extended whilst filming.
Does the counterweight bar accept standard one-inch barbell weights?

Yes, the weight bar included with the Proaim Wave-2 is designed to work with standard barbell weights. It will work with 1" + weight sizes.
How would I connect the Proaim to a KUPO Heavy Duty stand with a 29mm receiver?

It is not compatible with the KUPO Heavy Duty stand with a 29mm receiver.
Can you attach the Zhiyun Crane 3S gimbal to the Wave-2 and if so which adapter is necessary.

Yes, You can mount Zhiyun Crane 3S gimbal on Proaim 7' Wave-2 Jib with the help of Flycam Quick Release DJI-QR and Proaim Quick Release plate P-QRG.

Here are the item links for your reference:
DJI-QR: https://www.flyfilms.in/products/flycam-quick-release-mount-camera-support-plate-for-ronin-m-mx?_pos=1&_sid=13cdb6d6d&_ss=r
P-QRG: https://www.flyfilms.in/products/proaim-quick-release-camera-support-plate-for-hand-held-gimbals
Concerning the Proaim 7' Wave-2 Jib Crane, what "standard" counter weights does it use?

The weight rod diameter of the Proaim 7' Wave-2 Jib Crane is 25mm. You can use any counterweight with this diameter. Here is an image for reference: https://prnt.sc/tfZ_gD8tpJEu
Can i mount the PT-SPIN-3 directly on Wave-2 Jib ?

Yes, you can direclty mount the PROAIM Spin-3 (3-Axis) Motorized Pan Tilt Head for Camera Jib Crane, Payload- 15kg/33lb PT-SPIN-3 on the Wave-2 Jib.
Can I mount DJI RS3 PRO on this jib ?

Yes, You can mount the DJI RS3 PRO on P-WV-2 (Wave-2 7ft Jib) with the help of QR-WV-710 and P-QRG.
Firstly you have to mount the QR-WV-710 on the Jib and then P-QRG, and then you can easily mount your DJI RS3 PRO.
