To add dramatic and remarkable impact to your footages, PROAIM comes forward with its Lightweight, Versatile 9ft camera crane video production package that allows you to smoothly move your camera up and down and in indefinite number of 360 degree arcs. The aluminium constructed, ribbed section jib crane makes it surprisingly strong and robust.
Unique Swivel System allows smooth slides & avoids disturbing swings during movement. Exclusively designed to fit in tight spaces or be raised up for taller ceilings, getting you amazing overhead shots. There is lot more in the crane jib package, a rugged tripod stand that acts as a supporter for your steady shots, a durable pan-tilt head to capture every creative angle, and power bank for continuous power supply.
"WHAT YOU SEE IS WHAT YOU GET"Power Pack is not included
- Solid CNC machined Aluminum constructed jib arm for high durability.
- Tilting movements can be achieved with the control handle.
- Double Arm Section for maximum stability and minimum wobble.
- Uses standard household style exercise weights (1 inch hole) (not included).
- Stronger weight bar to easily achieve counter balance.
- Breaks down into two small easily transported sections.
- 2 axis motorized Head with high torque motors.
- 360 degree panning and tilting to capture numerous angles.
- Quick, Flexible & dynamic champion for all locations.
- Consistent run speed even at slowest setting.
- Power Pack for continuous power supply.
- Stable, Non slip feet Tripod stand.
- Portable and easy to carry.
- 100% Satisfaction Guarantee.
View More Videos Here
HIGH CAPACITY CAMERA BASE PLATFORM
CENTRAL FORK TO HOUSE HEAVY AXIAL LOADS AND SHOCK LOADS
RIBBED SECTION CAMERA CRANE ARM BODY FOR HIGH STRENGTH
LOCKING PINS FOR STABLE OR MOVING SHOTS
LCD MOUNTING PROVISION
PROAIM JR. PAN AND TILT HEAD
Uniquely designed for DV, HDV and broadcast cameras weighing upto 5kg /11 lbs or less. Our Mot orized Proaim Junior Pan-Tilt head offers 360 degree endless panning and tilting movements with reversal points.
-Runs on 12V DC power produced by the included A/C adapter or also accepts external 12V DC battery power through the included 3mtr long 4 pin XLR cable for outdoor shooting.
-You receive the Pan-Tilt Head with assembled wiring for Top and Bottom Motor.
-To install Power out to head (4 pin connector) and 12 volt DC power (4 pin XLR) in rear of joystick box.
- The Joystick control system includes a 7.5 mtr. long operating cable and AC adapter.
- Operational from a flat surface in handheld mode or when attached to the bottom of the jib arm.

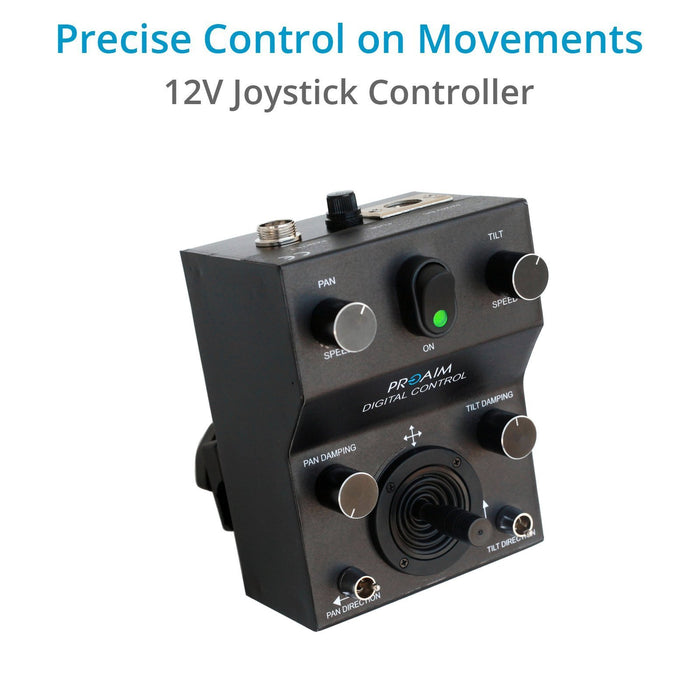

Smooth, accurate, proportional joystick control for outstanding footages
Superb Proportional Control
- Joystick has proportional linear movement i.e. farther you move the joystick, the faster the head moves.
- Joystick is touch sensitive:
Small movement – less speed,
More movement – more speed.

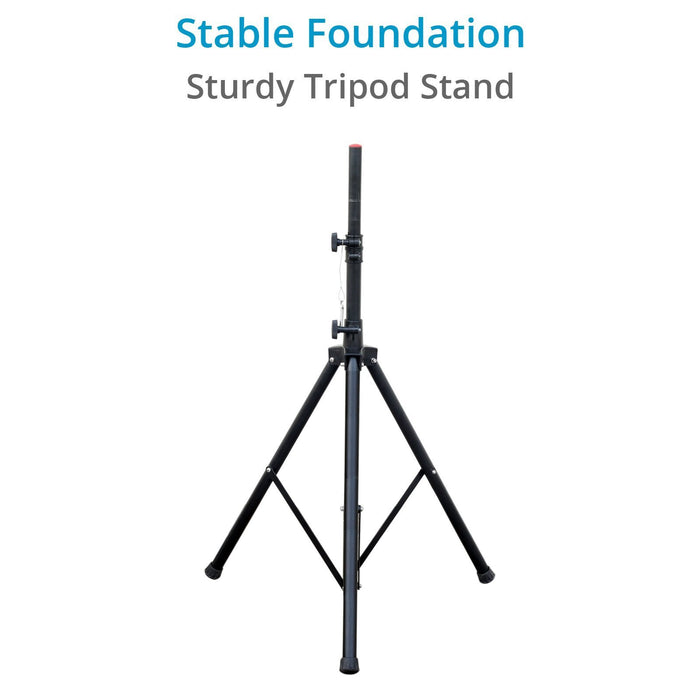

HEAVY DUTY STAND
The Heavy duty Jib Stand is constructed to carry heaviest of loads with an ease. The Sturdy base ensures strong connection between the jib crane and tripod stand, extra solid knobs for secure locking. The high strength stand acts as a supporter for all time stable shots.
FREE PROAIM PRO LCD-003 7" MONITOR KIT
The Proaim 7" Widescreen Color TFT LCD Monitor displays 4:3 and 16:9 widescreen and works perfectly with dv/hdv/dslr camcorder or any other camcorder which is lacking an external LCD screen. Our Proaim LCD screen has a high resolution, ensures sharp focus, the LCD screen displays 480 x 234 pixels.. It is fully compatible with NTSC & PAL. The LCD features AC-DC Power Adapter, Remote Control, direct connecting AV cables, Rechargeable Battery Pack, Headphone Jack etc.This monitor is compact enough for camera top mounting or attaching to a tripod or crane, jib or arm. - It includes male RCA jacks for a direct connection to your camera without adapters.
- Male RCA jacks for a direct connection to your camera without adapters.
- 16:9 or 4:3 Adjustable Display widescreen
- Compatible with most Digital SLR and HD DV Cameras including Sony, Nikon, Canon, Panasonic, JVC.
- Headphone jack
- High output stereo speakers.
- Full functional Remote control
- NTSC & PAL Compatible
- Battery attachment on back of LCD itself
- LCD stand for tabletop mountingl
- Antenna Mounting
- Attaches to camera's accessory shoe
- On-board AV input
COMPLIMENTARY TOOLS AND TOOL POUCH/WRAP
This tool / accessory roll pouch provides Rapid Access to Various Tools such as Allen Keys or wrenches. This premium quality tool roll has 10 Various Pockets to neatly organize a variety of hand tools so you can work quickly and efficiently.
Easily pack your tools in custom soft pouch
Sophisticated system to perform smooth camera movement

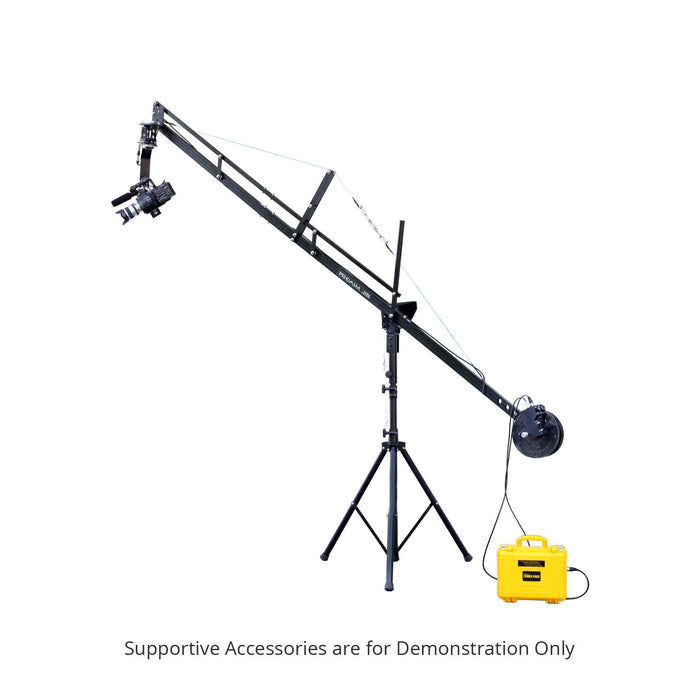

The Supportive accessories are for demonstration purpose only.
|9FT RIBBED JIB CRANE SPECIFICATIONS|
Length : 355mm Dia : 25mm
The 9ft jib arm itself balances at about 3kg. Just multiply the weight, of the additional items you will put on the end of the arm, by 3 and you will know how much weight to buy.
Buy a few extras in case you add other accessories.
CAMERA JIB STAND
- Made of Powder coted mild steel
- Base spread - 32"- 48"
- Height adjustment - 44"- 80"
- Completely collapsed height - 46"
- Outer Dia of top part of Stand - 50mm
- Makes the camera jib arm stable & solid as a rock
- Safety Pin for Secure Pole
- Weight capacity of the stand is 200lbs (90kg)
|PAN TILT HEAD - SPECIFICATIONS|
Slowest Speed : 2 minutes
Highest Speed : 7 seconds
2- Small Brass Gears (Dia-13.5mm)
- 9ft Camera Jib (P-9)
- Jib Stand (TP-208-00)
- Jr. Pan Tilt Head (PT-JR)
- Joystick control
- FREE Proaim Pro LCD -003 7'' monitor kit (LCD-003)
