Precisely Control The Movement Of Slider At Your Fingertips!

01.

HIGHLY FUNCTIONAL

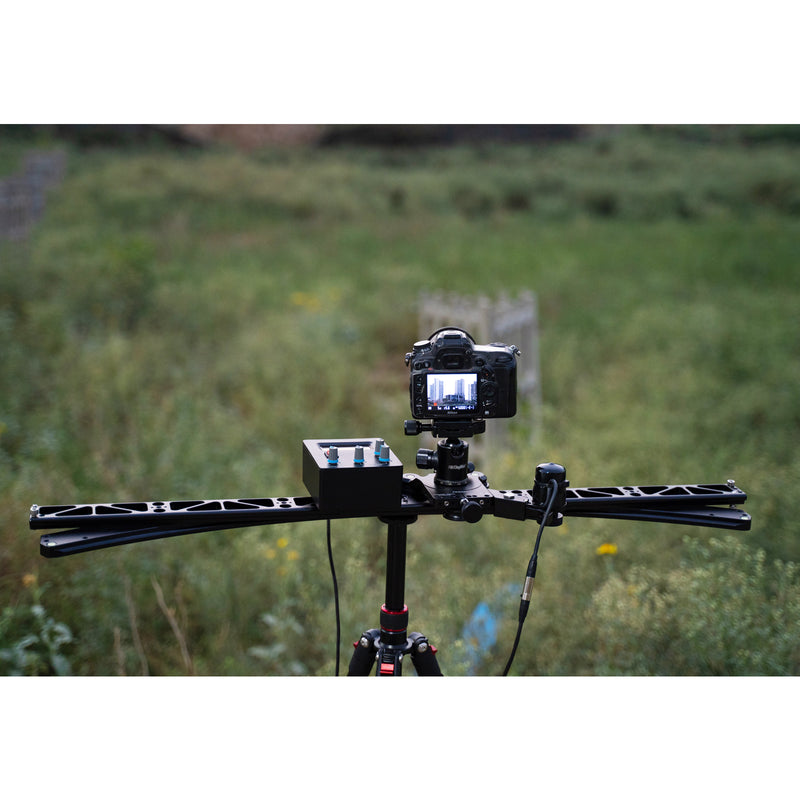

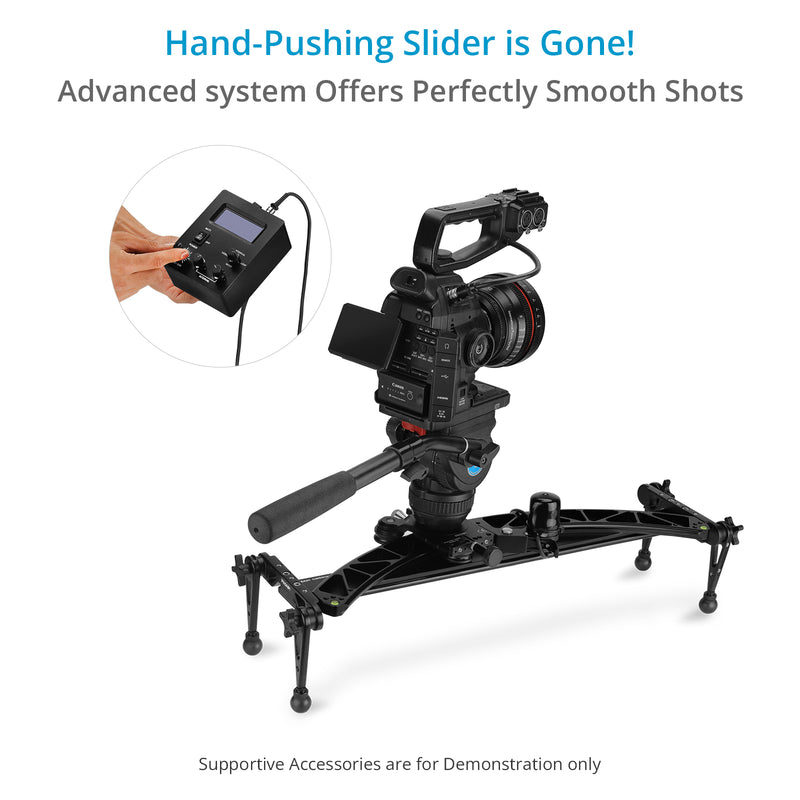

Control the movement of your slider at your fingertips with Proaim’s Advanced Motion Control System, which is exclusively designed to use with Proaim Curve-120, Curve-180, Curve-N-Line, and Line Camera Sliders.
The controller lets you program precise, smooth, incremental camera movements best suited for the interviews, establishing shots, and more.
Likewise, when combined with the slider, this versatile system facilitates fluid motorized slides, thus creating dynamic video and photography sequences.

02.

EFFORTLESS, GLIDING MOVES

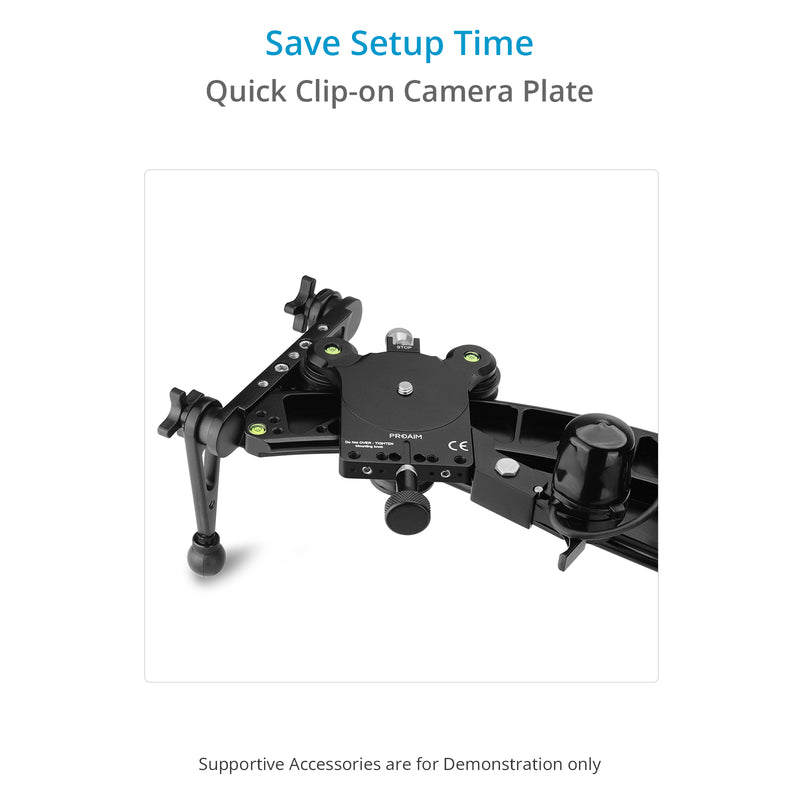

The firm quick-release camera plate is compatible with straight and curved track sliders and connects easily without removing the end feet.

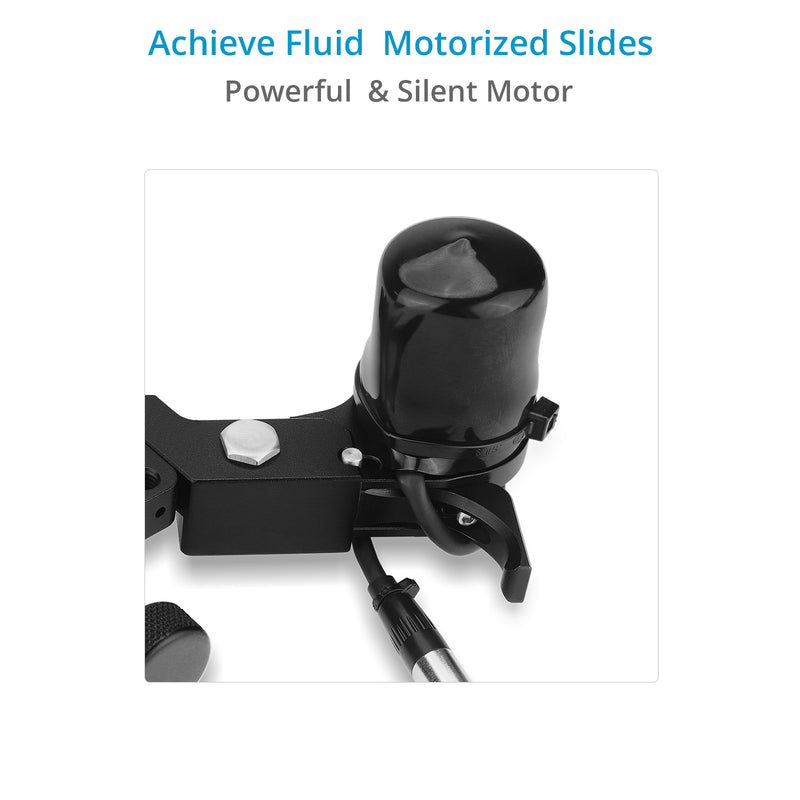

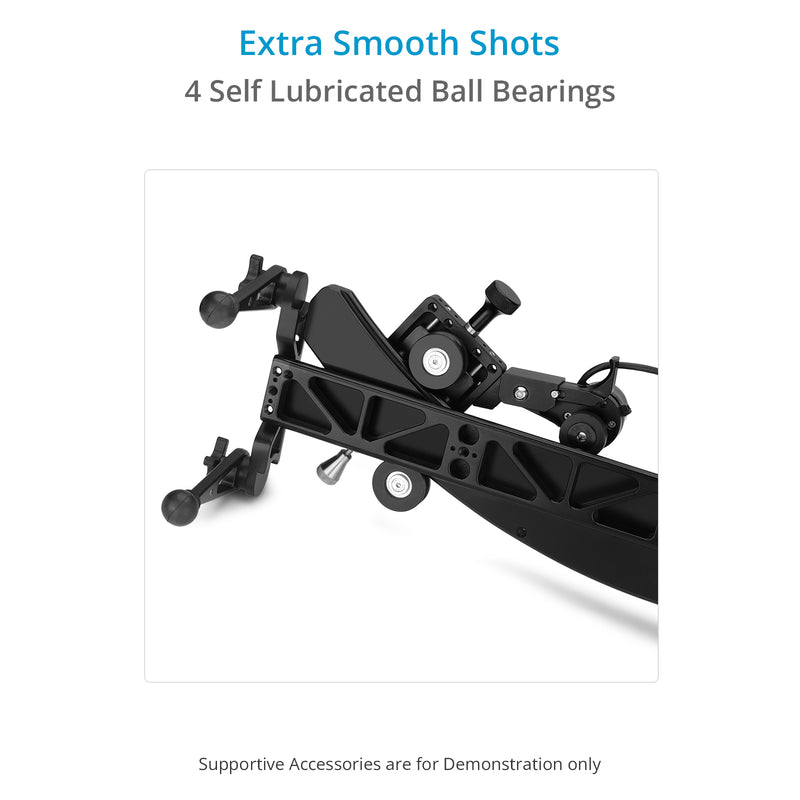

The camera plate, powered by a quiet precision motor, glides effortlessly with a 5kg / 11lb payload using high-end sealed bearings.

03.

PRECISE MOVEMENT CONTROL
1. Video Mode:
In this mode, you can set the speed level from 1 to 10 using the Speed knob. For instant direction change, use the centre knob by rotating it clockwise or counter clockwise.
2. Interval Mode:
In this mode, you can set the slider's travel distance according to its length (600 / 900 / 1200 mm) using the Speed/Direction knob. Direction control is also handled via the same knob. The side knob is used to control both the distance and pause time between movements.
a.) Length (in mm) – Adjust the total length of camera travel on the slider from 600/900/1200 mm, through the Speed/Direction dial.
b.) Distance (in mm) – Decide the Distance of each segment, from 1-300mm, to be covered on the total chosen length through the right Interval dial.
c.) Pause (in sec) – Set the period of short breaks, from 1-999 seconds, according to your needs while the camera travels on chosen length through the left Interval dial. The number of breaks is automatically aligned when both Length & Distance parameters are tuned and are achieved by advanced algorithms programmed within the controller
3. Loop Mode:
This mode offers fully pressure-sensitive control. The system automatically changes direction when it reaches a stopper or end point. You can place stoppers as needed to define the range of motion. In this mode, only the Speed knob is used to control movement speed.

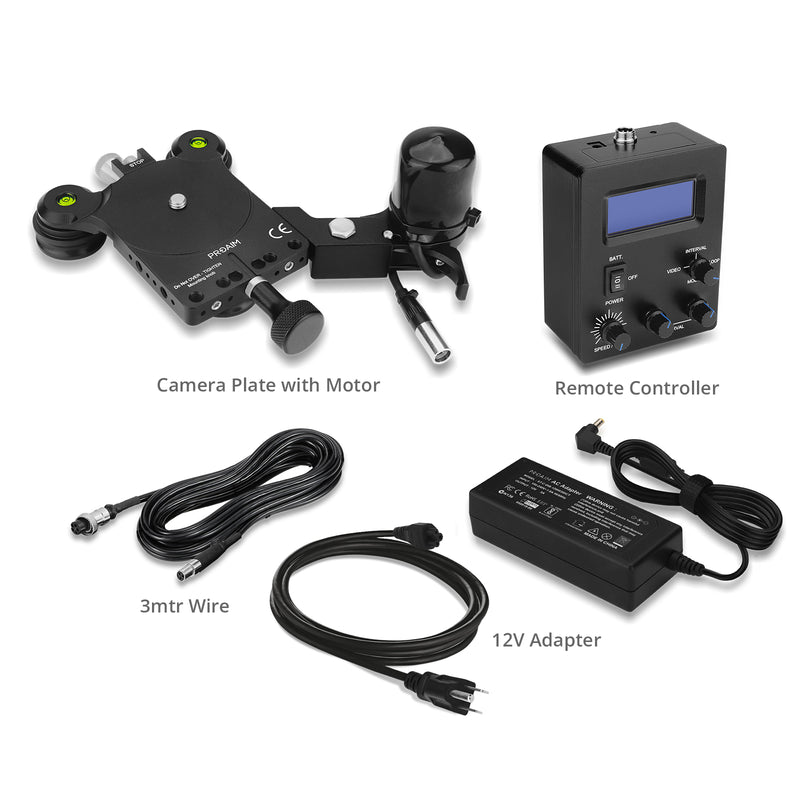

Proaim Motion Control System

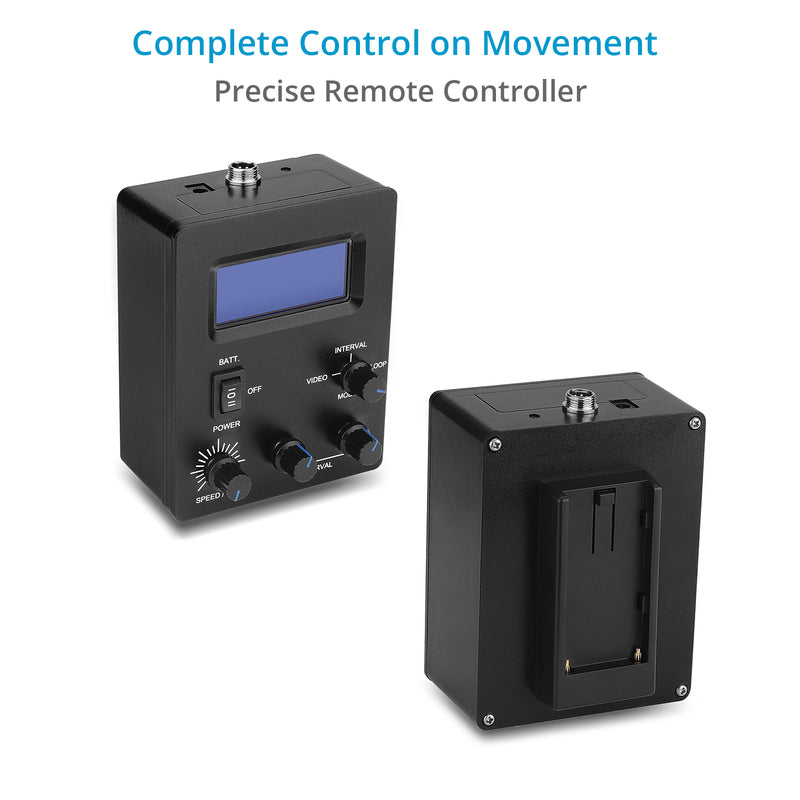

Remote Controller
3 meter wire
12v Adapter
