Proaim Alphabet 21ft Camera Jib Crane Package with Tripod, Dolly & Pan/Tilt Head

Sold out
Original price ₹ 172,792.00 - Original price ₹ 172,792.00
Original price
₹ 172,792.00
₹ 172,792.00 - ₹ 172,792.00
Current price ₹ 172,792.00
SKU : P-A21-JCP

01.

PROFESSIONAL. STRONG. LIGHT. SMOOTH.
Proaim Alphabet is designed for videographers and cinematographers who need a lightweight and ultra-portable Crane system.
The Alphabet jib has many great features such as tool-less assembly, tilt brake, reinforced jib sections & variable lengths, making it one of the most value for money jib.

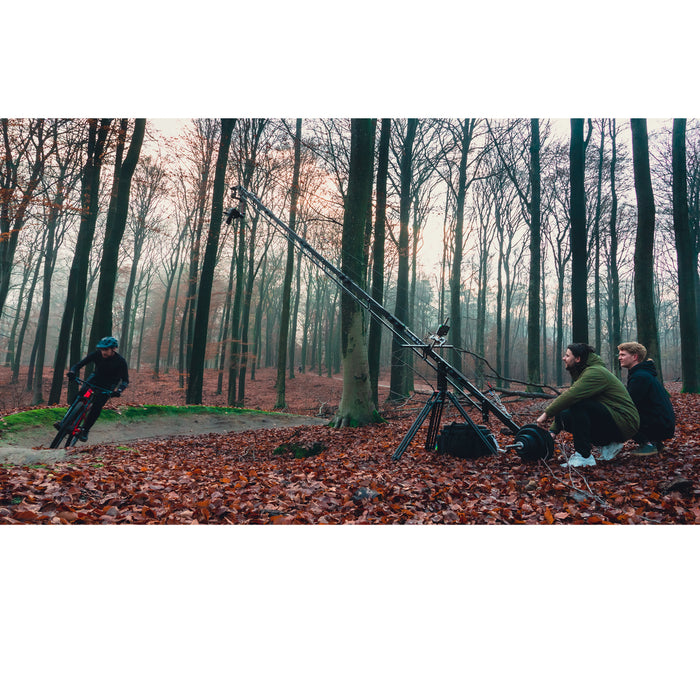

It allows to capture smooth, dynamic sweeping pans and camera rises.

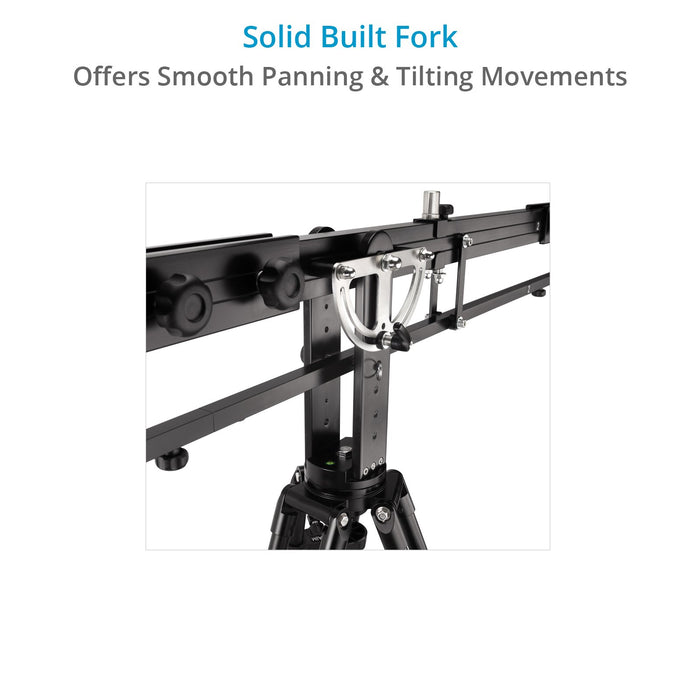

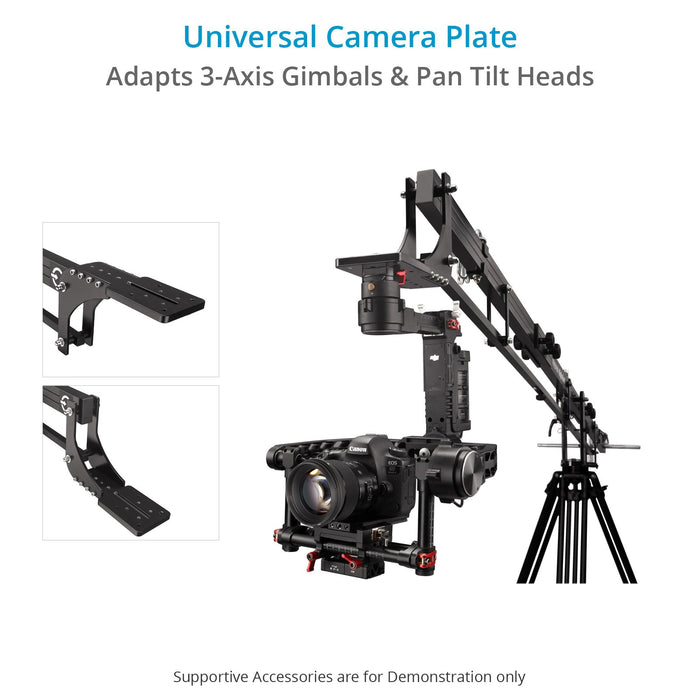

The Jib has Universal front mounting to adapt Pan Tilt Heads and 3-Axis Gimbal Stabilizers.

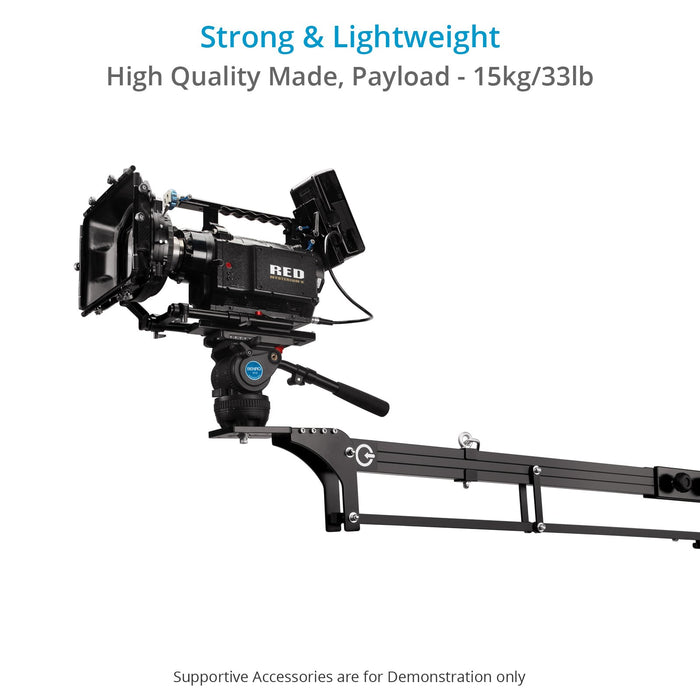

High strength Aluminum construction with unbeatable stability holds camera setups up to 15kg / 33lb.

Proaim Alphabet 21ft Camera Jib Crane Package with Tripod, Dolly & Pan/Tilt Head
Proaim Alphabet 21ft Camera Jib Crane Package with Tripod, Dolly & Pan/Tilt Head

02.

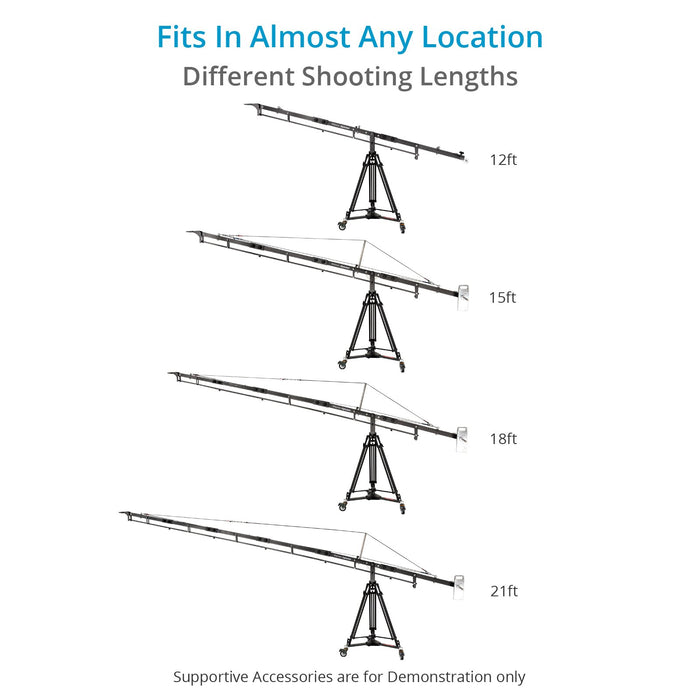

ADAPTABLE LENGTHS
You can adjust the arm length from 12 feet to 21 feet by easily adding or removing the jib sections.
The ability to change the length allows you to use the Crane in various scenarios.

03.

MOST AFFORDABLE JIB SOLUTION
For rigs under 15kg/33lb, there isn't a better crane for the money. Filmmakers often have to sacrifice quality for quantity when building their gear; the Proaim Alphabet eliminates that concern by providing an excellent jib solution at an economical price.

Proaim Alphabet 21ft Camera Jib Crane Package with Tripod, Dolly & Pan/Tilt Head
Proaim Alphabet 21ft Camera Jib Crane Package with Tripod, Dolly & Pan/Tilt Head

04.

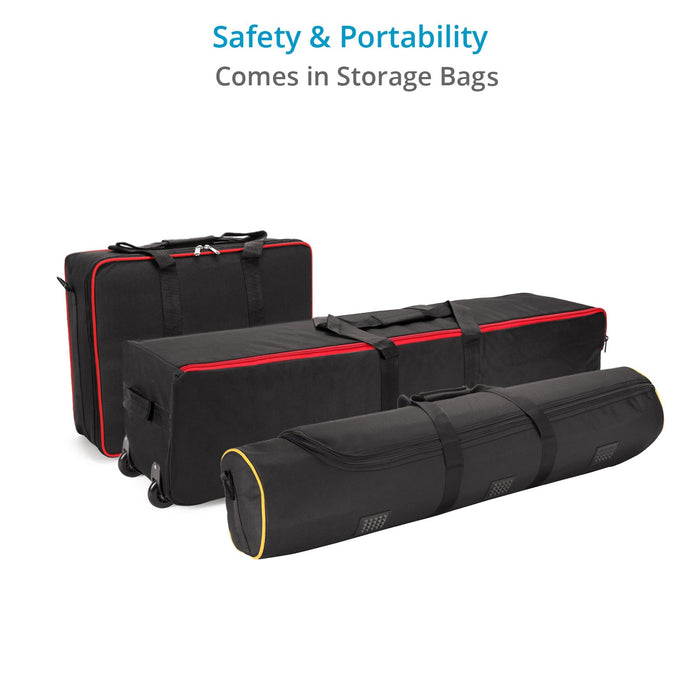

SIMPLIFIED TRANSPORT
The Complete Crane System fits in bags for easy storage. These compact bags are easy to carry with you to different sets and locations.

05.

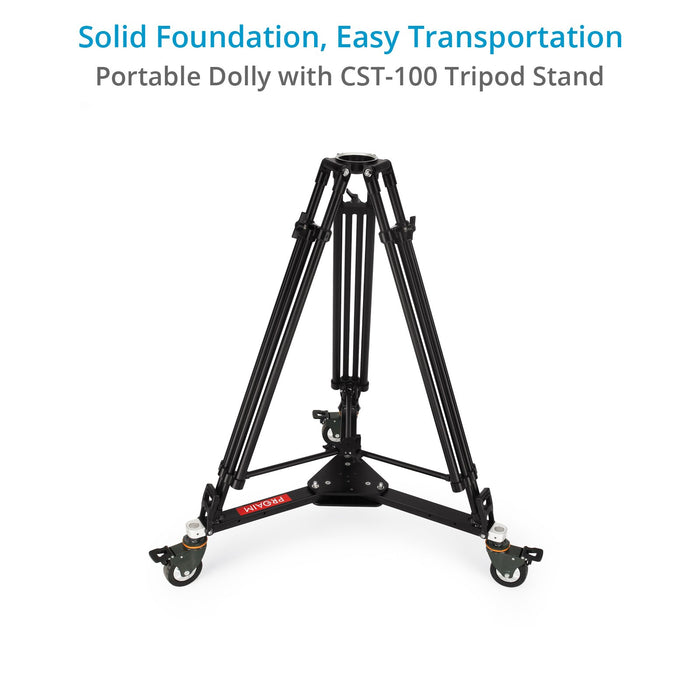

SOLID FOUNDATION FOR ALPHABET CRANE
This excellent combination of Proaim 100mm Tripod Stand and Portable Camera Dolly is sturdy enough to support the Crane when it's fully loaded and weighed.
It combines high-quality materials, technological expertise and superior design to provide ideal support needed to take the perfect shots.
The Tripod supports an incredible payload of up to 80kg/176lb and is highly stable in use. Heavy-duty Dolly gives movement to the Crane mounted on the Tripod and easily takes payloads up to 500kg/1100lb.
The main features of Dolly are – Secure Tripod feet holders, locking brakes, high quality wheels and foldable design.

Proaim Alphabet 21ft Camera Jib Crane Package with Tripod, Dolly & Pan/Tilt Head
Proaim Alphabet 21ft Camera Jib Crane Package with Tripod, Dolly & Pan/Tilt Head

06.

ENHANCE YOUR CREATIVE VISION

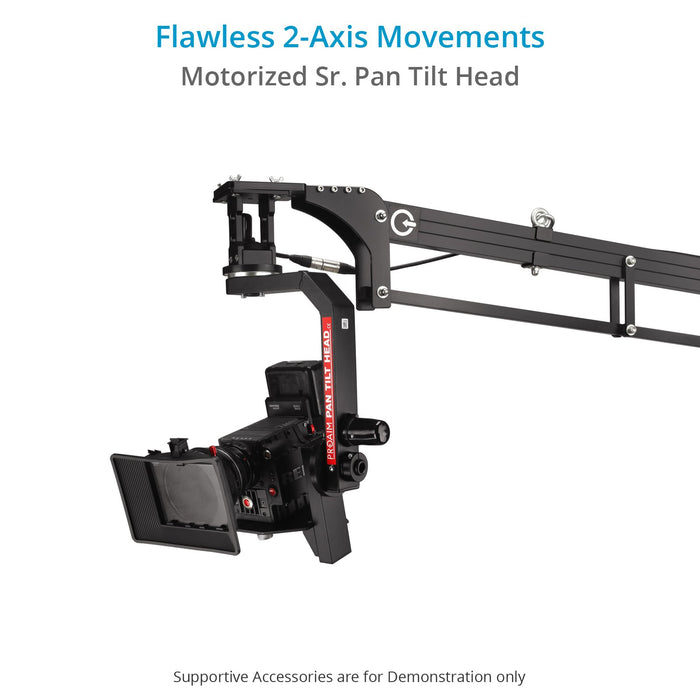

Proaim Sr. Pan Tilt Head
Proaim Sr. Pan tilt offers complete 360-degree pan & tilt inaudible movements while keeping your camera safe and secure. It is engineered to support cameras up to 7.5kg/ 16.5lb with ease. Creative flexibility is a built-in feature as the Pan Tilt head can be used with jib crane arms, tripods and in other remote operating situations that dictate increased production value. Incredibly accurate and easily controllable, Proaim Sr. Pan tilt is a user-friendly Controller System.
Two Coreless Motors
Two coreless high torque motors provide inaudible movements along with a payload capacity of 7.5kg/16.5lb, which is substantially higher than its counterparts.
Brass Gears
The high strength brass gears are engineered to withstand long hours of functions and minimal wear and tear.

07.

EASY OPERATION
Speed Controller
Speed Controller adjusts the speed of pan & tilt based on the requirement of the shot.
Damping Control
Damping control prevents the head from stopping with a jerk enabling you to achieve smooth endings.
Pan-Tilt Direction
You can reverse the panning & tilting direction as & when required.

Proaim Alphabet 21ft Camera Jib Crane Package with Tripod, Dolly & Pan/Tilt Head

IN-ACTION VIDEOS

SPECIFICATIONS

ALPHABET 21' JIB

Construction

  Jib Arm - High-grade CNC Aluminum

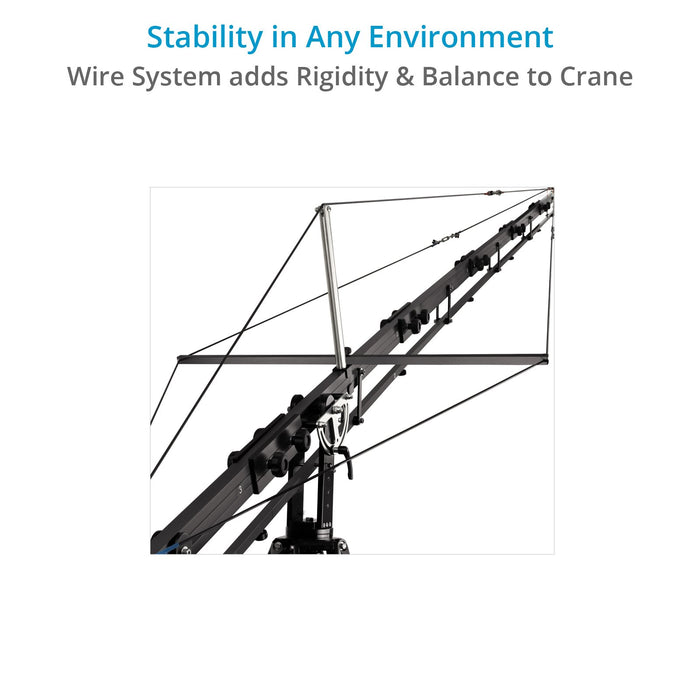

  Cable System - Stainless Steel

Load Capacity

  up to 15kg / 33lb

Maximum Length

  21' / 6.4 meter

Tilt Lock

  Yes

Pan Lock

  Yes

Panning Range

  360°

Self-Balance

  27kg / 59lb

Packaging Info

  Package Weight: 35.400kg / 78.04lb
  Box Dimensions (LxWxH): 141 x 37 x 33 cm / 55.5 x 14.56 x 12.99 inch

CST-100 STAND

Construction

  High-grade CNC Aluminum

Load capacity

  80kgs /176lbs

Diameter of tripod tubes

  20mm and 14mm

Maximum length

  60 inch

Minimum length

  34 inch

Collapsible height

  36 inch

Tripod Weight

  6.50kg / 14lb

Package Weight

  11.4kg / 25lb

Box Dimensions (LxWxH)

  39.7 x 10.2 x 9.5 inch

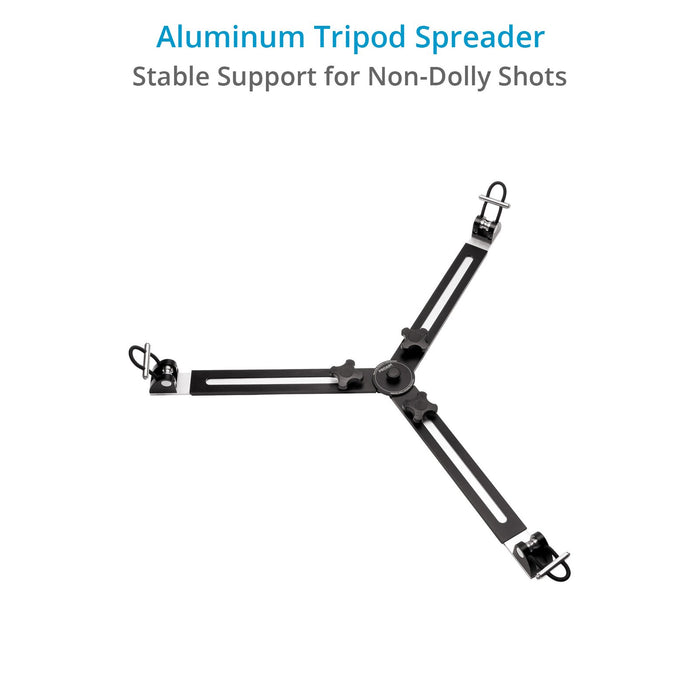

SPREADER

Load Capacity

  400kg / 880lb

Spreader height

  50mm / 2inch

Build up radius

Proaim Alphabet 21ft Camera Jib Crane Package with Tripod, Dolly & Pan/Tilt Head

Compatibility

  All Tripods with Twin Spiked Feet

Product weight (without packing)

  2.47kg / 5.44lb


BALANCING CHART

ALPHABET 21FT JIB

  Length : 21ft
  Camera Plate Length : 0.8ft
  Length without Camera Plate : 20.6ft
  Length with Camera Plate : 21.4ft (Complete Length)

Camera Weight Without Camera 1kg 15kg

Counter Weight

28kg

(28+4.2)=32.2kg

91kg

ALPHABET 18FT JIB

  Length :18ft
  Camera Plate Length : 0.8ft
  Length Without Camera Plate : 17.15ft
  Length With Camera Plate : 17.95ft (Complete Length)

Camera Weight Without Camera 1kg 15kg

Counter Weight

16kg

16+3.5=19.5kg

68.5kg


ALPHABET 15FT JIB

  Length : 15ft
  Camera Plate Length : 0.8ft
  Length without Camera Plate : 13.72ft
  Length with Camera Plate : 14.52ft (Complete Length)

Camera Weight Without Camera 1kg 15kg

Counter Weight

7kg

(7+2.25)=9.25kg

41kg

ALPHABET 12FT JIB

  Length: 12ft
  Camera Plate Length : 0.8ft
  Length without Camera Plate : 10.3ft
  Length with Camera Plate : 11.1ft (Complete Length)

Camera Weight Without Camera 1kg 15kg

Counter Weight

No need counter weight , it is balanced with

weight rod whose weight is 3.2kg

Weight Rod + 1.5 Kg

22.5kg

SR. PAN TILT HEAD

Construction

  High-grade CNC Aluminum
  Industrial Grade Electronic Components

Pan and Tilt

  2 Axis

Motor

  Motor Two high-torque coreless DC motors that pan & tilt the head through 360 degrees.

Panning Range

  360°

Tilting Range

  360°

Load Capacity

  7.5 kg / 16.5 lb

Height Adjustment

  Minimum height of head - 17"
  Maximum height of head - 26"
  Camera platform height can be adjusted at any point.

Rotation Speed

  360° Pan and Tilt: At Slowest Speed: 2 Minutes
                              At Fastest Speed: 7 Seconds
  Operates consistently at any speed without stopping.

Variable Speed Control

  Low Speed: 6 degrees/second
  High Speed: 51 degrees/second

Power Input

  100 to 240 V AC

Power Output

  12 V DC, 2 A

Control Input

  4-Pin XLR

Weight

  3 kg / 6.6 lb

Package Weight

  7.7 kg / 16.97 lb

Box Dimensions (LxWxH)

  22.3 x 15.3 x 7.3 inch

PORTABLE DOLLY

Construction

  High-grade Mild Steel

Load Capacity

  500kg / 1102lb

Tripod Foot Compatibility

  Spiked Feet

Locking Wheels

  Yes

Weight

  10.7kg / 23.59lb

Package Weight

  11.65 kg / 25.68 lb

Box Dimensions (LxWxH)

  23.4 x 10.7 x 9.4 inch

IN THE BOX

6 x Jib Sections
1 x Support Rod
1 x Cable Guide
1x Weight Rod with Weight Closer
8mm Male Female Knob Set
10mm Female Knob
3/8" Male Knob
Handle
1 x (Red) 11ft
1 x (Red) 6.7ft
1 x (Red) 3.3ft
2 x (Blue) 11ft
2 x (Blue) 6.7ft
2 x (Blue) 3.3ft
Jib Stand with Aluminum Spreader (CST-100-01)
Sr. Pan Tilt Head (PT-SR)
Lineo Portable Camera Dolly (P-PRT-D)

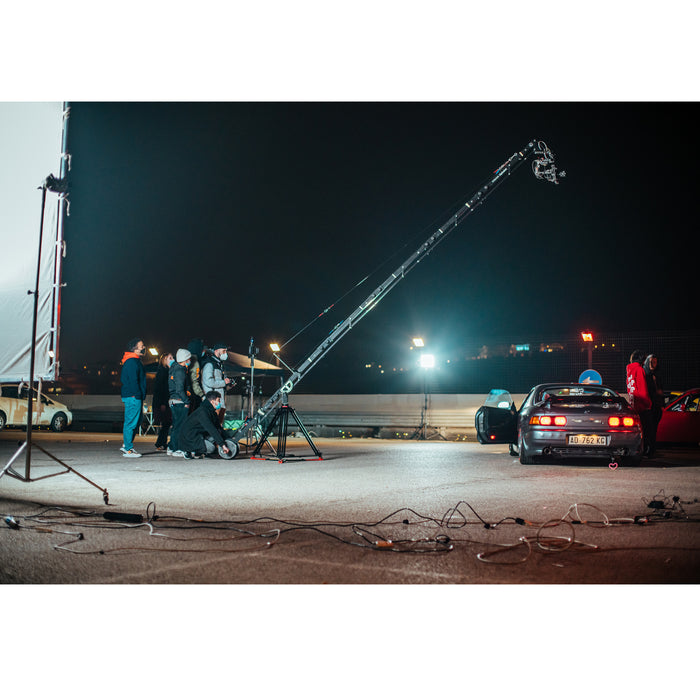

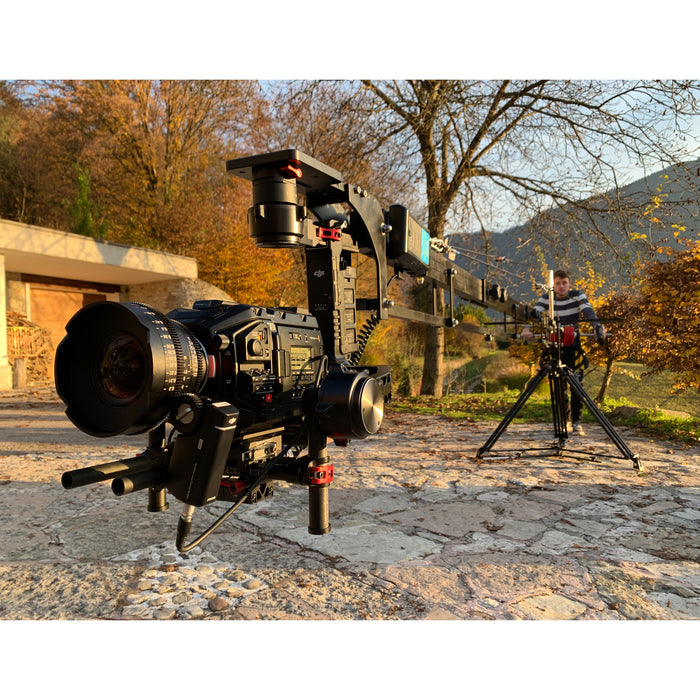

ALPHABET 21' JIB AROUND THE WORLD

Proaim Alphabet 21ft Camera Jib Crane Package with Tripod, Dolly & Pan/Tilt Head
Proaim Alphabet 21ft Camera Jib Crane Package with Tripod, Dolly & Pan/Tilt Head
Proaim Alphabet 21ft Camera Jib Crane Package with Tripod, Dolly & Pan/Tilt Head
Proaim Alphabet 21ft Camera Jib Crane Package with Tripod, Dolly & Pan/Tilt Head
Proaim Alphabet 21ft Camera Jib Crane Package with Tripod, Dolly & Pan/Tilt Head

Guaranteed Fast Delivery
For all orders

Quick and Efficient
Customer service

Easy Returns
Up to 7 days

1-Year Warranty
On All Products





  • Could it be controlled by a computer

    The Proaim Pan Tilt Head PT-SR is only controlled by a joystick controller included in it. It will not be controlled by a computer.

  • Can the Sr. Pan Tilt Head be moved by hand if i don\'t want to use the motor?

    Yes, the Proaim Senior Pan tilt head can be moved with hands but before this you have to disengage the motor gear to avoid any damage to the gears.

  • Can I mount DJI RS3 on P-A21-J?

    Yes, you can mount DJI RS3 on the Proaim Alphabet 21ft Jib Crane with the help of Proaim DJI-QR and P-QRG Quick Release systems.

  • What accessories required to mount DJI-RS2 gimbal on the Proaim Alphabet 21ft Jib Crane

    To use the Dji RS2 gimbal with the Proaim Alphabet 21ft Jib Crane, you'll need the Proaim Quick Release Plate P-QRG and the Proaim DJI-QR mount.
    Here are the links for your reference :
    P-QRG -https://www.flyfilms.in/products/proaim-quick-release-plate-for-hand-held-gimbals
    DJI-QR -https://www.flyfilms.in/products/flycam-quick-release-mount-for-ronin-m-mx

  • What is the exact dimension from the centre of the bolt between the wheels?

    The distance between one wheel to another is 80cm. Here is the complete dimension of Proaim Lineo Portable Video Camera Floor Dolly P-PRT-D:
    https://prnt.sc/tBwFkvMn0OFP

  • In this Lineo portable tripod dolly are the wheels replaceable with track wheels?

    Yes, the wheels of Proaim Lineo Portable Video Camera Floor Dolly P-PRT-D are replaceable with Track wheels. Here is the link for the compatible track wheels:
    https://www.flyfilms.in/products/proaim-track-wheel-set-for-proaim-portable-dolly?_pos=1&_sid=f42c143a8&_ss=r

  • If I will bye alphabet 21 crane with 3 axcis and after few months I can remove the dutch roll from the head and continue to work with 2 axcis head?

    Yes, the Dutch roll can be removed from the Proaim Spin-3 head and the head can be converted to 2-Axis head.

  • Hello, is screen includes in the crane packages ?

    The Proaim Camera Crane Packages does not include the monitors or screens.
