- User Manual
With Real Silky-Smooth Footage!

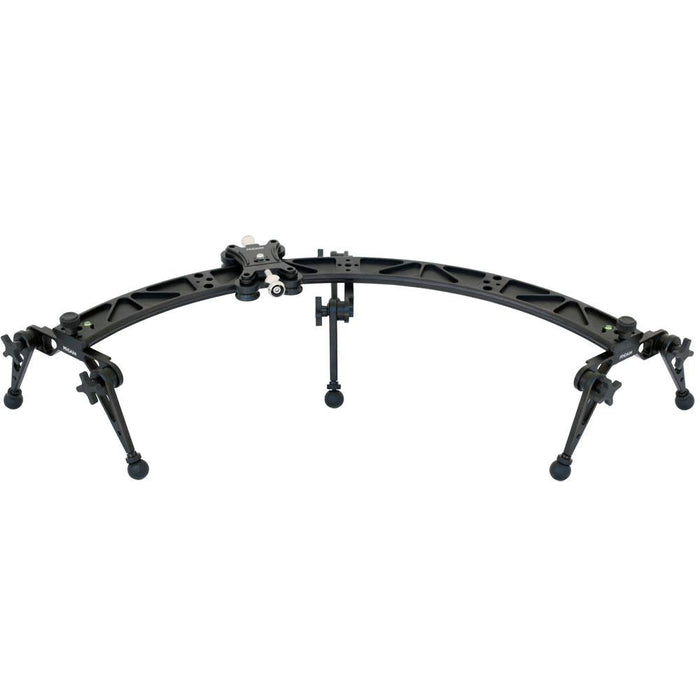

To Fulfill needs of the modern world of shooting with Straight camera sliders is not everytime’s requirement, it’s time for the change by adding a curved camera slider dolly in your tool box and give your shot compositions a jump start. Fully featured video slider with heavy - anodized aluminum construction, super-smooth glide rail, spirit level & tension adjustment, gives you the ability to create high-quality production shots without over-extending your budget. It gets attached directly to a tripod and may also be used stand-alone with the included feet.
"WHAT YOU SEE IS WHAT YOU GET
(Revised on 25-Mar-2017)
SINGLE SLIDER DUAL ACTION

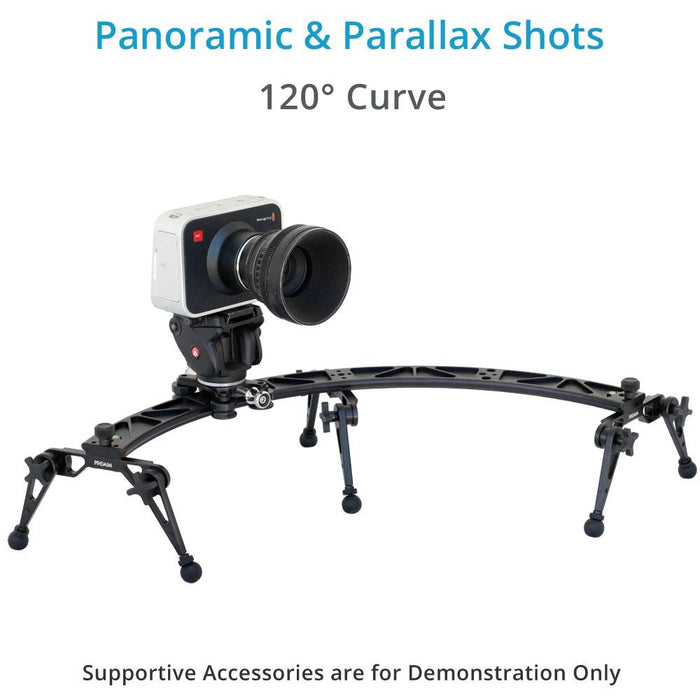

No need to setup two cameras for interview footage. Our one and only Proaim Curve -120 Curved Camera Slider smoothly captures both, the interviewer and subject at one go.
SMOOTHNESS WITH THE CURVE

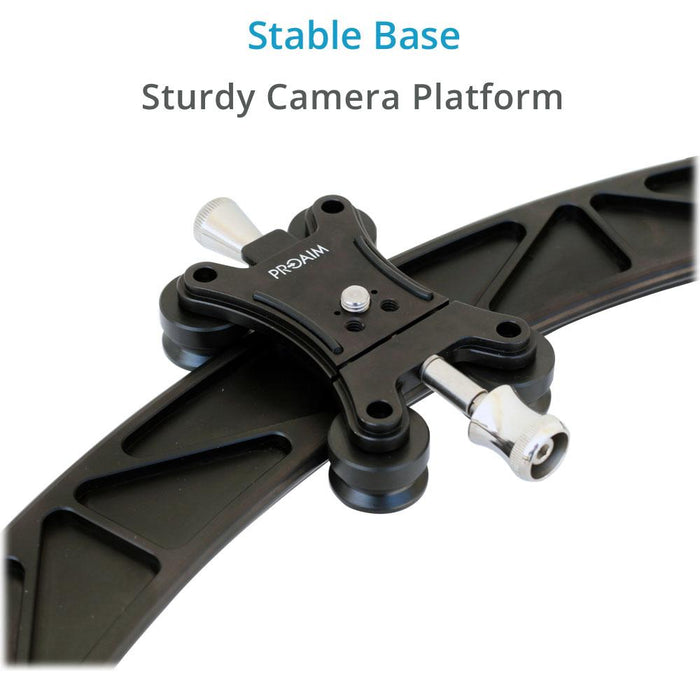

Most video sliders have their plate built in to the track. Our slider roller bearing plate sits on top of the track for quick removal and multiple set ups.
ADJUSTABLE & REMOVABLE LEGS

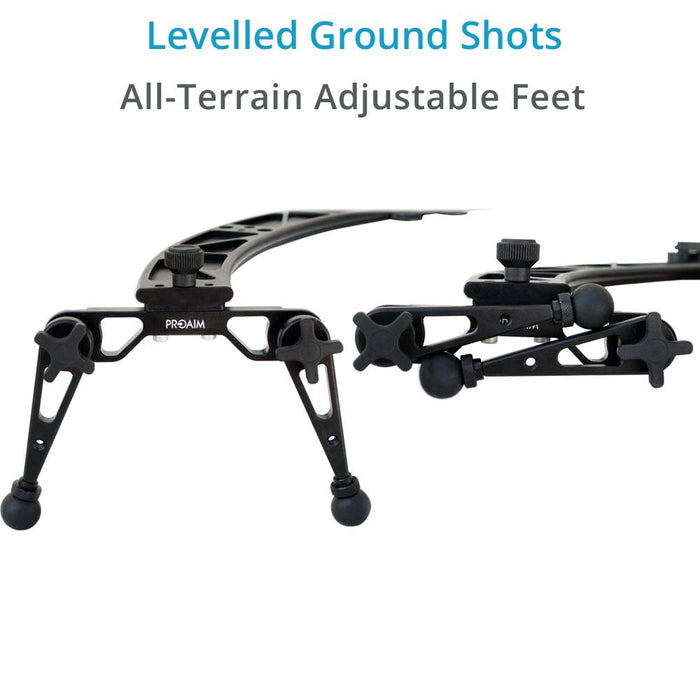

Fully adjustable and foldable leg design of the curve slider facilitates easy transportation.
ALSO AVAILABLE IN MOTORISED VERSION
The supportive accessories are for demonstration purpose only.
- Material Made: Aluminum Construction
- Camera Mounting Screw: 1/4"-20 & 3/8"-16
- Tripod Mounting Threads: 1/4"-20 & 3/8"-16
- Weight: 3kg / 6.6lb
- Weighing Capacity: 15kg / 33.0lb
- Running Track Length: 33.25 in. / 2.7 ft.
- Width: 60mm
- Curve: 120 Degree
- Inner Radius of 120 Degree Slider: 380mm
- Outer Radius of 120 Degree Slider: 440mm
- Proaim Curve-120 Curved Camera Slider (Revised on 25-Mar-2017)
- Bag Packing
Q&AAsk a Question
Will a fluid head fit on it?
Yes, the fluid head can be attached to the slider if the fluid head has ¼” or 3/8” mounting thread size. It will not fit on bowl heads.
Will it mount on tripod?
Yes, the Proaim Curve-120 can be easily attached with the tripod.
What are the bearings made of? Does it create sound during sliding?

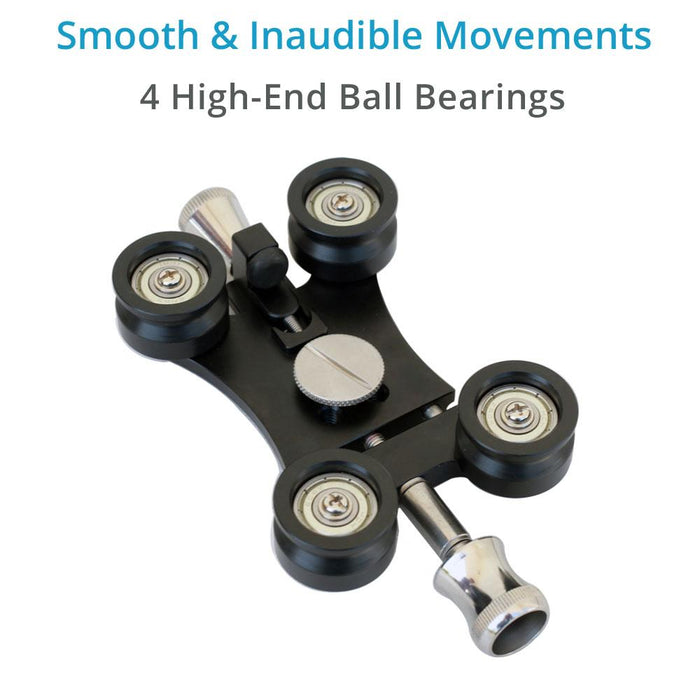

This slider has 4 high-end sealed bearings that allow smooth movement without any sound.
Does it come with lock for sliding?
Yes, this slider comes with strong carriage brake to lock the carriage in any place on the rails for static shots.
Are the legs adjustable?
Yes, the legs are adjustable and you can easily use it on uneven surface.
Will it work with blackmagic cinema camera?
Yes, it will work with the Blackmagic Cinema Camera as it is compatible with cameras having weight under 5kg.
Does it come in carry case?

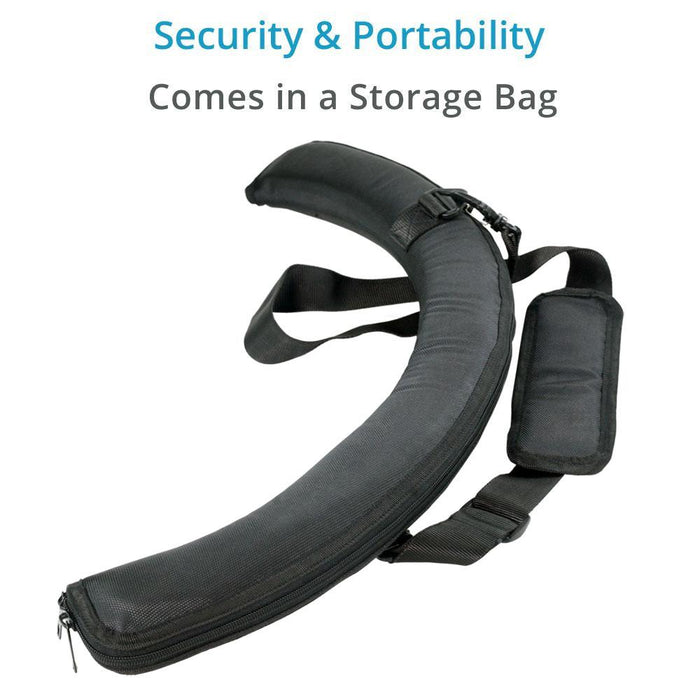

Yes, this slider comes in a packing bag for safe storage.
Does it come fully assembled?
Yes, it comes fully assembled. You just have to mount a camera on it and it is ready to use.
Is it easy and light weight to carry?
Yes, it is lightweight and easy to carry around.
What is the warranty?
We provide 1year warranty from the date of purchase. Items which are covered by the warranty period will be replaced at no cost to the customer. Replacement parts of the product will be provided at nominal cost (covering the cost price of the replacement parts only) to the customers after the Warranty Period has expired.
What is the minimum height setting of the Proaim Curve-120 Curved Camera Slider
The minimum height of the Proaim Curve-120 Curved Camera Slider from the ground is 85- 90mm.
