01.

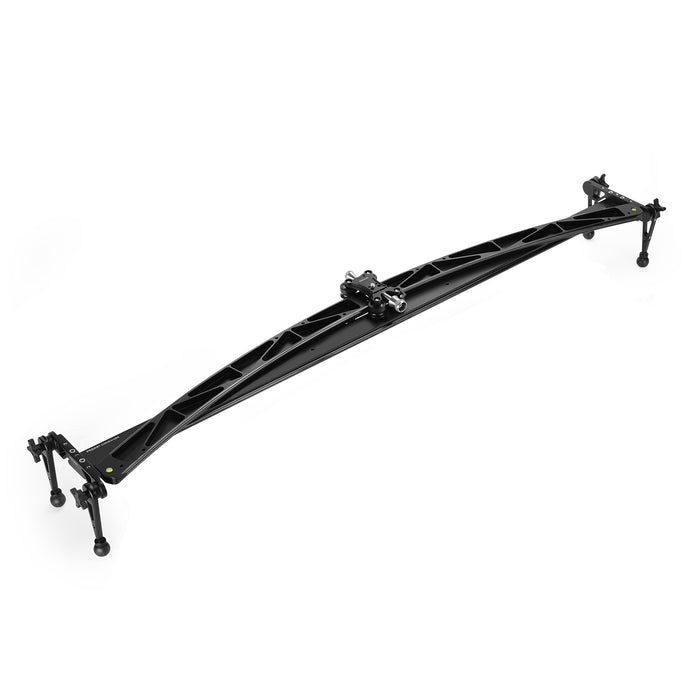

DUO TRACK SLIDER

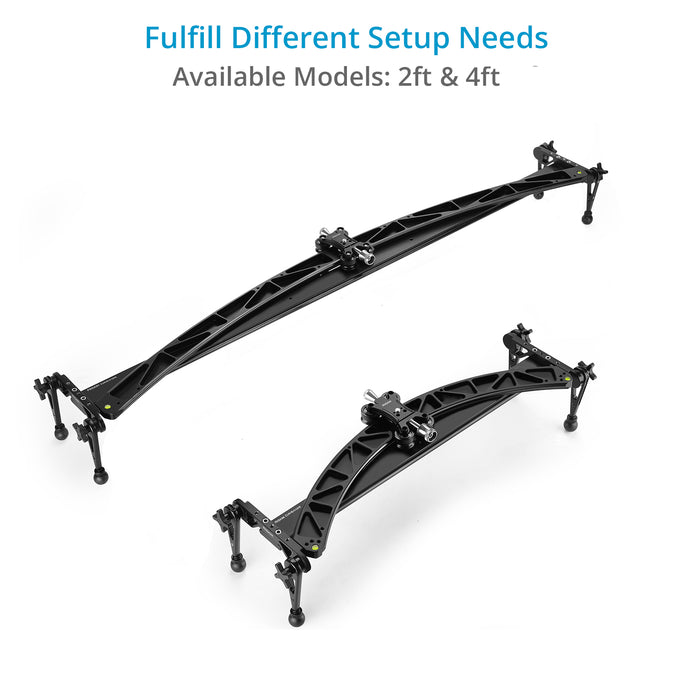

Now refine the elaborate art of capturing an extensive range of professional parabolic & linear shots with Proaim Curve-N-Line Camera Video Slider, which is available in 2 different lengths-2ft and 4ft.

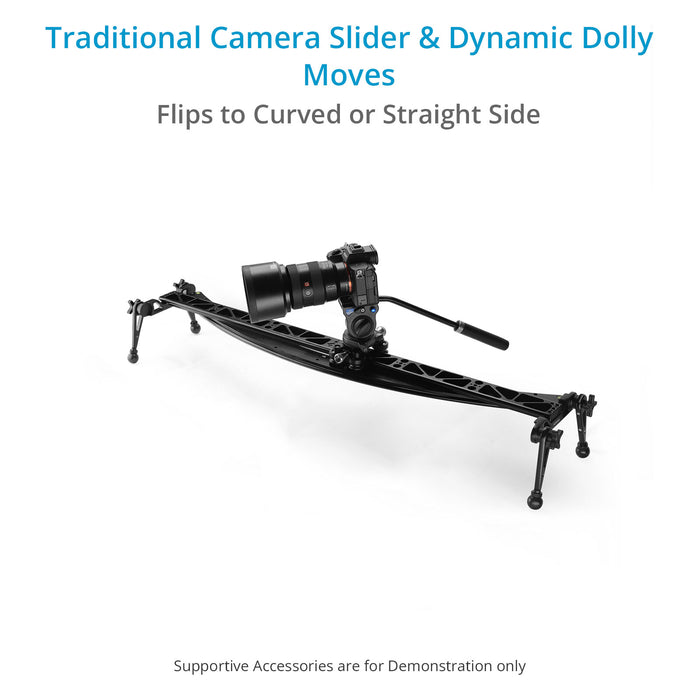

It is a dual track that combines straight and curved tracks in a single design, letting you achieve traditional camera slider moves as well as dynamic dolly moves by quickly flipping the slider.
Furthermore, it successfully lets you maintain the camera’s direction at the desired focal point, plus helps achieve optimally stable & highly consistent shots.
Meticulous high-grade CNC Aluminum build renders optimal support to heavy-duty cameras without compromising stability.

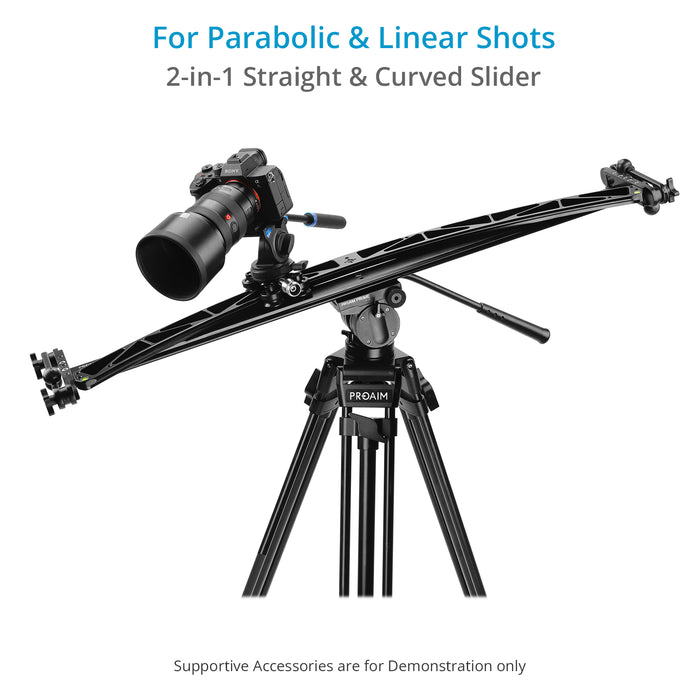

Straight & Parabolic Moves In One Slider With Duo Track!
Delivering Reliable & Consistent Motion On Every Shot!
02.
SMOOTH FUNCTIONING
Precisely designed, the wheely Slider carriage with a quick release mechanism provides a stable base to the camera and gets easily attached to straight and curved modes of the slider without removing the end feet.
The dual ball bearings on each wheel facilitate smooth and steady dolly & traditional movement when you manually slide your camera across.
The slider carriage has 1/4"-20 and 3/8"-16 mounting screws for attaching a camera, ball head, or tripod head.

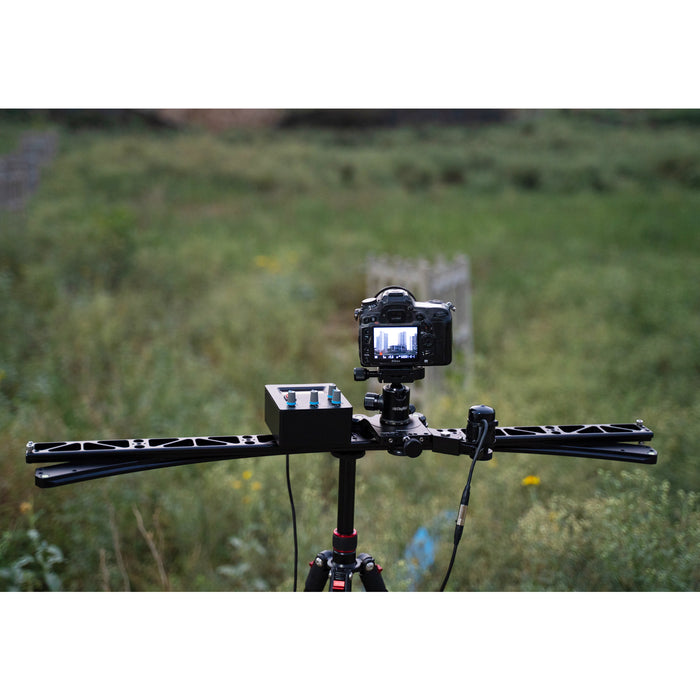

Additionally, you can incorporate the setup with the Proaim Motion Control System to power the Camera Video slider with automation, thus saving you an awful amount of time.
03.
ADAPTABLE DESIGN
The Camera Video Slider comes equipped with rotatory legs, which can seamlessly make a rotation of 360°, thus allowing you to switch between the duo sliders desirably.
Easy and independent adjustment of each leg comes in handy while shooting on uneven surfaces.
Besides this, they are also removable in case you only plan on using the slider tripod-mounted and want to travel lighter.
You can directly mount a tripod via 1/4"-20 and 3/8"-16 tripod mount threads on the bottom center of the slider.
And the Four bubble levels are at different locations for easily and precisely checking the balance.
IN-ACTION VIDEOS
SPECIFICATIONS
SL-CNL-2
Construction
High-Grade CNC Aluminum
Payload
30kg / 66lb
Mounting
1 x 1/4"‐20
1 x 3/8"‐16
Track Length
2’/ 60.9cm
Curve Radius
17.7"
Travel Angle
58°
Bubble Level
Yes
Track Height
1.5" / 3.8 cm (Folded)
Dimensions
Product Weight (Without Packing)
2kg / 4.4lb
Product Volumetric Weight (With Packing)
5.24kg / 11.55lb
SL-CNL-4
Construction
High-Grade CNC Aluminum
Payload
25kg / 55lb
Mounting
1 x 1/4"‐20
1 x 3/8"‐16
Track Length
4’/ 121.9cm
Curve Radius
67.3"
Travel Angle
58°
Bubble Level
Yes
Track Height
1.5" / 3.8 cm (Folded)
Dimensions
Product Weight (Without Packing)
3.08kg / 6.79lb
Product Volumetric Weight (With Packing)
8.6kg / 18.9lb
IN THE BOX
Proaim Curve-N-Line 2-way Camera Video Slider
Proaim Curve-N-Line 4-way Camera Video Slider

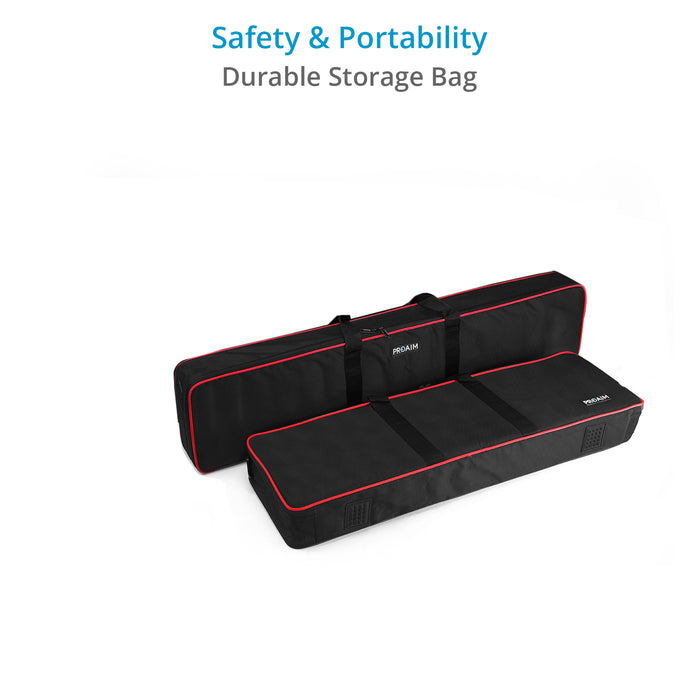

Storage Bag
USER MANUAL
Guaranteed Fast Delivery |
Quick and Efficient |
Easy Returns |
1-Year Warranty |
Q&A
Ask a Question-
What are the radius of the circles made with the curved side ?
We are selling Slider with different lengths i.e 2ft, 3ft, and 4ft
- Curve-N-Line Camera Video 2ft Slider(SL-CNL-2)The outer radius of the curve slider is 17.67 inchesThe inner radius of the curve slider is 16.05 inches-Curve-N-Line Camera Video 3ft Slider(SL-CNL-3):The outer radius of the curve slider is 38.32 inchesThe inner radius of the curve slider is 36.33 inches-Curve-N-Line Camera Video 4ft Slider(SL-CNL-4):Â The outer radius of the curve slider is 67.32 inchesThe inner radius of the curve slider is 65.35 inches -
Will the Proaim Curve-N-Line Camera Video Slider and Proaim Advanced Motion Control work with Canon XF400? Also, suggest which Tripod is compatible for the equipment above?
The weighing capacity of the slider on ground for manual operation is 25kg. However, while operating with a motion control system, the weighing depends upon the motor of the control system. So, the weighing capacity of the combination of slider and motion control system is 5kg. So, any camera can be used with this combination that weighs under 5kg.It can be mounted on a tripod that has 1/4"-20 & 3/8"-16 Mounting thread. It can also be mounted on a bowl tripod stand using the tripod head.
